AICI OS2 9/125 Armoured Tight Buffered Fibre Optic Cable Marine DNV-GL & ABS Approved

code: F1402

  • DNV-GL & ABS approved
  • Fully compliant to IEC
  • High speed data transmission
  • SHF1, SHF2 and SHF2-MUD NEK 606 sheaths
  • LSZH throughout
  • UV and Oil resistant
  • Flame Retardant
  • Weather Resistant
AICI fibre optic cable is armoured with a flexible steel braid for easy installation in restricted areas on rig and ships. Designed specifically for use offshore, AICI cable is tight buffered providing fast and easy termination without splicing. The AICI range of cables use marine grade sheath compounds in accordance with IEC 60092-359 enabling AICI to be used inside and outside reducing the need to change cable types. Designed for use on yachts, boats and larger commercial ships.

The AICI range of fibre optic cables are flame retardant to IEC 60332-3-22 Category A and 3rd party approved by DNV-GL & ABS ensuring quality and safety for a hazardous industry within the shipping and offshore sector.

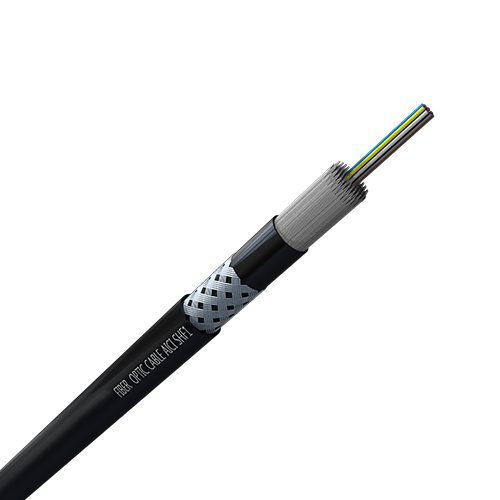

Image representative of product style, product supplied may vary.

Order by 4.30pm for delivery by

Code Description Approval No. Cores Fibre Grade Colour Sheath Downloads
FOS204AICI1
4 x OS2 Tight Buffered AICI LSZH SHF1 Sheath DNV- GL & ABS Approved
DNV-GL & ABS 4 OS2 Black SHF1 Datasheet Datasheet Get Quote
Description 4 x OS2 Tight Buffered AICI LSZH SHF1 Sheath DNV- GL & ABS Approved
Approval DNV-GL & ABS
No. Cores 4
Fibre Grade OS2
Colour Black
Sheath SHF1
Downloads AICI SHF1
Downloads Datasheet Datasheet
FOS204AICI2
4 x OS2 Tight Buffered AICI LSZH SHF2 Sheath DNV Approved
DNV-GL & ABS 4 OS2 Black SHF2 Get Quote
Description 4 x OS2 Tight Buffered AICI LSZH SHF2 Sheath DNV Approved
Approval DNV-GL & ABS
No. Cores 4
Fibre Grade OS2
Colour Black
Sheath SHF2
Downloads AICI SHF2
FOS204AICIM
4 x OS2 Tight Buffered AICI LSZH MUD Resistant Sheath DNV Approved
DNV-GL & ABS 4 OS2 Black MUD Get Quote
Description 4 x OS2 Tight Buffered AICI LSZH MUD Resistant Sheath DNV Approved
Approval DNV-GL & ABS
No. Cores 4
Fibre Grade OS2
Colour Black
Sheath MUD
Downloads AICI MUD
FOS206AICI1
6 x OS2 Tight Buffered AICI LSZH SHF1 Sheath DNV- GL & ABS Approved
DNV-GL & ABS 6 OS2 Black SHF1 Datasheet Get Quote
Description 6 x OS2 Tight Buffered AICI LSZH SHF1 Sheath DNV- GL & ABS Approved
Approval DNV-GL & ABS
No. Cores 6
Fibre Grade OS2
Colour Black
Sheath SHF1
Downloads AICI SHF1
Downloads Datasheet
FOS206AICI2
6 x OS2 Tight Buffered AICI LSZH SHF2 Sheath DNV Approved
DNV-GL & ABS 6 OS2 Black SHF2 Get Quote
Description 6 x OS2 Tight Buffered AICI LSZH SHF2 Sheath DNV Approved
Approval DNV-GL & ABS
No. Cores 6
Fibre Grade OS2
Colour Black
Sheath SHF2
Downloads AICI SHF2
FOS206AICIM
6 x OS2 Tight Buffered AICI LSZH MUD Resistant Sheath DNV Approved
DNV-GL & ABS 6 OS2 Black MUD Get Quote
Description 6 x OS2 Tight Buffered AICI LSZH MUD Resistant Sheath DNV Approved
Approval DNV-GL & ABS
No. Cores 6
Fibre Grade OS2
Colour Black
Sheath MUD
Downloads AICI MUD
FOS208AICI1
8 x OS2 Tight Buffered AICI LSZH SHF1 Sheath DNV- GL & ABS Approved
DNV-GL & ABS 8 OS2 Black SHF1 Datasheet Datasheet Get Quote
Description 8 x OS2 Tight Buffered AICI LSZH SHF1 Sheath DNV- GL & ABS Approved
Approval DNV-GL & ABS
No. Cores 8
Fibre Grade OS2
Colour Black
Sheath SHF1
Downloads AICI SHF1
Downloads Datasheet Datasheet
FOS208AICI2
8 x OS2 Tight Buffered AICI LSZH SHF2 Sheath DNV Approved
DNV-GL & ABS 8 OS2 Black SHF2 Get Quote
Description 8 x OS2 Tight Buffered AICI LSZH SHF2 Sheath DNV Approved
Approval DNV-GL & ABS
No. Cores 8
Fibre Grade OS2
Colour Black
Sheath SHF2
Downloads AICI SHF2
FOS208AICIM
8 x OS2 Tight Buffered AICI LSZH MUD Resistant Sheath DNV Approved
DNV-GL & ABS 8 OS2 Black MUD Get Quote
Description 8 x OS2 Tight Buffered AICI LSZH MUD Resistant Sheath DNV Approved
Approval DNV-GL & ABS
No. Cores 8
Fibre Grade OS2
Colour Black
Sheath MUD
Downloads AICI MUD
FOS212AICI1
12 x OS2 Tight Buffered AICI LSZH SHF1 Sheath DNV- GL & ABS Approved
DNV-GL & ABS 12 OS2 Black SHF1 Datasheet Datasheet Get Quote
Description 12 x OS2 Tight Buffered AICI LSZH SHF1 Sheath DNV- GL & ABS Approved
Approval DNV-GL & ABS
No. Cores 12
Fibre Grade OS2
Colour Black
Sheath SHF1
Downloads AICI SHF1
Downloads Datasheet Datasheet
FOS212AICI2
12 x OS2 Tight Buffered AICI LSZH SHF2 Sheath DNV Approved
DNV-GL & ABS 12 OS2 Black SHF2 Get Quote
Description 12 x OS2 Tight Buffered AICI LSZH SHF2 Sheath DNV Approved
Approval DNV-GL & ABS
No. Cores 12
Fibre Grade OS2
Colour Black
Sheath SHF2
Downloads AICI SHF2
FOS212AICIM
12 x OS2 Tight Buffered AICI LSZH MUD Resistant Sheath DNV Approved
DNV-GL & ABS 12 OS2 Black MUD Get Quote
Description 12 x OS2 Tight Buffered AICI LSZH MUD Resistant Sheath DNV Approved
Approval DNV-GL & ABS
No. Cores 12
Fibre Grade OS2
Colour Black
Sheath MUD
Downloads AICI MUD
FOS224AICI1
24 x OS2 Tight Buffered AICI LSZH SHF1 Sheath DNV- GL & ABS Approved
DNV-GL & ABS 24 OS2 Black SHF1 Datasheet Datasheet Get Quote
Description 24 x OS2 Tight Buffered AICI LSZH SHF1 Sheath DNV- GL & ABS Approved
Approval DNV-GL & ABS
No. Cores 24
Fibre Grade OS2
Colour Black
Sheath SHF1
Downloads AICI SHF1
Downloads Datasheet Datasheet
FOS224AICI2
24 x OS2 Tight Buffered AICI LSZH SHF2 Sheath DNV Approved
DNV-GL & ABS 24 OS2 Black SHF2 Get Quote
Description 24 x OS2 Tight Buffered AICI LSZH SHF2 Sheath DNV Approved
Approval DNV-GL & ABS
No. Cores 24
Fibre Grade OS2
Colour Black
Sheath SHF2
Downloads AICI SHF2
FOS224AICIM
24 x OS2 Tight Buffered AICI LSZH MUD Resistant Sheath DNV Approved
DNV-GL & ABS 24 OS2 Black MUD Get Quote
Description 24 x OS2 Tight Buffered AICI LSZH MUD Resistant Sheath DNV Approved
Approval DNV-GL & ABS
No. Cores 24
Fibre Grade OS2
Colour Black
Sheath MUD
Downloads AICI MUD
