Alternative to Belden 9502NH LSHF Data Cable - CPR Class B2ca s1a, d1, a1
Alternative to Belden 9502NH LSHF Data Cable - CPR Class B2ca s1a, d1, a1

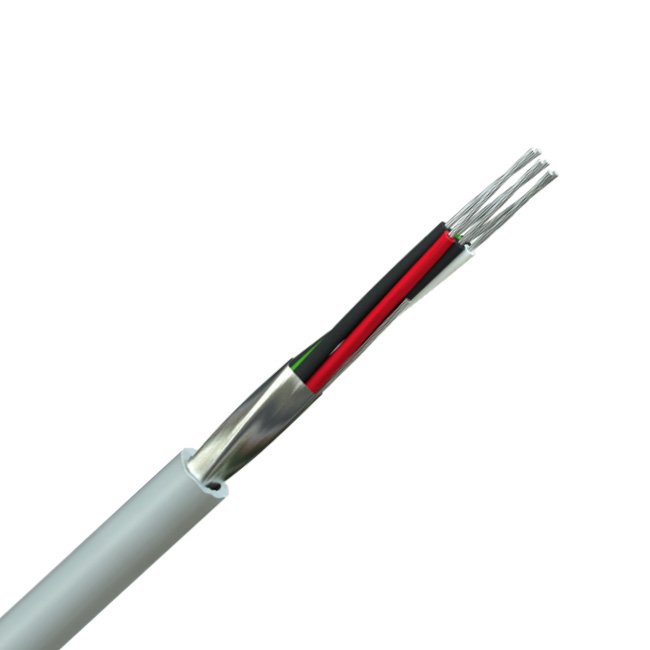

This high-quality data communication cable is designed as a reliable alternative to Belden 9502, offering dependable signal transmission for industrial control, instrumentation, and low-voltage communication applications. Constructed with two pairs of 24AWG stranded tinned copper conductors, the cable provides excellent flexibility and long-term durability.
- Alternative to Belden 9502
- CPR Class: B2ca-s1a,d1,a1 (EN 50575:2014+A1:2016)
- 2 Pair, 24AWG Tinned Copper Conductors
- 100% Aluminium Foil Screen for EMI Protection
- Low Smoke Halogen Free (LSHF) Construction
| Electrical Characteristics | |
|---|---|
| Nominal Conductor Resistance @ 20°C | < 86 Ω/km |
| Capacitance (Core to Core) | 75 pF/m (Nom.) |
| Capacitance (Core to Screen) | 140 pF/m (Nom.) |
| Voltage Rating | 450/750 V (Applies to CE marked FSC branded stock only) |
| Test Voltage | 2.5 kV for 5 minutes |
| Physical Characteristics | |
| Overall Diameter | 5.7 mm (Nom.) |
| Minimum Bend Radius | 10 × OD |
| Temperature Rating | -30°C to +90°C |
| Weight | 32 kg/km |
| Standards & Compliance | |
| Flame Retardant | BS EN 60332-1-2 |
| Low Smoke Generation | BS EN 61034-2 |
| Halogen Gas Emission | BS EN 60754-1 & 2 |
| RoHS Compliant | Yes |
| Weather Resistance | Tested to ISO 4892-3 |
| CE Compliant | LVD (2014/35/EU), CPR (305/2011) |
| CPR Classification | B2ca-s1a,d1,a1 (EN 50575:2014+A1:2016) |
