Alternative to Belden 9506NH LSHF Data Cable - CPR Class B2ca s1a, d1, a1
Alternative to Belden 9506NH LSHF Data Cable - CPR Class B2ca s1a, d1, a1

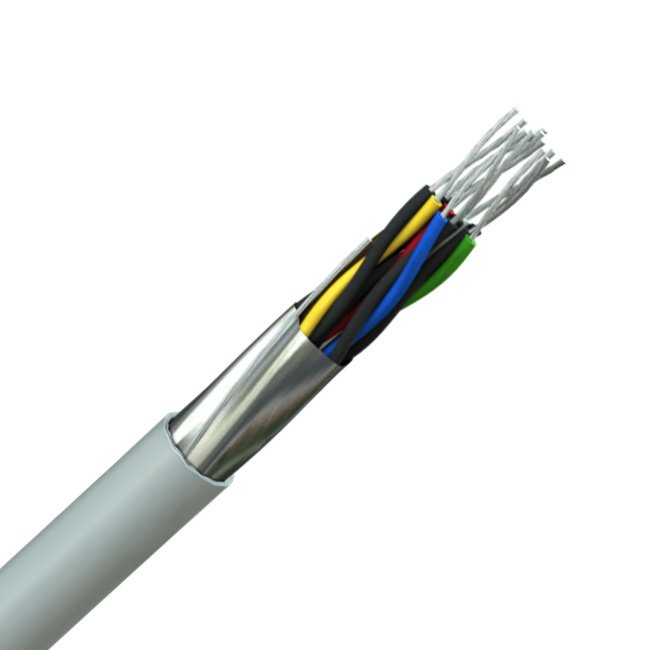

This overall screened multipair data cable is designed as a reliable alternative to Belden 9506 and is widely used in RS232 communication systems, computer connections, point-of-sale equipment, and industrial control applications. Featuring six twisted pairs of 24AWG stranded tinned copper conductors, the cable provides dependable signal transmission for a wide range of general-purpose data communication requirements.
- Alternative to Belden 9506
- CPR Class: B2ca-s1a,d1,a1 (EN 50575:2014+A1:2016)
- 6 Pair, 24AWG Tinned Copper Conductors
- Suitable for RS232, Control Systems & Data Applications
- 100% Aluminium Foil Screen for EMI Protection
| Electrical Characteristics | |
|---|---|
| Nominal Conductor Resistance @ 20°C | < 86 Ω/km |
| Capacitance (Core to Core) | 75 pF/m (Nom.) |
| Capacitance (Core to Screen) | 120 pF/m (Nom.) |
| Voltage Rating | 450/750 V (Applies to CE marked FSC branded stock only) |
| Test Voltage | 2.5 kV for 5 minutes |
| Physical Characteristics | |
| Overall Diameter | 7.2 mm (Nom.) |
| Minimum Bend Radius | 10 × OD |
| Temperature Rating | -30°C to +70°C |
| Weight | 72 kg/km |
| Standards & Compliance | |
| Flame Retardant | BS EN 60332-1-2 |
| Low Smoke Generation | BS EN 61034-2 |
| Halogen Gas Emission | BS EN 60754-1 & 2 |
| RoHS Compliant | Yes |
| Weather Resistance | Tested to ISO 4892-3 |
| CE Compliant | LVD (2014/35/EU), CPR (305/2011) |
| CPR Classification | B2ca-s1a,d1,a1 (EN 50575:2014+A1:2016) |
