Alternative to Belden 9534NH LSHF Data Cable - CPR Class B2ca s1a, d1, a1
Alternative to Belden 9534NH LSHF Data Cable - CPR Class B2ca s1a, d1, a1

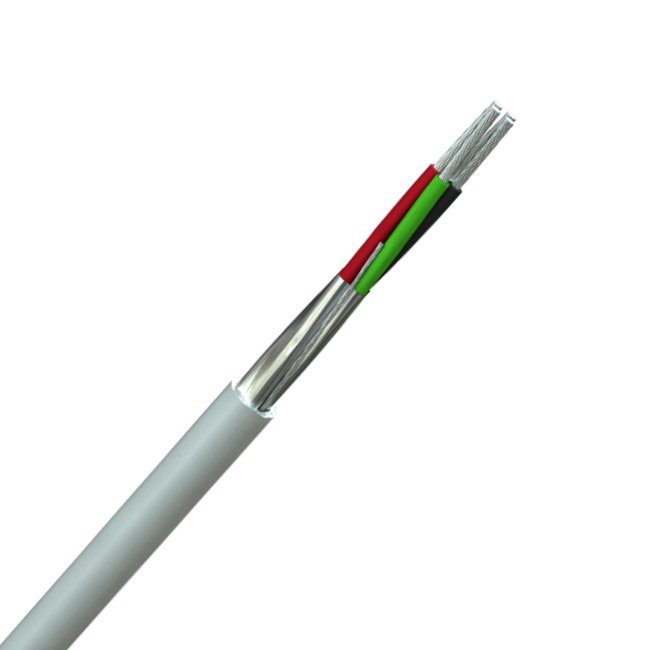

This overall screened multicore data cable is designed as a reliable alternative to Belden 9534 and is suitable for RS232 communication, instrumentation circuits, and audio applications where balanced lines are not required. Constructed with four 24AWG stranded tinned copper conductors, the cable provides dependable signal transmission and excellent flexibility for installation.
- Alternative to Belden 9534
- CPR Class: B2ca-s1a,d1,a1 (EN 50575:2014+A1:2016)
- 4 Core, 24AWG Tinned Copper Conductors
- Suitable for RS232, Instrumentation & Audio Applications
- 100% Aluminium Foil Screen for EMI Protection
| Electrical Characteristics | |
|---|---|
| Nominal Conductor Resistance | < 83 Ω/km |
| Insulation Resistance | > 200 MΩ·km |
| Capacitance (Core to Core) | 105 pF/m (Nom.) |
| Capacitance (Core to Screen) | 190 pF/m (Nom.) |
| Voltage Rating | 450/750 V (Applies to CE marked FSC branded stock only) |
| Test Voltage | 2.5 kV for 5 minutes |
| Physical Characteristics | |
| Overall Diameter | 5.1 mm (Nom.) |
| Minimum Bend Radius | 10 × OD |
| Temperature Rating | -30°C to +90°C |
| Weight | 38 kg/km |
| Standards & Compliance | |
| Flame Retardant | BS EN 60332-1-2 |
| Low Smoke Generation | BS EN 61034-2 |
| Halogen Gas Emission | BS EN 60754-1 & 2 |
| RoHS Compliant | Yes |
| Weather Resistance | Tested to ISO 4892-3 |
| CE Compliant | LVD (2014/35/EU), CPR (305/2011) |
| CPR Classification | B2ca-s1a,d1,a1 (EN 50575:2014+A1:2016) |
