LiYCY DIN 47100 Screened Multicore Colour Coded Cable

LiYCY has a tinned copper wire braid screen, providing protection from electromagnetic interference (EMI) and reducing electromagnetic radiation (EMR). This can be important when trying to ensure electromagnetic compatibility (EMC).

These cables are also available unscreened type LiYY with part numbers starting 300; or with the cores twisted into pairs and overall screens known as LiYCY-TP, part numbers starting 325; or twisted pairs without a screen LiYY-TP - part numbers starting 305.

For Low Smoke Halogen Free types, please see the LF-315 & LF-329 range.

CPR-Compliant options are available for this cable and are indicated in the product table. For the latest information on CPR for Cables, you can visit our dedicated CPR Explained web page. We have created a series of short CPR videos to break down all the significant areas and have updated our 'CPR for Cables' guide, available for you to download.

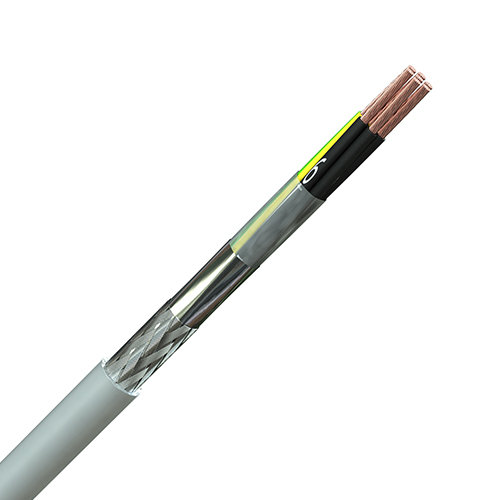

Image representative of product style, product supplied may vary.

  • CPR-Compliant options
  • Versatile, flexible control cable
  • Wide range of sizes and core counts
  • Tinned copper wire braid screen, providing protection from electromagnetic interference (EMI)
  • Highly flexible

Fine copper wire strands to IEC 60228.
PVC insulation number coded.
Cores twisted together with overall polyester tape and tinned copper wire braid.
Grey PVC outer sheath.
Voltage Rating:
0.14mm² - 0.34mm²:
Working: 250V
Test: 1000V
Temperature Rating:
Static: -20°C to +80°C
Flexing: -5°C to +70°C
Minimum Bending Radius:
Fixed: 6 x cable diameter
Flexing: 15 x cable diameter

Order by 4.30pm for delivery by

Code Description Cores mm² Colour CPR Downloads Pack Size QTY Price
32000101F
1 x 0.14mm² LiYCY PVC Screened Multicore Grey DIN 47100 Colour Code
1 0.14 Grey - Cut to Length Get Quote
Pack Size Cut to Length
Cores 1
mm² 0.14
Colour Grey
CPR -
32000102F
2 x 0.14mm² LiYCY PVC Screened Multicore Grey DIN 47100 Colour Code
2 0.14 Grey - Cut to Length Get Quote
Pack Size Cut to Length
Cores 2
mm² 0.14
Colour Grey
CPR -
32000103F-E00
3 x 0.14mm² LiYCY PVC Screened Multicore Grey DIN 47100 Colour Code
3 0.14 Grey Eca Cut to Length Get Quote
Pack Size Cut to Length
Cores 3
mm² 0.14
Colour Grey
CPR Eca
32000104F
4 x 0.14mm² LiYCY PVC Screened Multicore Grey DIN 47100 Colour Code
4 0.14 Grey - Cut to Length Get Quote
Pack Size Cut to Length
Cores 4
mm² 0.14
Colour Grey
CPR -
32000105F-E00
5 x 0.14mm² LiYCY PVC Screened Multicore Grey DIN 47100 Colour Code
5 0.14 Grey Eca Cut to Length Get Quote
Pack Size Cut to Length
Cores 5
mm² 0.14
Colour Grey
CPR Eca
32000106F
6 x 0.14mm² LiYCY PVC Screened Multicore Grey DIN 47100 Colour Code
6 0.14 Grey - Cut to Length Get Quote
Pack Size Cut to Length
Cores 6
mm² 0.14
Colour Grey
CPR -
32000107F-E00
7 x 0.14mm² LiYCY PVC Screened Multicore Grey DIN 47100 Colour Code
7 0.14 Grey Eca Cut to Length Get Quote
Pack Size Cut to Length
Cores 7
mm² 0.14
Colour Grey
CPR Eca
32000108F
8 x 0.14mm² LiYCY PVC Screened Multicore Grey DIN 47100 Colour Code
8 0.14 Grey - Cut to Length Get Quote
Pack Size Cut to Length
Cores 8
mm² 0.14
Colour Grey
CPR -
32000110F
10 x 0.14mm² LiYCY PVC Screened Multicore Grey DIN 47100 Colour Code
10 0.14 Grey - Cut to Length Get Quote
Pack Size Cut to Length
Cores 10
mm² 0.14
Colour Grey
CPR -
32000112F
12 x 0.14mm² LiYCY PVC Screened Multicore Grey DIN 47100 Colour Code
12 0.14 Grey - Cut to Length Get Quote
Pack Size Cut to Length
Cores 12
mm² 0.14
Colour Grey
CPR -
32000114F
14 x 0.14mm² LiYCY PVC Screened Multicore Grey DIN 47100 Colour Code
14 0.14 Grey - Cut to Length Get Quote
Pack Size Cut to Length
Cores 14
mm² 0.14
Colour Grey
CPR -
32000116F-E00
16 x 0.14mm² LiYCY PVC Screened Multicore Grey DIN 47100 Colour Code
16 0.14 Grey Eca Cut to Length Get Quote
Pack Size Cut to Length
Cores 16
mm² 0.14
Colour Grey
CPR Eca
32000118F
18 x 0.14mm² LiYCY PVC Screened Multicore Grey DIN 47100 Colour Code
18 0.14 Grey - Cut to Length Get Quote
Pack Size Cut to Length
Cores 18
mm² 0.14
Colour Grey
CPR -
32000121F
21 x 0.14mm² LiYCY PVC Screened Multicore Grey DIN 47100 Colour Code
21 0.14 Grey - Cut to Length Get Quote
Pack Size Cut to Length
Cores 21
mm² 0.14
Colour Grey
CPR -
32000124F
24 x 0.14mm² LiYCY PVC Screened Multicore Grey DIN 47100 Colour Code
24 0.14 Grey - Cut to Length Get Quote
Pack Size Cut to Length
Cores 24
mm² 0.14
Colour Grey
CPR -
32000125F
25 x 0.14mm² LiYCY PVC Screened Multicore Grey DIN 47100 Colour Code
25 0.14 Grey - Cut to Length Get Quote
Pack Size Cut to Length
Cores 25
mm² 0.14
Colour Grey
CPR -
32000127F
27 x 0.14mm² LiYCY PVC Screened Multicore Grey DIN 47100 Colour Code
27 0.14 Grey - Cut to Length Get Quote
Pack Size Cut to Length
Cores 27
mm² 0.14
Colour Grey
CPR -
32000130F
30 x 0.14mm² LiYCY PVC Screened Multicore Grey DIN 47100 Colour Code
30 0.14 Grey - Cut to Length Get Quote
Pack Size Cut to Length
Cores 30
mm² 0.14
Colour Grey
CPR -
32000136F
36 x 0.14mm² LiYCY PVC Screened Multicore Grey DIN 47100 Colour Code
36 0.14 Grey - Cut to Length Get Quote
Pack Size Cut to Length
Cores 36
mm² 0.14
Colour Grey
CPR -
32000140F
40 x 0.14mm² LiYCY PVC Screened Multicore Grey DIN 47100 Colour Code
40 0.14 Grey - Cut to Length Get Quote
Pack Size Cut to Length
Cores 40
mm² 0.14
Colour Grey
CPR -
32000144F
44 x 0.14mm² LiYCY PVC Screened Multicore Grey DIN 47100 Colour Code
44 0.14 Grey - Cut to Length Get Quote
Pack Size Cut to Length
Cores 44
mm² 0.14
Colour Grey
CPR -
32000152F
52 x 0.14mm² LiYCY PVC Screened Multicore Grey DIN 47100 Colour Code
52 0.14 Grey - Cut to Length Get Quote
Pack Size Cut to Length
Cores 52
mm² 0.14
Colour Grey
CPR -
32000161F-E00
61 x 0.14mm² LiYCY PVC Screened Multicore Grey DIN 47100 Colour Code
61 0.14 Grey Eca Cut to Length Get Quote
Pack Size Cut to Length
Cores 61
mm² 0.14
Colour Grey
CPR Eca
32000201F
1 x 0.25mm² LiYCY PVC Screened Multicore Grey DIN 47100 Colour Code
1 0.25 Grey - Cut to Length Get Quote
Pack Size Cut to Length
Cores 1
mm² 0.25
Colour Grey
CPR -
32000202F-E00
2 x 0.25mm² LiYCY PVC Screened Multicore Grey DIN 47100 Colour Code
2 0.25 Grey Eca Cut to Length Get Quote
Pack Size Cut to Length
Cores 2
mm² 0.25
Colour Grey
CPR Eca
32000203F-E00
3 x 0.25mm² LiYCY PVC Screened Multicore Grey DIN 47100 Colour Code
3 0.25 Grey Eca Cut to Length Get Quote
Pack Size Cut to Length
Cores 3
mm² 0.25
Colour Grey
CPR Eca
32000204F-E00
4 x 0.25mm² LiYCY PVC Screened Multicore Grey DIN 47100 Colour Code
4 0.25 Grey Eca Cut to Length Get Quote
Pack Size Cut to Length
Cores 4
mm² 0.25
Colour Grey
CPR Eca
32000205F-E00
5 x 0.25mm² LiYCY PVC Screened Multicore Grey DIN 47100 Colour Code
5 0.25 Grey Eca Cut to Length Get Quote
Pack Size Cut to Length
Cores 5
mm² 0.25
Colour Grey
CPR Eca
32000206F
6 x 0.25mm² LiYCY PVC Screened Multicore Grey DIN 47100 Colour Code
6 0.25 Grey - Cut to Length Get Quote
Pack Size Cut to Length
Cores 6
mm² 0.25
Colour Grey
CPR -
32000207F-E00
7 x 0.25mm² LiYCY PVC Screened Multicore Grey DIN 47100 Colour Code
7 0.25 Grey Eca Cut to Length Get Quote
Pack Size Cut to Length
Cores 7
mm² 0.25
Colour Grey
CPR Eca
32000208F
8 x 0.25mm² LiYCY PVC Screened Multicore Grey DIN 47100 Colour Code
8 0.25 Grey - Cut to Length Get Quote
Pack Size Cut to Length
Cores 8
mm² 0.25
Colour Grey
CPR -
32000210F-E00
10 x 0.25mm² LiYCY PVC Screened Multicore Grey DIN 47100 Colour Code
10 0.25 Grey Eca Cut to Length Get Quote
Pack Size Cut to Length
Cores 10
mm² 0.25
Colour Grey
CPR Eca
32000212F-E00
12 x 0.25mm² LiYCY PVC Screened Multicore Grey DIN 47100 Colour Code
12 0.25 Grey Eca Cut to Length Get Quote
Pack Size Cut to Length
Cores 12
mm² 0.25
Colour Grey
CPR Eca
32000214F
14 x 0.25mm² LiYCY PVC Screened Multicore Grey DIN 47100 Colour Code
14 0.25 Grey - Cut to Length Get Quote
Pack Size Cut to Length
Cores 14
mm² 0.25
Colour Grey
CPR -
32000216F-E00
16 x 0.25mm² LiYCY PVC Screened Multicore Grey DIN 47100 Colour Code
16 0.25 Grey Eca Cut to Length Get Quote
Pack Size Cut to Length
Cores 16
mm² 0.25
Colour Grey
CPR Eca
32000218F-E00
18 x 0.25mm² LiYCY PVC Screened Multicore Grey DIN 47100 Colour Code
18 0.25 Grey Eca Cut to Length Get Quote
Pack Size Cut to Length
Cores 18
mm² 0.25
Colour Grey
CPR Eca
32000221F
21 x 0.25mm² LiYCY PVC Screened Multicore Grey DIN 47100 Colour Code
21 0.25 Grey - Cut to Length Get Quote
Pack Size Cut to Length
Cores 21
mm² 0.25
Colour Grey
CPR -
32000224F
24 x 0.25mm² LiYCY PVC Screened Multicore Grey DIN 47100 Colour Code
24 0.25 Grey - Cut to Length Get Quote
Pack Size Cut to Length
Cores 24
mm² 0.25
Colour Grey
CPR -
32000225F
25 x 0.25mm² LiYCY PVC Screened Multicore Grey DIN 47100 Colour Code
25 0.25 Grey - Cut to Length Get Quote
Pack Size Cut to Length
Cores 25
mm² 0.25
Colour Grey
CPR -
32000227F
27 x 0.25mm² LiYCY PVC Screened Multicore Grey DIN 47100 Colour Code
27 0.25 Grey - Cut to Length Get Quote
Pack Size Cut to Length
Cores 27
mm² 0.25
Colour Grey
CPR -
32000230F
30 x 0.25mm² LiYCY PVC Screened Multicore Grey DIN 47100 Colour Code
30 0.25 Grey - Cut to Length Get Quote
Pack Size Cut to Length
Cores 30
mm² 0.25
Colour Grey
CPR -
32000236F-E00
36 x 0.25mm² LiYCY PVC Screened Multicore Grey DIN 47100 Colour Code
36 0.25 Grey Eca Cut to Length Get Quote
Pack Size Cut to Length
Cores 36
mm² 0.25
Colour Grey
CPR Eca
32000240F
40 x 0.25mm² LiYCY PVC Screened Multicore Grey DIN 47100 Colour Code
40 0.25 Grey - Cut to Length Get Quote
Pack Size Cut to Length
Cores 40
mm² 0.25
Colour Grey
CPR -
32000244F
44 x 0.25mm² LiYCY PVC Screened Multicore Grey DIN 47100 Colour Code
44 0.25 Grey - Cut to Length Get Quote
Pack Size Cut to Length
Cores 44
mm² 0.25
Colour Grey
CPR -
32000252F
52 x 0.25mm² LiYCY PVC Screened Multicore Grey DIN 47100 Colour Code
52 0.25 Grey - Cut to Length Get Quote
Pack Size Cut to Length
Cores 52
mm² 0.25
Colour Grey
CPR -
32000261F
61 x 0.25mm² LiYCY PVC Screened Multicore Grey DIN 47100 Colour Code
61 0.25 Grey - Cut to Length Get Quote
Pack Size Cut to Length
Cores 61
mm² 0.25
Colour Grey
CPR -
32000302F
2 x 0.34mm² LiYCY PVC Screened Multicore Grey DIN 47100 Colour Code
2 0.34 Grey - Cut to Length Get Quote
Pack Size Cut to Length
Cores 2
mm² 0.34
Colour Grey
CPR -
32000303F-E00
3 x 0.34mm² LiYCY PVC Screened Multicore Grey DIN 47100 Colour Code
3 0.34 Grey Eca Cut to Length Get Quote
Pack Size Cut to Length
Cores 3
mm² 0.34
Colour Grey
CPR Eca
32000304F-E00
4 x 0.34mm² LiYCY PVC Screened Multicore Grey DIN 47100 Colour Code
4 0.34 Grey Eca Cut to Length Get Quote
Pack Size Cut to Length
Cores 4
mm² 0.34
Colour Grey
CPR Eca
32000305F
5 x 0.34mm² LiYCY PVC Screened Multicore Grey DIN 47100 Colour Code
5 0.34 Grey - Cut to Length Get Quote
Pack Size Cut to Length
Cores 5
mm² 0.34
Colour Grey
CPR -
32000306F-E00
6 x 0.34mm² LiYCY PVC Screened Multicore Grey DIN 47100 Colour Code
6 0.34 Grey Eca Cut to Length Get Quote
Pack Size Cut to Length
Cores 6
mm² 0.34
Colour Grey
CPR Eca
32000307F
7 x 0.34mm² LiYCY PVC Screened Multicore Grey DIN 47100 Colour Code
7 0.34 Grey - Cut to Length Get Quote
Pack Size Cut to Length
Cores 7
mm² 0.34
Colour Grey
CPR -
32000308F
8 x 0.34mm² LiYCY PVC Screened Multicore Grey DIN 47100 Colour Code
8 0.34 Grey - Cut to Length Get Quote
Pack Size Cut to Length
Cores 8
mm² 0.34
Colour Grey
CPR -
32000310F-E00
10 x 0.34mm² LiYCY PVC Screened Multicore Grey DIN 47100 Colour Code
10 0.34 Grey Eca Cut to Length Get Quote
Pack Size Cut to Length
Cores 10
mm² 0.34
Colour Grey
CPR Eca
32000312F-E00
12 x 0.34mm² LiYCY PVC Screened Multicore Grey DIN 47100 Colour Code
12 0.34 Grey Eca Cut to Length Get Quote
Pack Size Cut to Length
Cores 12
mm² 0.34
Colour Grey
CPR Eca
32000314F
12 x 0.34mm² LiYCY PVC Screened Multicore Grey DIN 47100 Colour Code
14 0.34 Grey - Cut to Length Get Quote
Pack Size Cut to Length
Cores 14
mm² 0.34
Colour Grey
CPR -
32000316F-E00
16 x 0.34mm² LiYCY PVC Screened Multicore Grey DIN 47100 Colour Code
16 0.34 Grey Eca Cut to Length Get Quote
Pack Size Cut to Length
Cores 16
mm² 0.34
Colour Grey
CPR Eca
32000318F
18 x 0.34mm² LiYCY PVC Screened Multicore Grey DIN 47100 Colour Code
18 0.34 Grey - Cut to Length Get Quote
Pack Size Cut to Length
Cores 18
mm² 0.34
Colour Grey
CPR -
32000321F
21 x 0.34mm² LiYCY PVC Screened Multicore Grey DIN 47100 Colour Code
21 0.34 Grey - Cut to Length Get Quote
Pack Size Cut to Length
Cores 21
mm² 0.34
Colour Grey
CPR -
32000325F
25 x 0.34mm² LiYCY PVC Screened Multicore Grey DIN 47100 Colour Code
25 0.34 Grey - Cut to Length Get Quote
Pack Size Cut to Length
Cores 25
mm² 0.34
Colour Grey
CPR -
32000327F
27 x 0.34mm² LiYCY PVC Screened Multicore Grey DIN 47100 Colour Code
27 0.34 Grey - Cut to Length Get Quote
Pack Size Cut to Length
Cores 27
mm² 0.34
Colour Grey
CPR -
32000330F
30 x 0.34mm² LiYCY PVC Screened Multicore Grey DIN 47100 Colour Code
30 0.34 Grey - Cut to Length Get Quote
Pack Size Cut to Length
Cores 30
mm² 0.34
Colour Grey
CPR -
32000336F-E00
36 x 0.34mm² LiYCY PVC Screened Multicore Grey DIN 47100 Colour Code
36 0.34 Grey Eca Cut to Length Get Quote
Pack Size Cut to Length
Cores 36
mm² 0.34
Colour Grey
CPR Eca
32000340F
40 x 0.34mm² LiYCY PVC Screened Multicore Grey DIN 47100 Colour Code
40 0.34 Grey - Cut to Length Get Quote
Pack Size Cut to Length
Cores 40
mm² 0.34
Colour Grey
CPR -
32000352F-E00
52 x 0.34mm² LiYCY PVC Screened Multicore Grey DIN 47100 Colour Code
52 0.34 Grey Eca Cut to Length Get Quote
Pack Size Cut to Length
Cores 52
mm² 0.34
Colour Grey
CPR Eca
32000361F
61 x 0.34mm² LiYCY PVC Screened Multicore Grey DIN 47100 Colour Code
61 0.34 Grey - Cut to Length Get Quote
Pack Size Cut to Length
Cores 61
mm² 0.34
Colour Grey
CPR -
32000503F-E00
3 x 0.50mm² LiYCY PVC Screened Multicore Grey DIN 47100 Colour Code
3 0.5 Grey Eca Cut to Length Get Quote
Pack Size Cut to Length
Cores 3
mm² 0.5
Colour Grey
CPR Eca
32000504F-E00
4 x 0.50mm² LiYCY PVC Screened Multicore Grey DIN 47100 Colour Code
4 0.5 Grey Eca Cut to Length Get Quote
Pack Size Cut to Length
Cores 4
mm² 0.5
Colour Grey
CPR Eca
