LSHF Alternative to Belden 8723NH Individually Screened Two Pair Data Cable

The cable consists of two pairs, each individually screened with 100% aluminium foil coverage, ensuring superior protection against electromagnetic interference (EMI). The outer sheath is also LSHF, reducing the risk of toxic fumes in the event of a fire.

With a nominal conductor resistance of less than 53 Ω/km, this cable offers efficient data transmission while maintaining minimal power loss. It also has excellent insulation resistance of over 200 MΩ·m, which helps to prevent signal degradation.

The capacitance between core-to-core is 90 pF/m nominal, and between core-to-screen, it is 180 pF/m nominal, making this cable ideal for high-speed data transmission. It has a voltage rating of 450/750V and a test voltage of 2.5 kV for 5 minutes, offering excellent reliability in a variety of applications.

The cable's temperature rating ranges from -30°C to +70°C, making it suitable for use in both extreme cold and high-heat environments. The overall diameter is 5.2mm nominal, and the minimum bend radius is 10 times the outer diameter (OD), ensuring flexibility during installation.

Compliant with important standards such as BS EN 60332-1-2 for flame retardancy and BS EN 61034-2 for low smoke generation, this cable provides safety and performance. It is also RoHS compliant, UV-resistant, and weather-resistant, tested to ISO 4892-3.

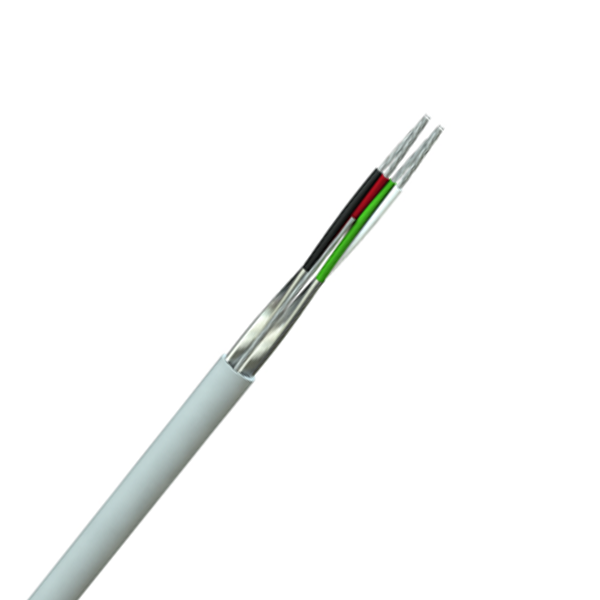

Image representative of product style, product supplied may vary.
