Our high-performance AWG Single Pair Screened Data Grey LSHF Cable is designed to meet the stringent demands of modern electrical installations, combining durability, safety, and reliability in one versatile package. Ideal for power and signal transmission, this cable offers superior protection and fire safety, making it an excellent choice for a wide range of applications. It is also a high-quality alternative to the Belden 8760NH, providing similar performance with enhanced safety features.
The conductor material is Tinned Copper (18(16) AWG) and the insulation material is Polyethylene (PE). This cable features a single pair, with 100% Aluminium Foil shielding for optimal protection against electromagnetic interference. The drain wire is made from Tinned Copper (20(7) AWG). The sheath material is Low Smoke Halogen Free (LSHF), offering reduced toxicity and lower smoke generation in the event of a fire. This cable serves as a direct alternative to the Belden 8760NH, ensuring excellent performance in a variety of electrical and data transmission applications.
The nominal conductor resistance at 20°C is less than 23.2 Ω/km. The capacitance between core to core is 90 pF/m (nominal), while the capacitance between core to screen is 160 pF/m (nominal). The cable has a voltage rating of 450/750 V (applicable to CE marked FSC branded stock only) and can withstand a test voltage of 2.5 kV for 5 minutes, ensuring reliable performance in high-voltage environments.
The overall diameter of the cable is 6.3 mm (nominal), with a minimum bend radius of 10 times the outer diameter (OD). The cable is rated for temperatures from -30°C to +70°C, making it highly versatile for both indoor and outdoor applications. It weighs 45 kg/km, making it easy to handle during installation while maintaining a robust construction.
This cable meets essential safety and environmental standards. It is flame retardant in accordance with BS EN 60332-1-2, and exhibits low smoke generation as per BS EN 61034-2. Additionally, it complies with the halogen gas emission standards outlined in BS EN 60754-1 & 2, ensuring safer performance in fire situations. The cable is RoHS compliant, free from hazardous materials, and tested for weather resistance to ISO 4892-3. It is CE compliant with LVD (2014/35/EU) and CPR (305/2011) regulations, with a CPR classification of B2ca s1a, d1, a1 (EN 50575:2014+A1:2016).
This cable offers enhanced safety, as it uses low smoke and halogen-free materials to minimize risks in case of fire, providing added protection for both people and property. It delivers superior electrical performance, thanks to high-quality copper conductors and full shielding that ensures reliable data and power transmission. The cable is designed to be durable, with a wide operating temperature range from -30°C to +70°C, making it suitable for harsh environments and extreme conditions. Its compliance with international safety and environmental standards offers peace of mind, ensuring that your installations meet all required regulatory guidelines.
Overall, this AWG Single Pair Screened Data Grey LSHF Cable is a reliable, cost-effective alternative to the Belden 8760NH, providing long-lasting, fire-safe performance in a variety of applications. Whether you’re looking for high-performance data transmission or reliable power distribution, this cable delivers the performance you need in a safe and environmentally conscious package.

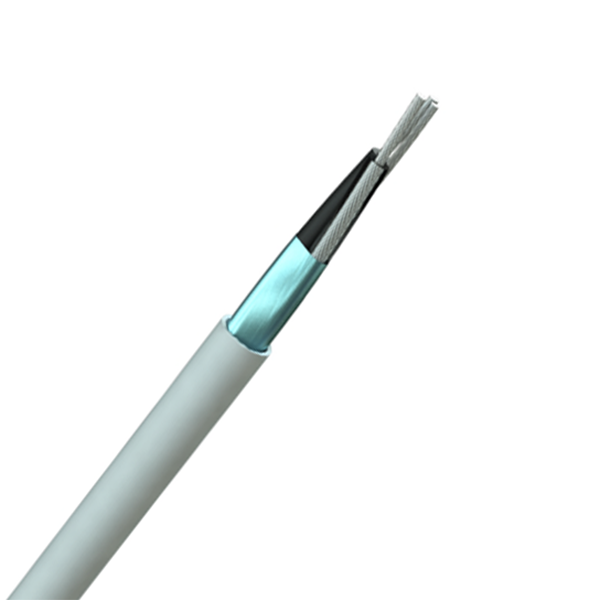

Image representative of product style, product supplied may vary.
