LSHF Alternative to Belden 8777NH Individually Screened Multipair Data Cable

The cable consists of three pairs, each individually screened with 100% aluminium foil coverage, providing excellent protection against electromagnetic interference (EMI). The outer sheath is made of LSHF material, which reduces the emission of toxic fumes in the event of a fire.

With a nominal conductor resistance of less than 53 Ω/km, this cable ensures efficient data transmission with minimal power loss. It also offers an excellent insulation resistance of over 200 MΩ·m, preventing signal degradation and ensuring long-term performance.

The capacitance between core-to-core is 90 pF/m nominal, and between core-to-screen is 180 pF/m nominal, making this cable ideal for high-speed data transmission. It has a voltage rating of 450/750V and a test voltage of 2.5 kV for 5 minutes, offering excellent reliability in various environments.

This cable is suitable for use in both extreme cold and high-heat conditions, with a temperature rating ranging from -30°C to +70°C. The overall diameter is 7.0mm nominal, with a minimum bend radius of 10 times the outer diameter (OD), providing flexibility during installation.

Compliant with important standards such as BS EN 60332-1-2 for flame retardancy and BS EN 61034-2 for low smoke generation, this cable ensures safety and performance. It is also RoHS compliant, UV-resistant, and weather-resistant, having been tested to ISO 4892-3.

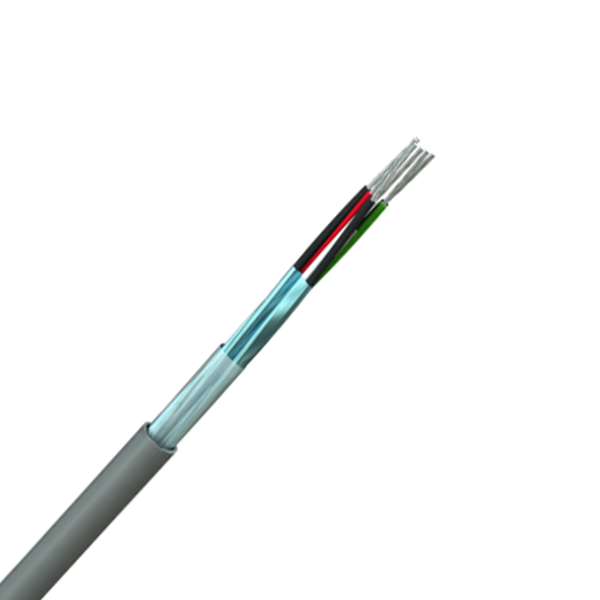

Image representative of product style, product supplied may vary.
