LSHF Alternative to Belden 9504NH Overall Screened Multipair Data Cable

The cable consists of four pairs, each individually insulated with LSHF material and wrapped with 100% aluminium foil for superior electromagnetic interference (EMI) protection. The overall screen ensures minimal signal degradation, making this cable suitable for high-speed data transmission and communication applications.

With a nominal conductor resistance of less than 83 Ω/km, the cable guarantees efficient signal transmission with minimal power loss. Additionally, it offers excellent insulation resistance of over 200 MΩ·m, ensuring long-term durability and signal integrity.

The capacitance between core-to-core is 80 pF/m nominal, and core-to-screen capacitance is 140 pF/m nominal, providing a balanced impedance for stable data transmission over long distances. This cable is ideal for systems requiring a low capacitance design and high-speed data transfer.

It has a voltage rating of 450/750V, making it suitable for a variety of commercial and industrial applications. The cable has been tested to 2.5kV for 5 minutes, ensuring its performance in demanding environments. With an overall diameter of 6.6mm nominal and a minimum bend radius of 10 times the outer diameter (OD), it is flexible and easy to install in tight spaces.

This cable operates effectively across a wide temperature range of -20°C to +70°C, making it versatile for both cold and hot environments. It also complies with key safety standards, including flame retardancy (BS EN 60332-1-2) and low smoke generation (BS EN 61034-2), ensuring its suitability for fire-sensitive installations.

RoHS compliant and UV-resistant, the cable has been tested to ISO 4892-3 for weather resistance, providing long-term durability even in harsh outdoor conditions.

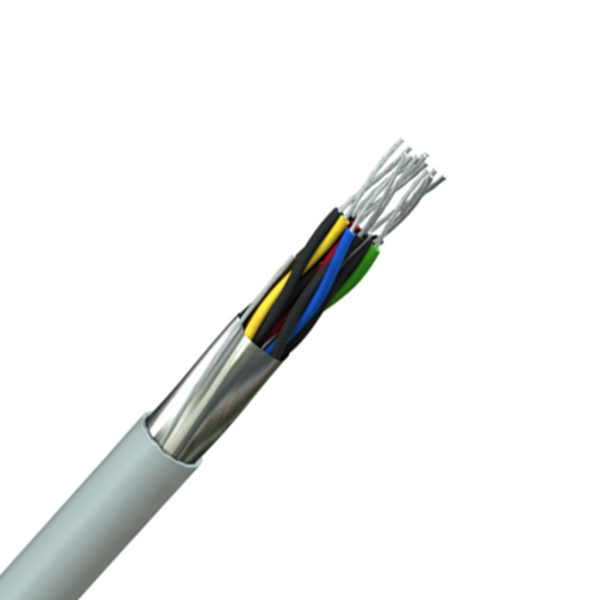

Image representative of product style, product supplied may vary.
