LSHF Alternative to Belden 9538NH Overall Screened Multicore Data Cable

The cable consists of eight cores, each individually insulated and identified by a color-coding system: Black, White, Red, Green, Brown, Blue, Orange, and Yellow. These cores are surrounded by 100% aluminium foil for optimal electromagnetic interference (EMI) protection. The overall screen provides additional shielding to enhance the cable's performance in data transmission applications.

With a nominal conductor resistance of less than 83.0 Ω/km, the cable offers efficient signal transmission while minimizing power loss. It also boasts excellent insulation resistance of over 200 MΩ·m, ensuring long-term durability and reliable performance in various environments.

Capacitance between core-to-core is 85 pF/m nominal, and core-to-screen capacitance is 153 pF/m nominal, making this cable ideal for systems requiring a stable impedance for reliable data transmission over longer distances.

The voltage rating is 450/750V, and the cable has been tested to 2.5kV for 5 minutes, making it suitable for demanding industrial and commercial environments. With an overall diameter of 5.8mm nominal and a minimum bend radius of 10 times the outer diameter (OD), this cable is flexible and easy to install in tight spaces.

Operating in temperatures ranging from -30°C to +70°C, this cable is versatile for use in both cold and high-heat environments. The cable also meets key safety standards for flame retardancy (BS EN 60332-1-2) and low smoke generation (BS EN 61034-2), providing peace of mind in case of fire.

This cable is RoHS compliant, UV-resistant, and has been tested for weather resistance according to ISO 4892-3, ensuring durability and longevity even in harsh environmental conditions.

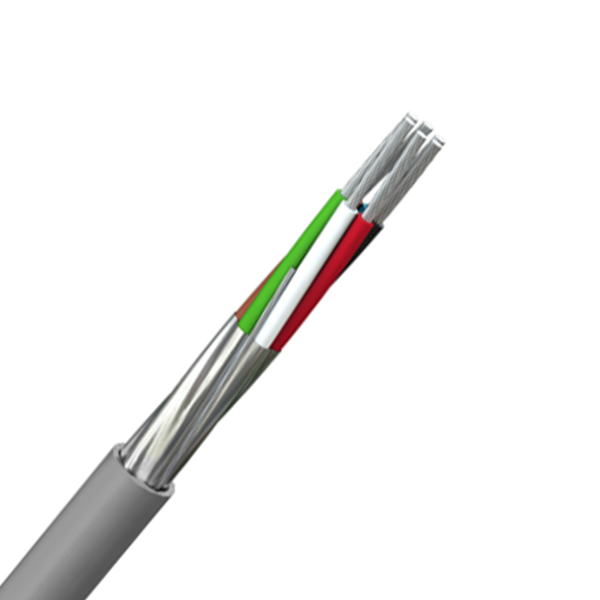

Image representative of product style, product supplied may vary.
