LSHF Alternative to Belden 9841NH Overall Foil and Braid Screened Paired Data Cable

The cable consists of one pair, with 100% aluminium foil coverage for individual screening and 90% tinned copper wire braid for overall screening. This combination provides superior protection against electromagnetic interference (EMI), making it ideal for sensitive data transmission applications.

With a nominal conductor resistance of less than 83 Ω/km, this cable ensures efficient data transmission with minimal power loss. The insulation resistance is over 200 MΩ·m, helping to prevent signal degradation and maintain high performance.

The capacitance between core-to-core is 50 pF/m nominal, and between core-to-screen is 90 pF/m nominal, which is ideal for RS485 and other low capacitance applications. It has a voltage rating of 450/750V and a test voltage of 2.5 kV for 5 minutes, ensuring excellent reliability in demanding environments.

This cable is suitable for use in both cold and hot environments, with a temperature rating of -30°C to +70°C. The overall diameter is 6.2mm nominal, and the minimum bend radius is 10 times the outer diameter (OD), providing flexibility during installation.

Compliant with key standards such as BS EN 60332-1-2 for flame retardancy and BS EN 61034-2 for low smoke generation, this cable ensures safety and performance. It is also RoHS compliant, UV-resistant, and weather-resistant, having been tested to ISO 4892-3.

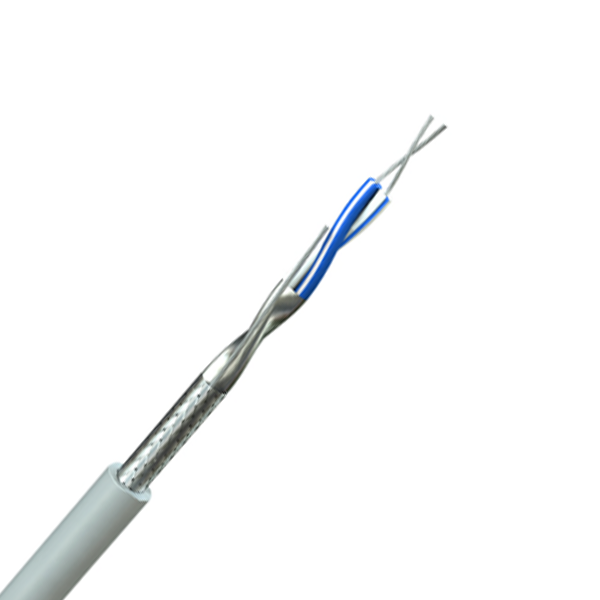

Image representative of product style, product supplied may vary.
