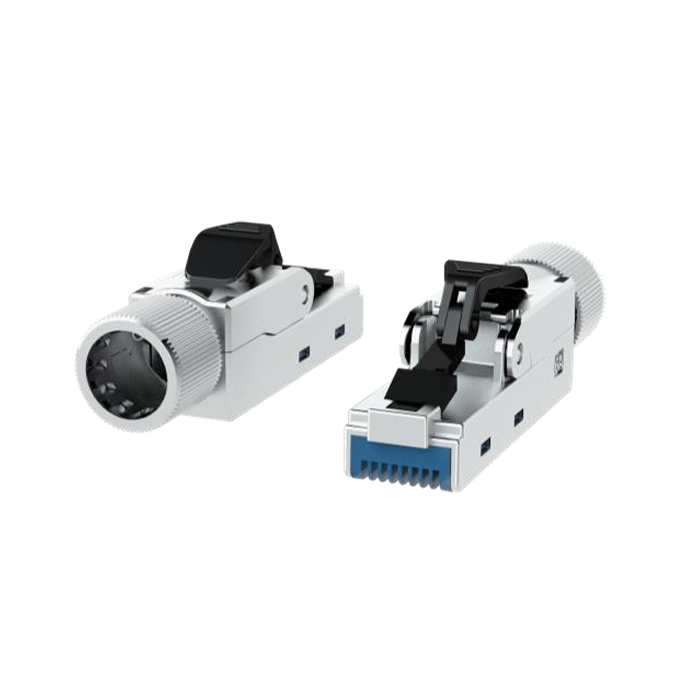

Prysmian Cat6a Screened Field Termination Plug - Silver
Prysmian Cat6a Screened Field Termination Plug - Silver
The Prysmian Cat6a STP Field Termination Plug provides a fast and flexible solution for terminating shielded Cat6a network cable directly to IP-enabled Ethernet devices. Designed to meet and exceed the latest ISO and TIA Cat6a performance requirements, it combines robust die-cast construction with excellent shielding performance to help minimise alien crosstalk.
- Cat6a performance – Designed to meet and exceed the latest ISO and TIA standards.
- 10 Gigabit Ethernet – Supports high-speed network applications.
- PoE+ compatible – Suitable for IEEE 802.3bt Type 4 4PPoE applications.
- Fully shielded construction – Robust die-cast housing helps minimise alien crosstalk.
- Independently verified – Provides additional confidence in performance and quality.
- Plastic-free packaging – Supplied in environmentally conscious plastic-free packaging.
- Pack of 6 – Convenient pack size for installation and maintenance requirements.
| Type of Connector | Field Termination Plug RJ45 8P8C |
|---|---|
| Category | Cat6a |
| Connection Type | Crimp |
| Colour | Silver |
| AWG Range – Solid Core | 22–26 |
| AWG Range – Stranded Core | 23–27 |
| Suitable Cable Types | Solid/Stranded Core / Round / S/FTP, F/FTP, U/FTP, F/UTP |
| Supporting Cable Diameter | 6.0–9.0mm |
| Width | 12.10mm |
| Depth | 47.00mm |
| Height | 16.85mm |
| Housing | Zinc Alloy |
| Plug Finish | Nickel Plate |
| RJ45 Plug Contacts | Phosphor Bronze with 50u″ gold plating |
| IDC Contacts | Phosphor Bronze |
| Plug Insertion Cycle | Min. 750 insertions |
| Suitable Tool | Water pump pliers |
| Operating Temperature Range | -10°C to 60°C |
| Storage Temperature Range | -40°C to 70°C |
| Re-termination Capability | 5 times |
