Prysmian UC Connect Outdoor Cat6 Solid U/UTP Cable - CPR Class Fca
Prysmian UC Connect Outdoor Cat6 Solid U/UTP Cable - CPR Class Fca

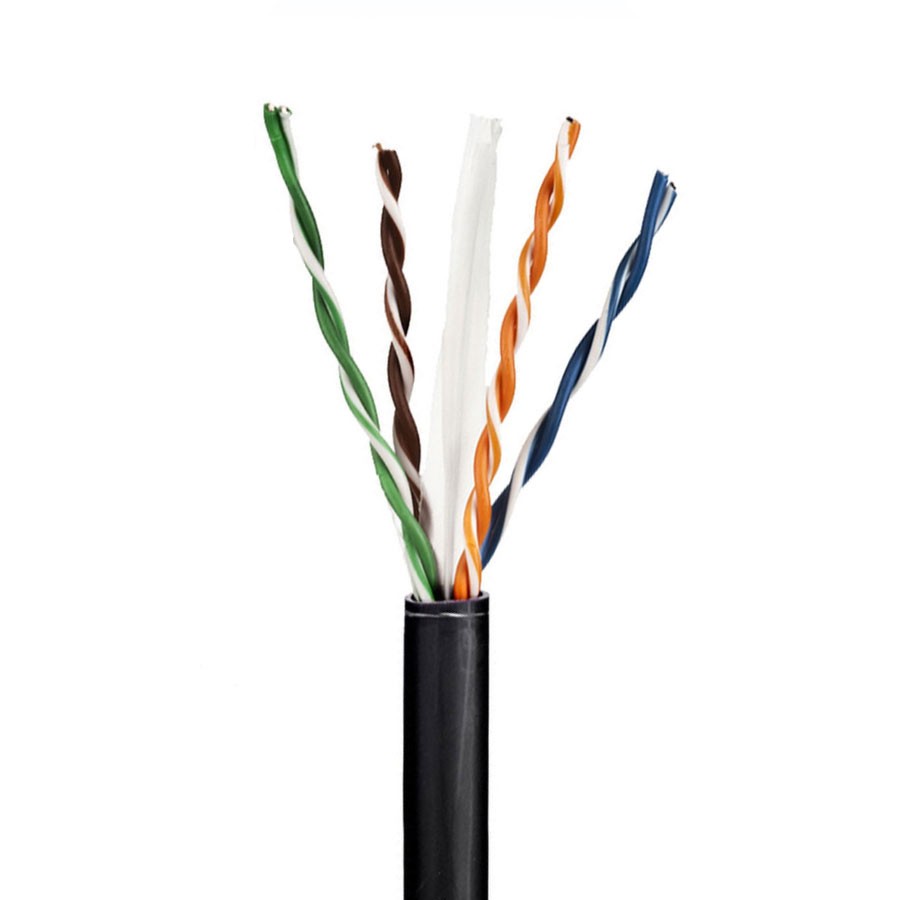

The Prysmian UC400 Cat6 U/UTP PE Outdoor Installation Cable is designed for reliable structured cabling installations where enhanced protection against external environments is required. Suitable for primary (campus), secondary (riser) and tertiary (horizontal) applications, this outdoor-rated cable provides dependable performance for a wide range of Ethernet and data communication systems.
- Category 6 U/UTP outdoor installation cable
- Designed for primary, secondary and tertiary structured cabling applications
- Solid AWG24 bare copper conductors
- 4-pair construction with non-metallic cross separator (spline)
- Black PE outer sheath designed for outdoor installation
- Supports 10Base-T, 100Base-T and 1000Base-T Ethernet applications
- Compatible with IEEE 802.3af/at/bt Power over Ethernet (PoE Type 1–4)
- Complies with EIA/TIA 568.2-D, ISO/IEC 11801, IEC 61156-5, EN 50173-1 and EN 50288-6-1
- Suitable for campus networks, external links and outdoor data installations
| DC Loop Resistance: | 188 Ω/km |
| Resistance Unbalance: | ≤ 2% |
| Insulation Resistance (500 V): | ≥ 5000 MΩ·km |
| Capacitance at 800 Hz: | Nom. 48 nF/km |
| Capacitance Unbalance (Pair to Ground): | ≤ 1500 pF/km |
| Mean Impedance (100 MHz): | 100 ± 5 Ω |
| Nominal Velocity of Propagation: | Approx. 67% |
| Propagation Delay: | Nominal 518 ns/100m |
| Delay Skew: | Nominal 20 ns/100m |
| Test Voltage (DC, 1 min) Core/Core: | 1000 V |
| Coupling Attenuation: | 40 dB |
