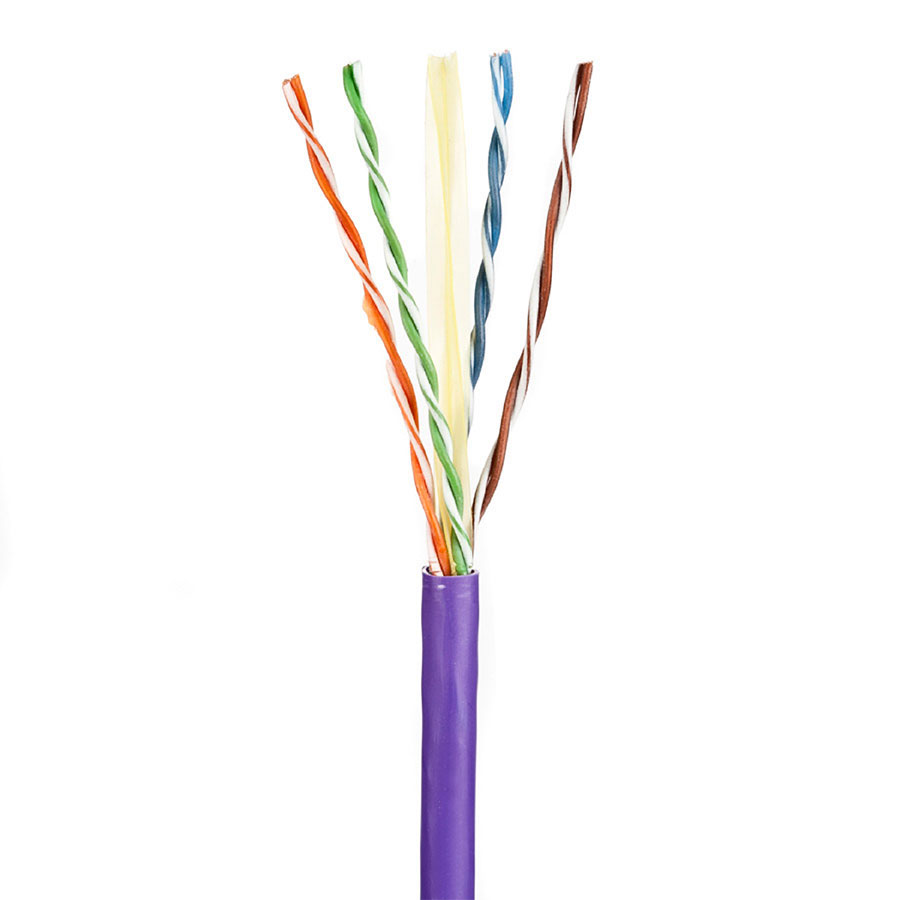

Prysmian UC Connect Cat6 Solid U/UTP Cable - CPR Class Dca
Prysmian UC Connect Cat6 Solid U/UTP Cable - CPR Class Dca
The Prysmian UC400 Cat6 U/UTP Installation Cable is designed for high-performance structured cabling systems in commercial and residential environments. Suitable for primary (campus), secondary (riser) and tertiary (horizontal) installations, it provides reliable Gigabit Ethernet connectivity while supporting Power over Ethernet (PoE) applications.
- Category 6 U/UTP installation cable
- Solid AWG24 bare copper conductors
- 4-pair construction with non-metallic cross separator (spline)
- Suitable for campus, riser and horizontal structured cabling installations
- Supports 10Base-T, 100Base-T and 1000Base-T Ethernet applications
- Compatible with IEEE 802.3af/at/bt Power over Ethernet (PoE Type 1–4)
- Complies with EIA/TIA 568.2-D, ISO/IEC 11801, IEC 61156-5, EN 50173-1 and EN 50288-6-1
- Low Smoke Halogen Free (LSHF) outer sheath
- CPR Class Dca s2 d2 a1 fire performance
- Suitable for commercial and residential structured cabling installations
| DC Loop Resistance at 20°C: | 188 Ω/km |
| Resistance Unbalance: | ≤ 2% |
| Insulation Resistance (500 V): | ≥ 5000 MΩ·km |
| Capacitance at 800 Hz: | Nom. 48 nF/km |
| Capacitance Unbalance (Pair to Ground): | ≤ 1500 pF/km |
| Mean Impedance (100 MHz): | 100 ± 5 Ω |
| Nominal Velocity of Propagation: | Approx. 67% |
| Propagation Delay: | Nom. 518 ns/100 m |
| Delay Skew: | Nom. 20 ns/100 m |
| Test Voltage (DC, 1 min) Core/Core: | 1000 V |
| Coupling Attenuation: | 40 dB |
