Code: F1263
- 4 core to 12 core
- LSF, LSZH and Duct Grade
Designed for inter-connecting sensors and control panels, alarm cables are widely used within the security industry.
These cables meet the BS 4737-3:30 standard, helping installers to determine the differences between types or grades of alarm cable.
Manufactured in white or black as standard, although other colours can be easily and quickly produced for quantities as low as 300m, for example to identify a circuit or blend with a colour scheme.
Cables held in stock include standard PVC, Low Smoke Halogen Free, screened and duct grade versions.

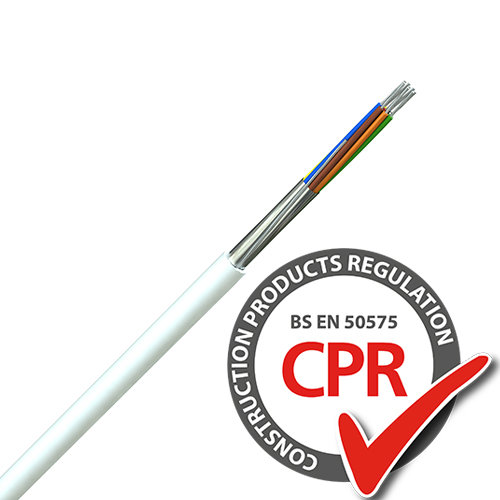

Image representative of product style, product supplied may vary.
LSF
Tinned copper wire strands, LSF insulation, aluminium foil screen + tinned copper wire drain, LSF sheath
LSHF
Tinned copper wire strands, Low Smoke Halogen Free insulation, Low Smoke Halogen Free sheath
Duct
Tinned copper wire strands, PVC insulation, PVC inner sheath, black LDPE outer sheath
| Temperature Rating: | 0°C to +70°C |
| Max Working Voltage: | 50V |
| Max Current: | 1 amp per core |
Standard packing 100m, 200m & 500m reels.
| 4-core: | Red, blue, yellow, black |
| 6-core: | Red, blue, yellow, black, white, green |
| 8-core: | Red, blue, yellow, black, white, green, orange*, brown |
| 12-core: | Red, blue, yellow, black, white, green, orange*, brown |
| *On duct grade cables core 7 is violet. | |
Order by 4.30pm for delivery by
| Code | Description | No. Cores | mm² | Screen | Colour | Sheath | CPR Class | Downloads | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 39900204WH |
4 Core Alarm Cable Foil Screened White LSHF
|
4 | 0.22 | Overall Foil | White | LSHF | - | Datasheet | Get Quote | ||||||||||
|
|||||||||||||||||||
| 39900204WL-E00 |
4 Core Alarm Cable Foil Screened White LSF
|
4 | 0.22 | Overall Foil | White | LSF | Eca | Datasheet | Get Quote | ||||||||||
|
|||||||||||||||||||
| 39900206WH-E00 |
6 Core Alarm Cable Foil Screened White LSHF
|
6 | 0.22 | Overall Foil | White | LSHF | Eca | Datasheet | Get Quote | ||||||||||
|
|||||||||||||||||||
| 39900206WL-E00 |
6 Core Alarm Cable Foil Screened White LSF
|
6 | 0.22 | Overall Foil | White | LSF | Eca | Datasheet | Get Quote | ||||||||||
|
|||||||||||||||||||
| 39900208WH-E00 |
8 Core Alarm Cable Foil Screened White LSHF
|
8 | 0.22 | Overall Foil | White | LSHF | Eca | Datasheet | Get Quote | ||||||||||
|
|||||||||||||||||||
| 39900208WL-E00 |
8 Core Alarm Cable Foil Screened White LSF
|
8 | 0.22 | Overall Foil | White | LSF | Eca | Datasheet | Get Quote | ||||||||||
|
|||||||||||||||||||
| 39900212WL-E00 |
12 Core Alarm Cable Foil Screened White LSF
|
12 | 0.22 | Overall Foil | White | LSF | Eca | Datasheet | Get Quote | ||||||||||
|
|||||||||||||||||||
| 39400208D-F00 |
7-2-8S Def-Standard PVC Multicore Foil Screened Duct Grade 0.22mm² Black
|
8 | 0.22 | Overall Foil | Black | PE | Fca | Datasheet | Get Quote | ||||||||||
|
|||||||||||||||||||
| 39400212D-F00 |
7-2-12S Def-Standard PVC Multicore Foil Screened Duct Grade 0.22mm² Black
|
12 | 0.22 | Overall Foil | Black | PE | Fca | Datasheet | Get Quote | ||||||||||
|
|||||||||||||||||||
Please contact us to request a quote for this item.
