Standard LSHF Fire-Resistant Multicore Fire Alarm Cable

The Low Smoke Halogen Free (LSHF) outer sheath, available in red or white, reduces smoke and toxic gas emissions in case of fire. An aluminium foil screen with 100% coverage protects against electromagnetic interference.

With a voltage rating of 300/500V, the cable has a nominal conductor resistance of less than 100 Ω/km at 20°C, ensuring efficient power transmission. It also boasts insulation resistance greater than 1 MΩ·km for long-term reliability.

The cable is designed to withstand temperatures from -25°C to 70°C and has a minimum bend radius of 6 times the outer diameter for easy installation.

Compliant with BS 7629-1, the cable meets stringent standards for flame and shock resistance (BS EN 50200:2015) and passes vertical burn tests (BS EN 60332-1). It also meets low smoke and halogen emission standards (BS EN 60754-1&2, BS EN 61034-2), ensuring safety in confined spaces.

Certified by BASEC and LPCB, this cable offers exceptional performance and reliability for safety-critical electrical installations.

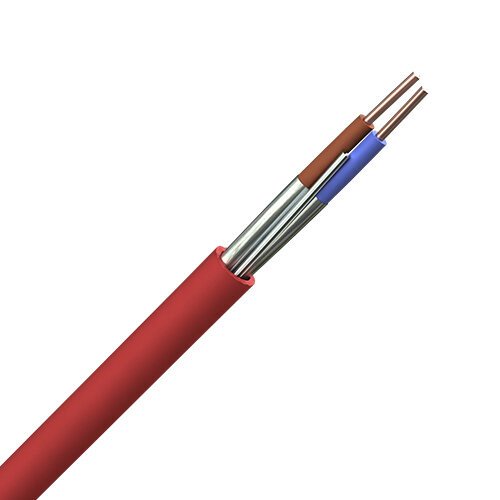

Image representative of product style, product supplied may vary.
