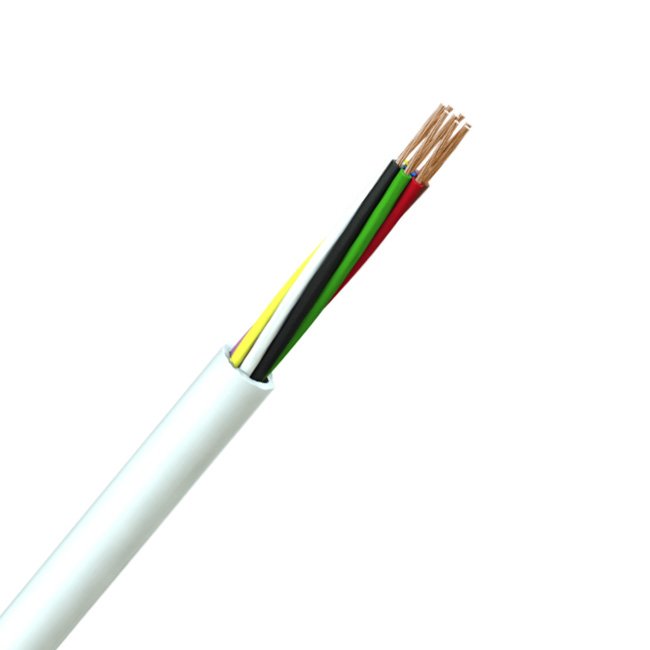

Unscreened LSHF Alarm Cable - CPR Class B2ca s1a, d0, a1
Unscreened LSHF Alarm Cable - CPR Class B2ca s1a, d0, a1
This LSHF alarm cable is specifically designed for interconnecting sensors, detectors, and control panels in security and alarm system installations. Widely used throughout the security industry, it provides a reliable solution for low-voltage signal and control circuits in commercial, public, and residential environments.
Constructed with stranded 7/0.2mm tinned copper conductors, the cable offers excellent flexibility and ease of installation. Each conductor is insulated with Low Smoke Halogen Free (LSHF) material and identified by a distinct core colour, simplifying termination and reducing installation time.
The white LSHF outer sheath provides enhanced fire safety performance by reducing smoke generation and the emission of corrosive halogen gases in the event of fire. With an operating temperature range of -30°C to +90°C, the cable is suitable for a wide range of indoor installation environments.
Compliant with BS EN 60332-1-2, BS EN 61034-2, BS EN 60754-1 & 2, RoHS requirements, and CPR regulations, this cable achieves a B2ca-s1a,d0,a1 classification, making it suitable for installations where both safety and reliable performance are essential.
- Designed for Security & Alarm System Installations
- Flexible 7/0.2mm Stranded Tinned Copper Conductors
- LSHF Insulation & Outer Sheath for Enhanced Fire Safety
- 8 Colour-Coded Cores for Easy Identification
- Ideal for Sensors, Detectors & Control Panels
| Electrical Characteristics |
|
| Nominal Conductor Resistance @ 20°C |
< 100 Ω/km |
| Insulation Resistance |
> 1 MΩ/km |
| Voltage Rating |
30 V |
| Test Voltage |
2 kV for 5 minutes |
| Physical Characteristics |
|
| Overall Diameter |
5.1 mm (Nom.) |
| Minimum Bend Radius |
15 × OD |
| Temperature Rating |
-30°C to +90°C |
| Weight |
See Table |
| Standards & Compliance |
|
| Flame Retardant |
BS EN 60332-1-2 |
| Low Smoke Generation |
BS EN 61034-2 |
| Halogen Gas Emission |
BS EN 60754-1 & 2 |
| RoHS Compliant |
Yes |
| CE Compliant |
LVD (2014/35/EU), CPR (305/2011) |
| CPR Classification |
B2ca-s1a,d0,a1 (EN 50575:2014+A1:2016) |
Order by 4.30pm for delivery by
| Code |
Description |
Colour |
CPR |
Downloads |
Pack Size |
QTY |
Price |
|
39800208WH-B201 |
8 x 0.22mm² Burglar Alarm Cable Unscreened in Low Smoke Halogen Free (LSHF) Throughout
|
White |
B2ca s1a
d0
a1 (EN50575:2014+A1:2016) |
Datasheet
|
Get Quote |
Get Quote
|
| Pack Size |
Get Quote |
| Colour |
White |
| CPR |
B2ca s1a, d0, a1 (EN50575:2014+A1:2016) |
| Downloads |
Datasheet
|
|
|
39800212WH-B201 |
12 Core Alarm Cable Unscreened Low Smoke Halogen Free (LSHF) Insulation; Sheath White
|
White |
B2ca s1a
d0
a1 (EN50575:2014+A1:2016) |
Datasheet
|
|
Get Quote
|
| Pack Size |
|
| Colour |
White |
| CPR |
B2ca s1a, d0, a1 (EN50575:2014+A1:2016) |
| Downloads |
Datasheet
|
|
