AIAI OM3 50/125 Armoured Tight Buffered Fibre Optic Cable Marine DNV-GL & ABS Approved

code: F1394

  • DNV-GL & ABS approved
  • Fully compliant to IEC
  • High speed data transmission
  • SHF1, SHF2 and SHF2-MUD NEK 606 sheaths
  • LSZH throughout
  • UV and Oil resistant
  • Flame Retardant
  • Weather Resistant
AIAI fibre optic cable provides enhanced mechanical protection without the use of a metal armour. The non conductive design is ideal for applications where metallic elements cannot be used and conductive paths are forbidden.

AIAI is also immune to electromagnetic or electrical disturbances making it idea for data applications in noisy EMI environments.

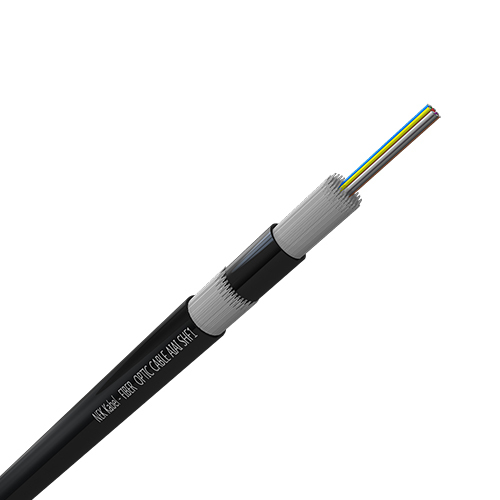

Image representative of product style, product supplied may vary.

Order by 4.30pm for delivery by

Code Description Approval Armour No. Cores Fibre Grade Colour Sheath Downloads
FOM304AIAI1
4 x OM3 Multimode Loose Tube AIAI LSZH SHF1 Sheath DNV- GL & ABS Approved
DNV-GL & ABS Glass Yarn 4 OM3 Black SHF1 Get Quote
Description 4 x OM3 Multimode Loose Tube AIAI LSZH SHF1 Sheath DNV- GL & ABS Approved
Approval DNV-GL & ABS
Armour Glass Yarn
No. Cores 4
Fibre Grade OM3
Colour Black
Sheath SHF1
FOM308AIAI1
8 x OM3 Multimode Loose Tube AIAI LSZH SHF1 Sheath DNV- GL & ABS Approved
DNV-GL & ABS Glass Yarn 8 OM3 Black SHF1 Get Quote
Description 8 x OM3 Multimode Loose Tube AIAI LSZH SHF1 Sheath DNV- GL & ABS Approved
Approval DNV-GL & ABS
Armour Glass Yarn
No. Cores 8
Fibre Grade OM3
Colour Black
Sheath SHF1
FOM312AIAI1
12 x OM3 Multimode Loose Tube AIAI LSZH SHF1 Sheath DNV- GL & ABS Approved
DNV-GL & ABS Glass Yarn 12 OM3 Black SHF1 Get Quote
Description 12 x OM3 Multimode Loose Tube AIAI LSZH SHF1 Sheath DNV- GL & ABS Approved
Approval DNV-GL & ABS
Armour Glass Yarn
No. Cores 12
Fibre Grade OM3
Colour Black
Sheath SHF1
FOM324AIAI1
24 x OM3 Multimode Loose Tube AIAI LSZH SHF1 Sheath DNV- GL & ABS Approved
DNV-GL & ABS Glass Yarn 24 OM3 Black SHF1 Get Quote
Description 24 x OM3 Multimode Loose Tube AIAI LSZH SHF1 Sheath DNV- GL & ABS Approved
Approval DNV-GL & ABS
Armour Glass Yarn
No. Cores 24
Fibre Grade OM3
Colour Black
Sheath SHF1
