P-Temp 260 Cable

P-Temp 260 Cable

P-Temp-260 cables are designed to operate at conductor temperatures up to +260°C. The PTFE insulation is covered by a layer of mica that is protected from abrasion or mechanical damage by an impregnated and varnished glass fibre braid. The cable is also capable of withstanding higher temperatures for short periods. This is a direct alternative to In-Temp 250 that used to be manufactured by BICC.

The fine stranded nickel plated copper conductor provides flexibility during installation and routing with substantially improved high temperature performance over tinned or plain copper.

Multicore versions can be made to your requirements normally with stainless steel or glass fibre braids. Other types of PTFE insulated wires are also available with tinned, nickel, or silver plated conductors. Please ask for details.

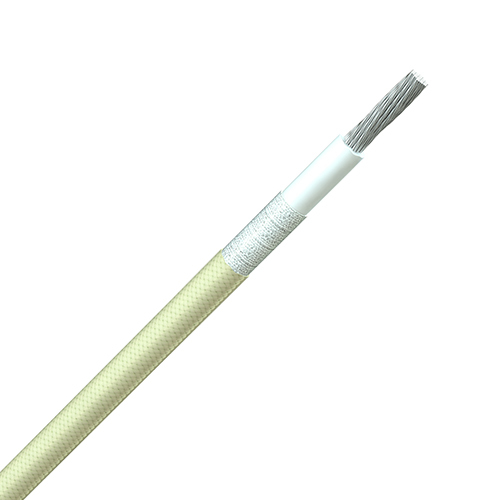

Image representative of product style, product supplied may vary.

  • PTFE insulation
  • Mica tape and varnished glass fibre braid
  • Works at -55°C to +260°C

Fine nickel plated copper wire strands to IEC 60228 Class 5 or finer. White PTFE insulation. Mica tape, impregnated and varnished glass fibre braid. Standard colour white, other colours to special order.
Voltage Rating:
Working: 0.6/1kV
Test: 2500V
Temperature Rating: Static: -55°C to +260°C
Bending Radius: Static: 10 x cable diameter
Conductor Stranding: To IEC 60228 class 5 flexible or finer

We also hold stocks of some sizes of Unipren, Uniefglas, Uniminyvin, Uninyvin and Unitersil. Please ask for details.

Order by 4.30pm for delivery by

Code Description mm² Colour Downloads Pack Size QTY Price
76001000
1 x 1.0mm² P-Temp 260 White GFB
1 White Datasheet Get Quote
Pack Size
mm² 1
Colour White
Downloads Datasheet
76001500
1 x 1.5mm² P-Temp 260 White GFB
1.5 White Datasheet £302.83
-
+
QtyAdd to Cart
Pack Size Select Pack Size
mm² 1.5
Colour White
Downloads Datasheet
76002500
1 x 2.5mm² P-Temp 260 White GFB
2.5 White Datasheet £370.15
-
+
QtyAdd to Cart
Pack Size Select Pack Size
mm² 2.5
Colour White
Downloads Datasheet
76004000
1 x 4.0mm² P-Temp 260 White GFB
4 White Datasheet £474.98
-
+
QtyAdd to Cart
Pack Size Select Pack Size
mm² 4
Colour White
Downloads Datasheet
76006000
1 x 6.0mm² P-Temp 260 White GFB
6 White Datasheet £773.19
-
+
QtyAdd to Cart
Pack Size Select Pack Size
mm² 6
Colour White
Downloads Datasheet
76010000
1 x 10mm² P-Temp 260 White GFB
10 White Datasheet £1,423.29
-
+
QtyAdd to Cart
Pack Size Select Pack Size
mm² 10
Colour White
Downloads Datasheet
76016000
1 x 16mm² P-Temp 260 White GFB
16 White Datasheet Get Quote Get Quote
Pack Size Get Quote
mm² 16
Colour White
Downloads Datasheet
76025000
1 x 25mm² P-Temp 260 White GFB
25 White Datasheet Get Quote
Pack Size
mm² 25
Colour White
Downloads Datasheet
