RG59 Composite Coaxial Cable

code: F1267

To meet the increasing demands for camera cables containing a coax with power and control cores for Pan, Tilt, Zoom (PTZ) or audio, FS stock various types.

Duct grade versions are available for external applications where the cable may be run through ducts or exposed outdoors. For fixed installations, direct burial and where mechanical protection is required, an armoured (SWA) version is offered.

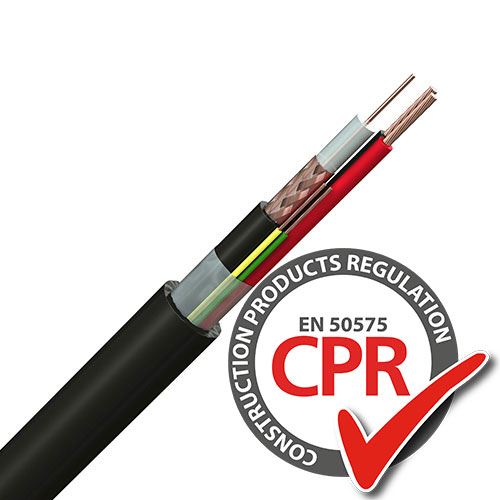

Image representative of product style, product supplied may vary.

Order by 4.30pm for delivery by

Code Description Impedance (Ohms) Screen Colour Sheath CPR Class Downloads
39005922D
RG59 B/U + 2 x 1.5mm² + 2 x 0.22mm² Composite Coaxial Cable Circular Black PE Duct
75 Overall Braid Black PE - Datasheet Get Quote
Description RG59 B/U + 2 x 1.5mm² + 2 x 0.22mm² Composite Coaxial Cable Circular Black PE Duct
Impedance (Ohms) 75
Screen Overall Braid
Colour Black
Sheath PE
CPR Class -
Downloads Datasheet
39005922H-E00
RG59 B/U + 2 x 1.5mm² + 2 x 0.22mm² Composite Coaxial Cable Circular Black LSHF
75 Overall Foil & Braid Black LSHF Eca Datasheet Get Quote
Description RG59 B/U + 2 x 1.5mm² + 2 x 0.22mm² Composite Coaxial Cable Circular Black LSHF
Impedance (Ohms) 75
Screen Overall Foil & Braid
Colour Black
Sheath LSHF
CPR Class Eca
Downloads Datasheet
3900592D
RG59 + 2 x 0.75mm² Composite Coaxial Cable Shotgun Black PE Duct
75 Overall Braid Black PE - Datasheet Get Quote
Description RG59 + 2 x 0.75mm² Composite Coaxial Cable Shotgun Black PE Duct
Impedance (Ohms) 75
Screen Overall Braid
Colour Black
Sheath PE
CPR Class -
Downloads Datasheet
3910702L
Coax URM 70 + 2 x 0.75mm² Shotgun White LSF
75 Overall Braid White LSF - Datasheet Get Quote
Description Coax URM 70 + 2 x 0.75mm² Shotgun White LSF
Impedance (Ohms) 75
Screen Overall Braid
Colour White
Sheath LSF
CPR Class -
Downloads Datasheet
