CAN Bus Offshore Marine Approved Bus Cables DNV-GL & ABS

Code: F1227

  • DNV-GL & ABS Approved
  • Fully compliant to IEC
  • SHF1, SHF2 and SHF2-MUD NEK 606 sheaths
  • LSZH throughout
CAN Bus is being used more and more in the offshore industry replacing traditional multi-pair analogue wiring. To meet the offshore ship industries needs DNV- GL & ABS approved marine grade CAN Bus cables are available from stock.

Manufactured using low smoke halogen free sheath compounds in accordance with IEC 60092-359 the cables provide increased levels of fire safety and are flame retardant to IEC 60332-1-2 and IEC 60332-3-24. All options have a SHF1 sheath as standard and the unarmoured verions are DNV-GL & ABS approved. An armour can be applied for additional mechanical protection if required.

Sheath options include:
SHF1 sheath: Halogen free compound provides minimal smoke in the event of a fire. Flame retardant to IEC 60332-1-2. Cable in accordance NEK 606.
SHF2 sheath: Ideal for environments with increase oil and hydrocarbon contamination. Flame retardant to IEC 60332-3-24. Cable in accordance IEC 60092-359.
MUD resistant sheath: resistant to drilling MUD, cutting fluids and chemicals in accordance with NEK 606 and flame retardant to IEC 60332-3-24. Cable in accordance IEC 60092-359.

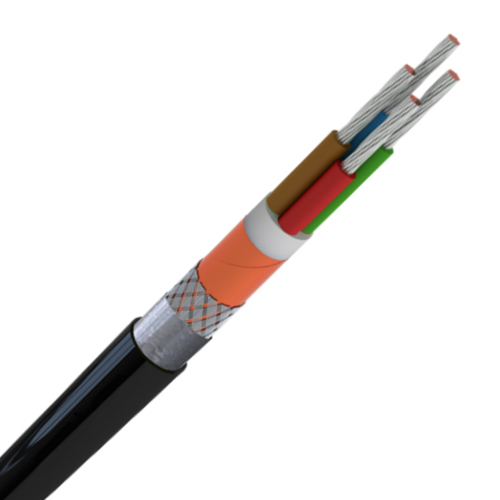

Image representative of product style, product supplied may vary.

Order by 4.30pm for delivery by

Code Description Approval mm² No. Pairs Screen Colour Sheath Downloads
SM000138
1 x 2 x 0.75mm² (+ 0.75mm²) CAN BUS Marine LSZH SHF1 DNV- GL & ABS Approved
DNV-GL & ABS 0.75 1 Overall Foil & Braid Black SHF1 Datasheet Get Quote
Description 1 x 2 x 0.75mm² (+ 0.75mm²) CAN BUS Marine LSZH SHF1 DNV- GL & ABS Approved
Approval DNV-GL & ABS
mm² 0.75
No. Pairs 1
Screen Overall Foil & Braid
Colour Black
Sheath SHF1
Downloads Datasheet
SM000040
1 x 2 x 0.75mm² (+ 0.75mm²) CAN BUS Marine LSZH SHF2 DNV- GL & ABS Approved
DNV-GL & ABS 0.75 1 Overall Foil & Braid Black SHF2 Datasheet Get Quote
Description 1 x 2 x 0.75mm² (+ 0.75mm²) CAN BUS Marine LSZH SHF2 DNV- GL & ABS Approved
Approval DNV-GL & ABS
mm² 0.75
No. Pairs 1
Screen Overall Foil & Braid
Colour Black
Sheath SHF2
Downloads Datasheet
SM000150
1 x 2 x 0.75mm² (+ 0.75mm²) CAN BUS Marine LSZH SHF2 DNV- GL Approved
DNV-GL 0.75 1 Overall Foil & Braid Black SHF2 Get Quote
Description 1 x 2 x 0.75mm² (+ 0.75mm²) CAN BUS Marine LSZH SHF2 DNV- GL Approved
Approval DNV-GL
mm² 0.75
No. Pairs 1
Screen Overall Foil & Braid
Colour Black
Sheath SHF2
SM000041
1 x 2 x 0.75mm² (+ 0.75mm²) CAN BUS Marine LSZH MUD Resistant DNV- GL & ABS Approved
DNV-GL & ABS 0.75 1 Overall Foil & Braid Black MUD Get Quote
Description 1 x 2 x 0.75mm² (+ 0.75mm²) CAN BUS Marine LSZH MUD Resistant DNV- GL & ABS Approved
Approval DNV-GL & ABS
mm² 0.75
No. Pairs 1
Screen Overall Foil & Braid
Colour Black
Sheath MUD
SM000139
2 x 2 x 0.75mm² CAN BUS Marine LSZH SHF1 DNV- GL & ABS Approved
DNV-GL & ABS 0.75 2 Overall Foil & Braid Black SHF1 Datasheet Get Quote
Description 2 x 2 x 0.75mm² CAN BUS Marine LSZH SHF1 DNV- GL & ABS Approved
Approval DNV-GL & ABS
mm² 0.75
No. Pairs 2
Screen Overall Foil & Braid
Colour Black
Sheath SHF1
Downloads Datasheet
SM000042
2 x 2 x 0.75mm² CAN BUS Marine LSZH SHF2 DNV- GL & ABS Approved
DNV-GL & ABS 0.75 2 Overall Foil & Braid Black SHF2 Datasheet Get Quote
Description 2 x 2 x 0.75mm² CAN BUS Marine LSZH SHF2 DNV- GL & ABS Approved
Approval DNV-GL & ABS
mm² 0.75
No. Pairs 2
Screen Overall Foil & Braid
Colour Black
Sheath SHF2
Downloads Datasheet
SM000149
2 x 2 x 0.75mm² CAN BUS Marine LSZH SHF2 DNV- GL Approved
DNV-GL 0.75 2 Overall Foil & Braid Black SHF2 Get Quote
Description 2 x 2 x 0.75mm² CAN BUS Marine LSZH SHF2 DNV- GL Approved
Approval DNV-GL
mm² 0.75
No. Pairs 2
Screen Overall Foil & Braid
Colour Black
Sheath SHF2
SM000043
2 x 2 x 0.75mm² CAN BUS Marine MUD Resistant DNV- GL & ABS Approved
DNV-GL & ABS 0.75 2 Overall Foil & Braid Black MUD Get Quote
Description 2 x 2 x 0.75mm² CAN BUS Marine MUD Resistant DNV- GL & ABS Approved
Approval DNV-GL & ABS
mm² 0.75
No. Pairs 2
Screen Overall Foil & Braid
Colour Black
Sheath MUD
