Alternative to Belden 8723 Cable
Alternative to Belden 8723 Cable
Individually screened two pair data Cable 22AWG, alternative to Belden 8723. Belden 8723 cables are used extensively in the security industry for CCTV applications including telemetry. Also suitable for computer and instrumentation applications where it is important to provide a high level of screening from external sources, together with low levels of cross talk between pairs.
LSF, PVC and Low Smoke Halogen Free versions and external grade armoured versions are available where indicated.
CPR-Compliant options are available for this cable and are indicated in the product table. For the latest information on CPR for Cables, you can visit our dedicated CPR Explained web page. We have created a series of short CPR videos to break down all the significant areas and have updated our 'CPR for Cables' guide, available for you to download.

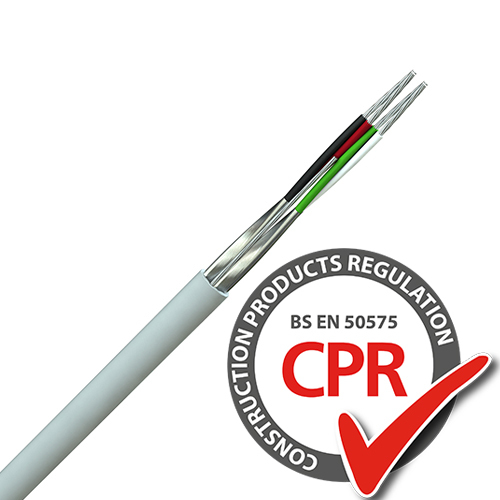

Image representative of product style, product supplied may vary.
- CPR-Compliant options
- High quality alternative to genuine Belden
- Cut to length required
- LSF or LSZH sheath
- External duct grade and armoured versions
Individually Screened
Tinned copper conductor 22(7) AWG 0.35mm², polypropylene insulation, red/black & green/white conductors, twisted into pairs, each pair aluminium/polyester foil screened, common tinned copper drain wire (24AWG), LSF sheath.
The duct grade version has a black UV stable polyethylene sheath over the standard LSF cable to provide a high degree of weather resistance, while the armoured version is protected by heavy galvanised steel wires and an external grade sheath.
| Voltage Rating: | 300V |
| CE: | 450/750V† |
| Nominal Impedance: | 52 Ohms |
| Capacitance: | |
| Core to core: | 108 pF/m |
| Core to screen: | 203 pF/m |
| Colour Code: | Red / black & green / white |
† Applies to CE marked FSC branded stock only.
Order by 4.30pm for delivery by
| Code | Description | Alt to Belden | Armour | CPR | Colour | Sheath | Downloads | Pack Size | QTY | Price | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2202PIFRA-F00 |
2 x 2 x 22(7)AWG Individually Screened Two Pair Data 22AWG Black SWA
|
8723 | SWA | Fca | Black | PE | Datasheet |
£186.59
-
+
|
|||||||
|
|||||||||||||||
| 2202PIFRC-F00 |
2 x 2 x 22(7)AWG Individually Screened Two Pair Data 22AWG Black PE
|
8723 | - | Fca | Black | PE | Datasheet |
£50.67
-
+
|
|||||||
|
|||||||||||||||
| 2202PIFRD-F00 |
2 x 2 x 22(7)AWG Individually Screened Two Pair Data 22AWG Black PE Duct
|
8723 | - | Fca | Black | PE | Datasheet |
£62.70
-
+
|
|||||||
|
|||||||||||||||
| 2202PIFRH100-E00 |
2 x 2 x 22(7)AWG Individually Screened Two Pair Data 22AWG Grey LSHF - 100m
|
8723NH | - | Eca | Grey | LSHF | Datasheet | 100m |
£45.30
-
+
QtyAdd to Cart Please select a packsize
|
||||||
|
|||||||||||||||
| 2202PIFRH200-E00 |
2 x 2 x 22(7)AWG Individually Screened Two Pair Data 22AWG Grey LSHF - 200m
|
8723NH | - | Eca | Grey | LSHF | Datasheet | 200m |
£89.56
-
+
QtyAdd to Cart Please select a packsize
|
||||||
|
|||||||||||||||
| 2202PIFRH250-E00 |
2 x 2 x 22(7)AWG Individually Screened Two Pair Data 22AWG Grey LSHF - 250m
|
8723NH | - | Eca | Grey | LSHF | Datasheet | 250m |
£113.22
-
+
QtyAdd to Cart Please select a packsize
|
||||||
|
|||||||||||||||
| 2202PIFRH300-E00 |
2 x 2 x 22(7)AWG Individually Screened Two Pair Data 22AWG Grey LSHF - 300m
|
8723NH | - | Eca | Grey | LSHF | Datasheet | 300m |
£135.86
-
+
QtyAdd to Cart Please select a packsize
|
||||||
|
|||||||||||||||
| 2202PIFRH500-E00 |
2 x 2 x 22(7)AWG Individually Screened Two Pair Data 22AWG Grey LSHF - 500m
|
8723NH | - | Eca | Grey | LSHF | Datasheet | 500m |
£192.48
-
+
QtyAdd to Cart Please select a packsize
|
||||||
|
|||||||||||||||
| 2202PIFRH06100-E00 |
2 x 2 x 22(7)AWG Individually Screened Two Pair Data 22AWG Violet LSHF - 100m
|
8723NH | - | Eca | Violet | LSHF | Datasheet | 100m | Get Quote | ||||||
|
|||||||||||||||
| 2202PIFRH06200-E00 |
2 x 2 x 22(7)AWG Individually Screened Two Pair Data 22AWG Violet LSHF - 200m
|
8723NH | - | Eca | Violet | LSHF | Datasheet | 200m |
£89.56
-
+
QtyAdd to Cart Please select a packsize
|
||||||
|
|||||||||||||||
| 2202PIFRH06250-E00 |
2 x 2 x 22(7)AWG Individually Screened Two Pair Data 22AWG Violet LSHF - 250m
|
8723NH | - | Eca | Violet | LSHF | Datasheet | 250m | Get Quote | ||||||
|
|||||||||||||||
| 2202PIFRH06500-E00 |
2 x 2 x 22(7)AWG Individually Screened Two Pair Data 22AWG Violet LSHF - 500m
|
8723NH | - | Eca | Violet | LSHF | Datasheet | 500m |
£192.48
-
+
QtyAdd to Cart Please select a packsize
|
||||||
|
|||||||||||||||
| 2202PIFRL100-E00 |
2 x 2 x 22(7)AWG Individually Screened Two Pair Data 22AWG Grey LSF - 100m
|
8723 | - | Eca | Grey | LSF | Datasheet | 100m |
£40.14
-
+
QtyAdd to Cart Please select a packsize
|
||||||
|
|||||||||||||||
| 2202PIFRL200-E00 |
2 x 2 x 22(7)AWG Individually Screened Two Pair Data 22AWG Grey LSF - 200m
|
8723 | - | Eca | Grey | LSF | Datasheet | 200m |
£81.31
-
+
QtyAdd to Cart Please select a packsize
|
||||||
|
|||||||||||||||
| 2202PIFRL250-E00 |
2 x 2 x 22(7)AWG Individually Screened Two Pair Data 22AWG Grey LSF - 250m
|
8723 | - | Eca | Grey | LSF | Datasheet | 250m |
£101.91
-
+
QtyAdd to Cart Please select a packsize
|
||||||
|
|||||||||||||||
| 2202PIFRL300-E00 |
2 x 2 x 22(7)AWG Individually Screened Two Pair Data 22AWG Grey LSF - 300m
|
8723 | - | Eca | Grey | LSF | Datasheet | 300m |
£122.49
-
+
QtyAdd to Cart Please select a packsize
|
||||||
|
|||||||||||||||
| 2202PIFRL500-E00 |
2 x 2 x 22(7)AWG Individually Screened Two Pair Data 22AWG Grey LSF - 500m
|
8723 | - | Eca | Grey | LSF | Datasheet | 500m |
£179.09
-
+
QtyAdd to Cart Please select a packsize
|
||||||
|
|||||||||||||||
| 2202PIFRWH-E00 |
2 x 2 x 22(7)AWG Individually Screened Two Pair Data 22AWG White LSHF
|
8723NH | - | Eca | White | LSHF | Datasheet |
£47.01
-
+
|
|||||||
|
|||||||||||||||
