Alternative to Belden 8761 Two Pair Individually Foil Screened LSHF Data Cable, CPR Class - Cca-s1a, d2, a1
Alternative to Belden 8761 Two Pair Individually Foil Screened LSHF Data Cable, CPR Class - Cca-s1a, d2, a1
General purpose foil screened two pair cables with a small outer diameter, frequently used in audio, data and instrumentation applications. Polyethylene insulation results in lower signal loss than standard PVC insulation.
- CPR-Compliant options
- High quality alternative to genuine Belden
- Cut to length required
- LSHF sheath

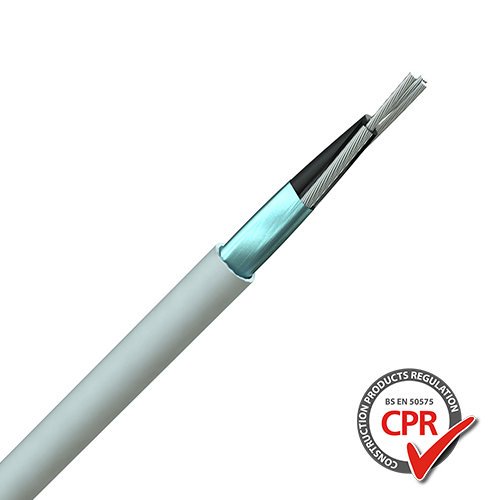

Tinned copper conductor, polyethylene insulation, colours black & clear (black & white in LSZH versions), twisted pair, aluminium/polyester foil screen, tinned copper drain wire, LSF sheath. On duct grade cables an additional UV stable LDPE jacket is put over the standard PVC cables to give a high degree of weather resistance.
| Test Voltage: | 2000v |
| CE Compliant: | LVD (2014/35/EU), CPR (305/2011) |
| Flame Retardant: | BS EN 60332-1-2 |
| Low Smoke Generation: | BS EN 61034-2 |
| Halogen Gas Emission: | BS EN 60754-1 |
| RoHS Compliant: | Yes |
| CPR Classification: | Cca s1a, d2, a1 |
