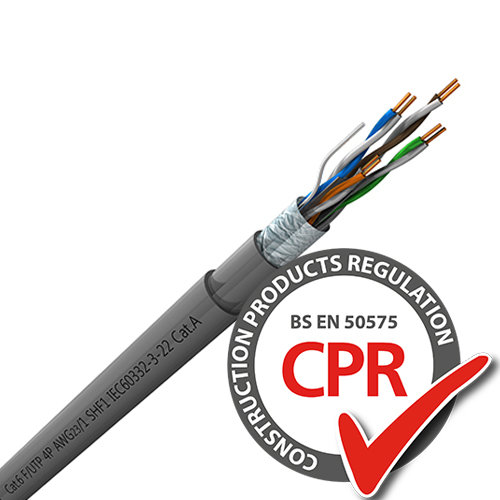

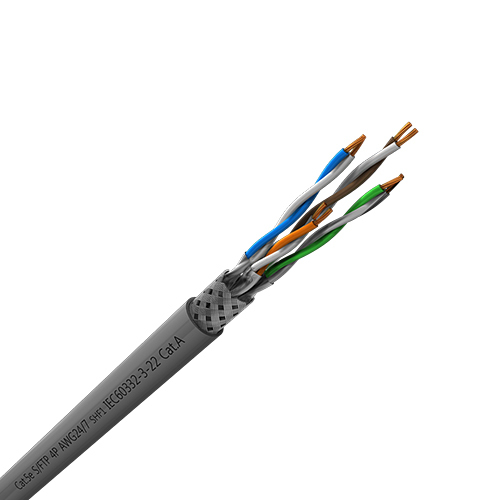

Cat 5E S/FTP Offshore Marine Approved LAN Cables DNV-GL

Code: F1163

  • DNV-GL and Lloyd's Register approval
  • Fully compliant to IEC
  • Transmission speeds up to 1GBps
  • SHF1 NEK 606 sheaths
  • LSHF throughout
The use of Cat 5E data cabling is now common place on ships and offshore installations. To meet the demands of the offshore industry our UV resistant & Oil resistant DNV- GL approved Category 5E cables are available from stock.

All options have an SHF1 sheath as standard and are suitable for use on yachts, boats and larger commercial ships. Both types are Low Smoke Halogen Free and flame retardant to IEC60332-3.

Order by 4.30pm for delivery by

Code Description Approval AWG Screen Colour Sheath CPR Class Downloads
SM000007-D31
4 x 2 x 24AWG Marine LAN 5 Category 5E S/FTP LSZH SHF1 Sheath DNV-GL Approved
DNV-GL 24 S/FTP Black SHF1 Dca s2 d1 a1 Get Quote
Description 4 x 2 x 24AWG Marine LAN 5 Category 5E S/FTP LSZH SHF1 Sheath DNV-GL Approved
Approval DNV-GL
AWG 24
Screen S/FTP
Colour Black
Sheath SHF1
CPR Class Dca s2 d1 a1
SM000102
4 x 2 x 24AWG Marine LAN 5 Category 5E S/FTP LSZH SHF1 Sheath DNV-GL Approved
DNV-GL
LR
24 S/FTP Black SHF1 - Get Quote
Description 4 x 2 x 24AWG Marine LAN 5 Category 5E S/FTP LSZH SHF1 Sheath DNV-GL Approved
Approval DNV-GL, LR
AWG 24
Screen S/FTP
Colour Black
Sheath SHF1
CPR Class -
