Code: F1325

  • Manufactured to British Telecom Specification CW1308
  • Cost effective general signal cable for fixed installation
  • PVC sheath
Product Description
Manufactured to British Telecom Specification CW1308, CW1308 telephone cables are used for internal connection of telephone systems and other communications equipment.

Insulated and sheathed in PVC, CW1308 internal telephone cables offer an extremely cost effective general signal cable for fixed installation. Standard cable sheath colour is white although some sizes are available with a black or grey PVC sheath.

A low smoke halogen free version, CW1308 LSHF Internal Telephone cable is also stocked, as well as a full range of other BT and European specification telephone cables. Please see the navigation menu to the left for more details.

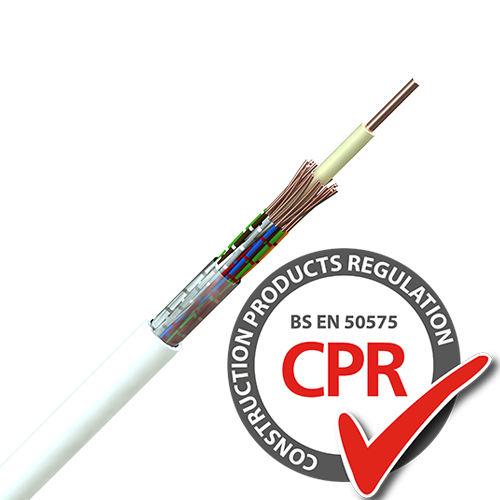

Image representative of product style, product supplied may vary.
Construction
Solid copper conductor, colour coded PVC insulation, twisted in pairs, rip cord, PVC sheath.

Colour codes can be found in our CW1308 Telephone Cable Colour Chart
Technical Information
Conductor Diameter: 0.5mm, Earth 1.38mm
Max. Conductor Resistance: 97.8 Ohm/km, 12.4 Ohm/km
Max. Capacitance Unbalanced: 500pF/km
Working Temperature: 0°C to +70°C
Min. Bend Radius Fixed: 8 x cable diameter

Other pair combinations or larger numbers of pairs and alternative conductor sizes are available on request.

Cables ending with E include a 1.38mm Earth core.

Order by 4.30pm for delivery by

Code Description mm No. Pairs Screen Colour Sheath CPR Class Downloads
30803-E00
3 Pair CW1308 PVC Internal Telephone Cable White
Get Quote
0.5 3 Unscreened White PVC Eca Get Quote
Description 3 Pair CW1308 PVC Internal Telephone Cable White
mm 0.5
No. Pairs 3
Screen Unscreened
Colour White
Sheath PVC
CPR Class Eca
30804-E00
4 Pair CW1308 PVC Internal Telephone Cable White
Get Quote
0.5 4 Unscreened White PVC Eca Get Quote
Description 4 Pair CW1308 PVC Internal Telephone Cable White
mm 0.5
No. Pairs 4
Screen Unscreened
Colour White
Sheath PVC
CPR Class Eca
30806-E00
6 Pair CW1308 PVC Internal Telephone Cable White
Get Quote
0.5 6 Unscreened White PVC Eca Get Quote
Description 6 Pair CW1308 PVC Internal Telephone Cable White
mm 0.5
No. Pairs 6
Screen Unscreened
Colour White
Sheath PVC
CPR Class Eca
30810-E00
10 Pair CW1308 PVC Internal Telephone Cable White
Get Quote
0.5 10 Unscreened White PVC Eca Get Quote
Description 10 Pair CW1308 PVC Internal Telephone Cable White
mm 0.5
No. Pairs 10
Screen Unscreened
Colour White
Sheath PVC
CPR Class Eca
30810E-E00
10 Pair & Earth CW1308 PVC Internal Telephone Cable White
Get Quote
0.5 10+E Unscreened White PVC Eca Get Quote
Description 10 Pair & Earth CW1308 PVC Internal Telephone Cable White
mm 0.5
No. Pairs 10+E
Screen Unscreened
Colour White
Sheath PVC
CPR Class Eca
30820-E00
20 Pair CW1308 PVC Internal Telephone Cable White
Get Quote
0.5 20 Unscreened White PVC Eca Get Quote
Description 20 Pair CW1308 PVC Internal Telephone Cable White
mm 0.5
No. Pairs 20
Screen Unscreened
Colour White
Sheath PVC
CPR Class Eca
30820E-E00
20 Pair & Earth CW1308 PVC Internal Telephone Cable White
Get Quote
0.5 20+E Unscreened White PVC Eca Get Quote
Description 20 Pair & Earth CW1308 PVC Internal Telephone Cable White
mm 0.5
No. Pairs 20+E
Screen Unscreened
Colour White
Sheath PVC
CPR Class Eca
30825
25 Pair CW1308 PVC Internal Telephone Cable White
Get Quote
0.5 25 Unscreened White PVC - Get Quote
Description 25 Pair CW1308 PVC Internal Telephone Cable White
mm 0.5
No. Pairs 25
Screen Unscreened
Colour White
Sheath PVC
CPR Class -
30840E
40 Pair & Earth CW1308 PVC Internal Telephone Cable White
Get Quote
0.5 40+E Unscreened White PVC - Get Quote
Description 40 Pair & Earth CW1308 PVC Internal Telephone Cable White
mm 0.5
No. Pairs 40+E
Screen Unscreened
Colour White
Sheath PVC
CPR Class -
30850E
50 Pair & Earth CW1308 PVC Internal Telephone Cable White
Get Quote
0.5 50+E Unscreened White PVC - Get Quote
Description 50 Pair & Earth CW1308 PVC Internal Telephone Cable White
mm 0.5
No. Pairs 50+E
Screen Unscreened
Colour White
Sheath PVC
CPR Class -
30880E
80 Pair & Earth CW1308 PVC Internal Telephone Cable White
Get Quote
0.5 80+E Unscreened White PVC - Get Quote
Description 80 Pair & Earth CW1308 PVC Internal Telephone Cable White
mm 0.5
No. Pairs 80+E
Screen Unscreened
Colour White
Sheath PVC
CPR Class -
308100E
100 Pair & Earth CW1308 PVC Internal Telephone Cable White
Get Quote
0.5 100+E Unscreened White PVC - Get Quote
Description 100 Pair & Earth CW1308 PVC Internal Telephone Cable White
mm 0.5
No. Pairs 100+E
Screen Unscreened
Colour White
Sheath PVC
CPR Class -
308160E
160 Pair & Earth CW1308 PVC Internal Telephone Cable White
Get Quote
0.5 160+E Unscreened White PVC - Get Quote
Description 160 Pair & Earth CW1308 PVC Internal Telephone Cable White
mm 0.5
No. Pairs 160+E
Screen Unscreened
Colour White
Sheath PVC
CPR Class -
308200E
200 Pair & Earth CW1308 PVC Internal Telephone Cable White
Get Quote
0.5 200+E Unscreened White PVC - Get Quote
Description 200 Pair & Earth CW1308 PVC Internal Telephone Cable White
mm 0.5
No. Pairs 200+E
Screen Unscreened
Colour White
Sheath PVC
CPR Class -
