Def Stan 16-2 Type A Unscreened Control Cable LSHF

code: F1311

  • Versatile, flexible control cable
  • Compact sizing, high working voltage
  • Wide range of sizes
  • LSZH throughout
Originally developed for military and defence, Def Stan 16-2 (Type A) cables (also known as Defence Standard cables) are now widely used in many industries for a variety of different applications.

Def Stan cables are a robust and economical choice which can also be oversheathed or armoured for duct installation or direct burial. Def Stan cables should not be used a mains connection cables. Applications include data processing, information transfer, process control and security as well as many industrial applications.

This Def Stan (Type A) cable is unscreened, featuring tinned copper wire strands, LSZH (Low Smoke Zero Halogen) insulation and a black LSZH outer jacket. Screened options are also held in stock, all offered in a range of different core counts.

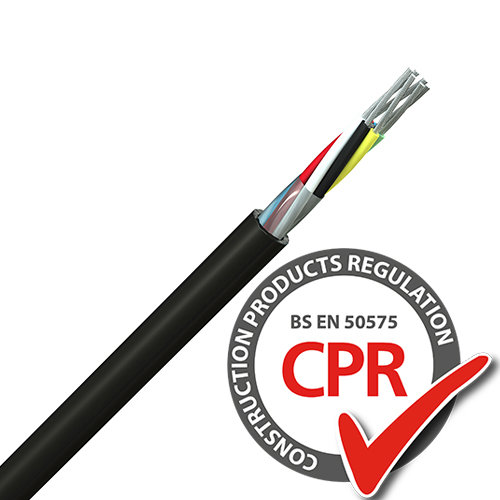

Image representative of product style, product supplied may vary.
Fine tinned copper wire strands, colour coded Low Smoke Halogen Free insulation, cores laid-up with a Low Smoke Halogen Free outer sheath.
Voltage Rating: Working 440V RMS up to 1600Hz
Temperature Rating: 0ºC to +70ºC
Current Rating:  2.5amps
Nominal Conductor Max. Resistance @ 20ºC: 40.1 Ohms per km
Bending Radius:  Static 7.5 x cable diameter
Flame Retardant: IEC 60332-1-2
Smoke Emission: IEC 61034-2
Halogen Emission: IEC 60754-1 & 2

Normally packed on 100m, 500m or 1000m spools, cables can also be cut to length when required.

Order by 4.30pm for delivery by

Code Description No. Cores mm² Screen Colour Sheath CPR Class Downloads
39200502H-E00
16-2-2A Def-Standard LSHF Multicore Unscreened 0.5mm² Black
2 0.5 Unscreened Black LSHF Eca Datasheet Get Quote
Description 16-2-2A Def-Standard LSHF Multicore Unscreened 0.5mm² Black
No. Cores 2
mm² 0.5
Screen Unscreened
Colour Black
Sheath LSHF
CPR Class Eca
Downloads Def Stan 16-2-A Unscreened LSHF Cables
Downloads Datasheet
39200503H-E00
16-2-3A Def-Standard LSHF Multicore Unscreened 0.5mm² Black
3 0.5 Unscreened Black LSHF Eca Datasheet Get Quote
Description 16-2-3A Def-Standard LSHF Multicore Unscreened 0.5mm² Black
No. Cores 3
mm² 0.5
Screen Unscreened
Colour Black
Sheath LSHF
CPR Class Eca
Downloads Def Stan 16-2-A Unscreened LSHF Cables
Downloads Datasheet
39200504H-E00
16-2-4A Def-Standard LSHF Multicore Unscreened 0.5mm² Black
4 0.5 Unscreened Black LSHF Eca Datasheet Get Quote
Description 16-2-4A Def-Standard LSHF Multicore Unscreened 0.5mm² Black
No. Cores 4
mm² 0.5
Screen Unscreened
Colour Black
Sheath LSHF
CPR Class Eca
Downloads Def Stan 16-2-A Unscreened LSHF Cables
Downloads Datasheet
39200506H-E00
16-2-6A Def-Standard LSHF Multicore Unscreened 0.5mm² Black
6 0.5 Unscreened Black LSHF Eca Datasheet Get Quote
Description 16-2-6A Def-Standard LSHF Multicore Unscreened 0.5mm² Black
No. Cores 6
mm² 0.5
Screen Unscreened
Colour Black
Sheath LSHF
CPR Class Eca
Downloads Def Stan 16-2-A Unscreened LSHF Cables
Downloads Datasheet
39200508H-E00
16-2-8A Def-Standard LSHF Multicore Unscreened 0.5mm² Black
8 0.5 Unscreened Black LSHF Eca Datasheet Get Quote
Description 16-2-8A Def-Standard LSHF Multicore Unscreened 0.5mm² Black
No. Cores 8
mm² 0.5
Screen Unscreened
Colour Black
Sheath LSHF
CPR Class Eca
Downloads Def Stan 16-2-A Unscreened LSHF Cables
Downloads Datasheet
39200512H-E00
16-2-12A Def-Standard LSHF Multicore Unscreened 0.5mm² Black
12 0.5 Unscreened Black LSHF Eca Datasheet Get Quote
Description 16-2-12A Def-Standard LSHF Multicore Unscreened 0.5mm² Black
No. Cores 12
mm² 0.5
Screen Unscreened
Colour Black
Sheath LSHF
CPR Class Eca
Downloads Def Stan 16-2-A Unscreened LSHF Cables
Downloads Datasheet
39200518H
16-2-18A Def-Standard LSHF Multicore Unscreened 0.5mm² Black
18 0.5 Unscreened Black LSHF - Datasheet Get Quote
Description 16-2-18A Def-Standard LSHF Multicore Unscreened 0.5mm² Black
No. Cores 18
mm² 0.5
Screen Unscreened
Colour Black
Sheath LSHF
CPR Class -
Downloads Def Stan 16-2-A Unscreened LSHF Cables
Downloads Datasheet
39200525H
16-2-25A Def-Standard LSHF Multicore Unscreened 0.5mm² Black
25 0.5 Unscreened Black LSHF - Datasheet Get Quote
Description 16-2-25A Def-Standard LSHF Multicore Unscreened 0.5mm² Black
No. Cores 25
mm² 0.5
Screen Unscreened
Colour Black
Sheath LSHF
CPR Class -
Downloads Def Stan 16-2-A Unscreened LSHF Cables
Downloads Datasheet
