Outdoor Alarm

Code: F1264

  • Pure copper conductors - we never use CCA
  • 6 core to 12 core
  • Tough, UV resistant, waterproof PE jacket
  • Ideal for clipping to buildings
Designed for inter-connecting sensors and control panels, alarm cables are widely used within the security industry. These duct grade versions feature a tough, UV resistant and waterproof PE jacket which is ideal for external runs, for example clipped to the side of a building.

Manufactured in white or black as standard, although other colours can be easily and quickly produced for quantities as low as 300m, for example to identify a circuit or blend with a colour scheme.

Cables held in stock include standard PVC, Low Smoke Halogen Free, screened and duct grade versions.

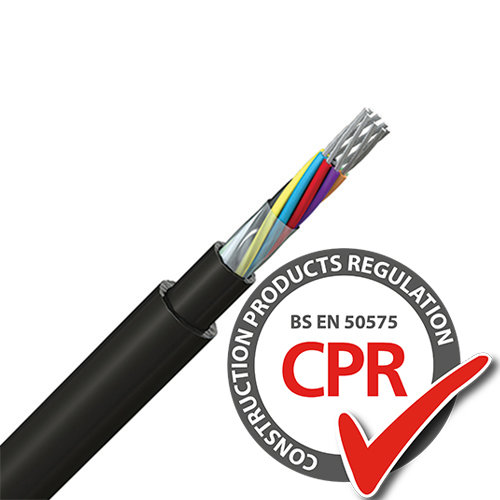

Image representative of product style, product supplied may vary.
Screened Duct
Tinned copper wire strands, PVC insulation, aluminium foil screen with tinned copper drain wire, PVC inner sheath, black LDPE outer sheath

Duct
Tinned copper wire strands, PVC insulation, PVC inner sheath, black LDPE outer sheath
Temperature Rating:   0°C to +70°C
Max Working Voltage: 50V
Max Current: 1 amp per core

Standard packing 100m, 200m & 500m reels.
4-core: Red, blue, yellow, black
6-core: Red, blue, yellow, black, white, green
8-core: Red, blue, yellow, black, white, green, orange*, brown
12-core: Red, blue, yellow, black, white, green, orange*, brown
*On duct grade & armoured cables core 7 is violet.

Order by 4.30pm for delivery by

Code Description AWG No. Cores mm² Screen Colour Sheath CPR Class Downloads
39200206D-F00
7-2-6A Def-Standard PVC Multicore Unscreened Duct Grade 0.22mm² Black
24 6 0.22 Unscreened Black PE Fca Get Quote
Description 7-2-6A Def-Standard PVC Multicore Unscreened Duct Grade 0.22mm² Black
AWG 24
No. Cores 6
mm² 0.22
Screen Unscreened
Colour Black
Sheath PE
CPR Class Fca
39200208D-F00
7-2-8A Def-Standard PVC Multicore Unscreened Duct Grade 0.22mm² Black
24 8 0.22 Unscreened Black PE Fca Get Quote
Description 7-2-8A Def-Standard PVC Multicore Unscreened Duct Grade 0.22mm² Black
AWG 24
No. Cores 8
mm² 0.22
Screen Unscreened
Colour Black
Sheath PE
CPR Class Fca
39200212D-F00
7-2-12A Def-Standard PVC Multicore Unscreened Duct Grade 0.22mm² Black
24 12 0.22 Unscreened Black PE Fca Get Quote
Description 7-2-12A Def-Standard PVC Multicore Unscreened Duct Grade 0.22mm² Black
AWG 24
No. Cores 12
mm² 0.22
Screen Unscreened
Colour Black
Sheath PE
CPR Class Fca
39400208D
7-2-8S Def-Standard PVC Multicore Foil Screened Duct Grade 0.22mm² Black
24 8 0.22 Overall Foil Black PE - Get Quote
Description 7-2-8S Def-Standard PVC Multicore Foil Screened Duct Grade 0.22mm² Black
AWG 24
No. Cores 8
mm² 0.22
Screen Overall Foil
Colour Black
Sheath PE
CPR Class -
39400212D
7-2-12S Def-Standard PVC Multicore Foil Screened Duct Grade 0.22mm² Black
24 12 0.22 Overall Foil Black PE - Get Quote
Description 7-2-12S Def-Standard PVC Multicore Foil Screened Duct Grade 0.22mm² Black
AWG 24
No. Cores 12
mm² 0.22
Screen Overall Foil
Colour Black
Sheath PE
CPR Class -
