QFCI OM3 50/125 Fire Resistant Armoured Loose Tube Fibre Optic Cable Marine DNV-GL & ABS Approved

code: F1393

  • DNV-GL & ABS approved
  • Fully compliant to IEC
  • High speed data transmission
  • SHF1, SHF2 and SHF2-MUD NEK 606 sheaths
  • LSZH throughout
  • UV and Oil resistant
  • Flame Retardant
  • Weather Resistant
  • Fire Resistant
  • Ozone Resistant
QFCI fibre optic cables provides the perfect fibre optic cable solution for offshore emergency communication links requiring fire resistant cables. QFCI fibre cables meet the circuit integrity requirements of IEC 60331-25 and are designed to continue operating in a fire for 3 hours @ 750°C ensuring safety systems keep functioning.

The loose tube construction and steel braid armour keeps QFCI flexible for installation on rigs and ships whilst protecting the optical fibre cores. The cable is sheathed in a Low Smoke Halogen Free compound in accordance with IEC 60092-359 providing weather, UV & Oil resistance making the cable ideal for indoor and outdoor use on offshore installations and designed for use on yachts, boats and larger commercial ships.

The QFCI fibre optic cable range are flame retardant and 3rd party approved by DNV- GL ABS ensuring quality and safety for a hazardous industry within the shipping and offshore sector.

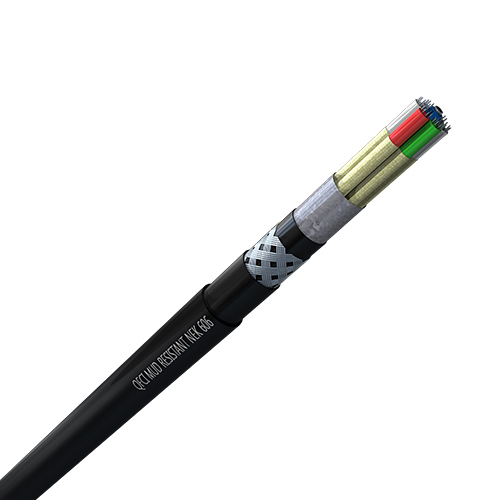

Image representative of product style, product supplied may vary.

Order by 4.30pm for delivery by

Code Description Approval Armour No. Cores Fibre Grade Colour Sheath Downloads
FOM304QFCI1
4 x OM3 Multimode Loose Tube QFCI LSZH SHF1 Sheath DNV- GL & ABS Approved
DNV-GL & ABS GSWB 4 OM3 Black SHF1 Datasheet Get Quote
Description 4 x OM3 Multimode Loose Tube QFCI LSZH SHF1 Sheath DNV- GL & ABS Approved
Approval DNV-GL & ABS
Armour GSWB
No. Cores 4
Fibre Grade OM3
Colour Black
Sheath SHF1
Downloads QFCI SHF1
Downloads Datasheet
FOM304QFCI2
4 x OM3 Multimode Loose Tube QFCI LSZH SHF2 Sheath DNV- GL & ABS Approved
DNV-GL & ABS GSWB 4 OM3 Black SHF2 Datasheet Get Quote
Description 4 x OM3 Multimode Loose Tube QFCI LSZH SHF2 Sheath DNV- GL & ABS Approved
Approval DNV-GL & ABS
Armour GSWB
No. Cores 4
Fibre Grade OM3
Colour Black
Sheath SHF2
Downloads QFCI SHF2
Downloads Datasheet
FOM304QFCIM
4 x OM3 Multimode Loose Tube QFCI LSZH MUD Resistant Sheath DNV- GL & ABS Approved
DNV-GL & ABS GSWB 4 OM3 Black MUD Datasheet Get Quote
Description 4 x OM3 Multimode Loose Tube QFCI LSZH MUD Resistant Sheath DNV- GL & ABS Approved
Approval DNV-GL & ABS
Armour GSWB
No. Cores 4
Fibre Grade OM3
Colour Black
Sheath MUD
Downloads QFCI MUD
Downloads Datasheet
FOM306QFCI2
6 x OM3 Multimode Loose Tube QFCI LSZH SHF2 Sheath DNV- GL & ABS Approved
DNV-GL & ABS GSWB 6 OM3 Black SHF2 Datasheet Get Quote
Description 6 x OM3 Multimode Loose Tube QFCI LSZH SHF2 Sheath DNV- GL & ABS Approved
Approval DNV-GL & ABS
Armour GSWB
No. Cores 6
Fibre Grade OM3
Colour Black
Sheath SHF2
Downloads QFCI SHF2
Downloads Datasheet
FOM306QFCIM
6 x OM3 Multimode Loose Tube QFCI LSZH MUD Resistant Sheath DNV- GL & ABS Approved
DNV-GL & ABS GSWB 6 OM3 Black MUD Datasheet Get Quote
Description 6 x OM3 Multimode Loose Tube QFCI LSZH MUD Resistant Sheath DNV- GL & ABS Approved
Approval DNV-GL & ABS
Armour GSWB
No. Cores 6
Fibre Grade OM3
Colour Black
Sheath MUD
Downloads QFCI MUD
Downloads Datasheet
FOM308QFCI1
8 x OM3 Multimode Loose Tube QFCI LSZH SHF1 Sheath DNV- GL & ABS Approved
DNV-GL & ABS GSWB 8 OM3 Black SHF1 Datasheet Get Quote
Description 8 x OM3 Multimode Loose Tube QFCI LSZH SHF1 Sheath DNV- GL & ABS Approved
Approval DNV-GL & ABS
Armour GSWB
No. Cores 8
Fibre Grade OM3
Colour Black
Sheath SHF1
Downloads QFCI SHF1
Downloads Datasheet
FOM308QFCI2
8 x OM3 Multimode Loose Tube QFCI LSZH SHF2 Sheath DNV- GL & ABS Approved
DNV-GL & ABS GSWB 8 OM3 Black SHF2 Datasheet Get Quote
Description 8 x OM3 Multimode Loose Tube QFCI LSZH SHF2 Sheath DNV- GL & ABS Approved
Approval DNV-GL & ABS
Armour GSWB
No. Cores 8
Fibre Grade OM3
Colour Black
Sheath SHF2
Downloads QFCI SHF2
Downloads Datasheet
FOM308QFCIM
8 x OM3 Multimode Loose Tube QFCI LSZH MUD Resistant Sheath DNV- GL & ABS Approved
DNV-GL & ABS GSWB 8 OM3 Black MUD Datasheet Get Quote
Description 8 x OM3 Multimode Loose Tube QFCI LSZH MUD Resistant Sheath DNV- GL & ABS Approved
Approval DNV-GL & ABS
Armour GSWB
No. Cores 8
Fibre Grade OM3
Colour Black
Sheath MUD
Downloads QFCI MUD
Downloads Datasheet
FOM312QFCI1
12 x OM3 Multimode Loose Tube QFCI LSZH SHF1 Sheath DNV- GL & ABS Approved
DNV-GL & ABS GSWB 12 OM3 Black SHF1 Datasheet Get Quote
Description 12 x OM3 Multimode Loose Tube QFCI LSZH SHF1 Sheath DNV- GL & ABS Approved
Approval DNV-GL & ABS
Armour GSWB
No. Cores 12
Fibre Grade OM3
Colour Black
Sheath SHF1
Downloads QFCI SHF1
Downloads Datasheet
FOM312QFCI2
12 x OM3 Multimode Loose Tube QFCI LSZH SHF2 Sheath DNV- GL & ABS Approved
DNV-GL & ABS GSWB 12 OM3 Black SHF2 Datasheet Get Quote
Description 12 x OM3 Multimode Loose Tube QFCI LSZH SHF2 Sheath DNV- GL & ABS Approved
Approval DNV-GL & ABS
Armour GSWB
No. Cores 12
Fibre Grade OM3
Colour Black
Sheath SHF2
Downloads QFCI SHF2
Downloads Datasheet
FOM312QFCIM
12 x OM3 Multimode Loose Tube QFCI LSZH MUD Resistant Sheath DNV- GL & ABS Approved
DNV-GL & ABS GSWB 12 OM3 Black MUD Datasheet Get Quote
Description 12 x OM3 Multimode Loose Tube QFCI LSZH MUD Resistant Sheath DNV- GL & ABS Approved
Approval DNV-GL & ABS
Armour GSWB
No. Cores 12
Fibre Grade OM3
Colour Black
Sheath MUD
Downloads QFCI MUD
Downloads Datasheet
FOM324QFCI1
24 x OM3 Multimode Loose Tube QFCI LSZH SHF1 Sheath DNV- GL & ABS Approved
DNV-GL & ABS GSWB 24 OM3 Black SHF1 Datasheet Get Quote
Description 24 x OM3 Multimode Loose Tube QFCI LSZH SHF1 Sheath DNV- GL & ABS Approved
Approval DNV-GL & ABS
Armour GSWB
No. Cores 24
Fibre Grade OM3
Colour Black
Sheath SHF1
Downloads QFCI SHF1
Downloads Datasheet
FOM324QFCI2
24 x OM3 Multimode Loose Tube QFCI LSZH SHF2 Sheath DNV- GL & ABS Approved
DNV-GL & ABS GSWB 24 OM3 Black SHF2 Datasheet Get Quote
Description 24 x OM3 Multimode Loose Tube QFCI LSZH SHF2 Sheath DNV- GL & ABS Approved
Approval DNV-GL & ABS
Armour GSWB
No. Cores 24
Fibre Grade OM3
Colour Black
Sheath SHF2
Downloads QFCI SHF2
Downloads Datasheet
FOM324QFCIM
24 x OM3 Multimode Loose Tube QFCI LSZH MUD Resistant Sheath DNV- GL & ABS Approved
DNV-GL & ABS GSWB 24 OM3 Black MUD Datasheet Get Quote
Description 24 x OM3 Multimode Loose Tube QFCI LSZH MUD Resistant Sheath DNV- GL & ABS Approved
Approval DNV-GL & ABS
Armour GSWB
No. Cores 24
Fibre Grade OM3
Colour Black
Sheath MUD
Downloads QFCI MUD
Downloads Datasheet
FOM348QFCI1
48 x OM3 Multimode Loose Tube QFCI LSZH SHF1 Sheath DNV- GL & ABS Approved
DNV-GL & ABS GSWB 48 OM3 Black SHF1 Datasheet Get Quote
Description 48 x OM3 Multimode Loose Tube QFCI LSZH SHF1 Sheath DNV- GL & ABS Approved
Approval DNV-GL & ABS
Armour GSWB
No. Cores 48
Fibre Grade OM3
Colour Black
Sheath SHF1
Downloads QFCI SHF1
Downloads Datasheet
FOM348QFCI2
48 x OM3 Multimode Loose Tube QFCI LSZH SHF2 Sheath DNV- GL & ABS Approved
DNV-GL & ABS GSWB 48 OM3 Black SHF2 Datasheet Get Quote
Description 48 x OM3 Multimode Loose Tube QFCI LSZH SHF2 Sheath DNV- GL & ABS Approved
Approval DNV-GL & ABS
Armour GSWB
No. Cores 48
Fibre Grade OM3
Colour Black
Sheath SHF2
Downloads QFCI SHF2
Downloads Datasheet
FOM348QFCIM
48 x OM3 Multimode Loose Tube QFCI LSZH MUD Resistant Sheath DNV- GL & ABS Approved
DNV-GL & ABS GSWB 48 OM3 Black MUD Datasheet Get Quote
Description 48 x OM3 Multimode Loose Tube QFCI LSZH MUD Resistant Sheath DNV- GL & ABS Approved
Approval DNV-GL & ABS
Armour GSWB
No. Cores 48
Fibre Grade OM3
Colour Black
Sheath MUD
Downloads QFCI MUD
Downloads Datasheet
