RG6

code: F1332

  • 75 Ohm RG Coaxial
  • PVC or LSZH
  • Aluminium Foil Screen / Aluminium Wire Braid
The RG cables listed cover the majority of high frequency data and signal transmission requirements.

Other types can be supplied on request as can armoured versions or alternative sheath colours. Twin and multicore versions are available in some types.

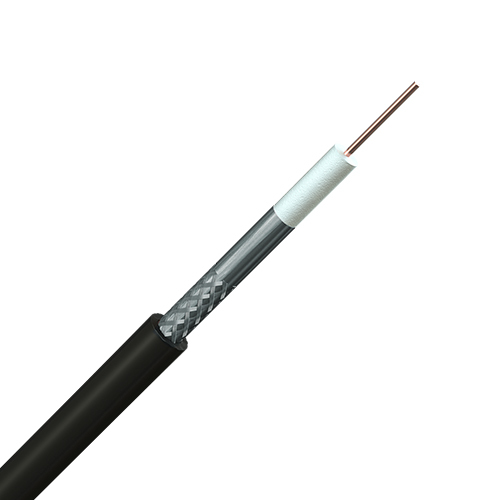

Image representative of product style, product supplied may vary.
AFS: Aluminium Foil Screen TFE: TetraFluoroEthylene FPE: Foamed Polyethylene
PEAS: Polyethylene Air Spaced LDPE: Low Density Polyethylene PVC: Polyvinyl Chloride
PTFE: PolyTetraFluoroEthylene PEC: Polyethylene Cellular PESS: Polyethylene Semi Solid
GFB: Glass Fibre Braid TCWB: Tinned Copper Wire Braid SPCWB: Silver Plated Copper Wire Braid
PCWB: Plain Copper Wire Braid AFS: Aluminium Foil Screen

Order by 4.30pm for delivery by

Code Description Alt to Belden Imp (Ohms) Screen Colour Sheath Downloads
390006
HD-SDI Coaxial Cable PVC
- 75 Overall Foil & Braid Black PVC Datasheet Get Quote
Description HD-SDI Coaxial Cable PVC
Alt to Belden -
Imp (Ohms) 75
Screen Overall Foil & Braid
Colour Black
Sheath PVC
Downloads Datasheet
390006C
RG6 Type 75 Ohm RG Coaxial Black PVC
- 75 Overall Foil & Braid Black PVC Datasheet Get Quote
Description RG6 Type 75 Ohm RG Coaxial Black PVC
Alt to Belden -
Imp (Ohms) 75
Screen Overall Foil & Braid
Colour Black
Sheath PVC
Downloads Datasheet
390006H
HD-SDI Coaxial LSHF
- 75 Overall Foil & Braid Black LSHF Datasheet Get Quote
Description HD-SDI Coaxial LSHF
Alt to Belden -
Imp (Ohms) 75
Screen Overall Foil & Braid
Colour Black
Sheath LSHF
Downloads Datasheet
390006Q
RG6 Quad 75 Ohm RG Coaxial Black PVC
3092A 75 Quad Shield Black PVC Datasheet Get Quote
Description RG6 Quad 75 Ohm RG Coaxial Black PVC
Alt to Belden 3092A
Imp (Ohms) 75
Screen Quad Shield
Colour Black
Sheath PVC
Downloads Datasheet
390006QH
RG6 Quad 75 Ohm RG Coaxial Black LSHF
3092A LSHF 75 Quad Shield Black LSHF Datasheet Get Quote
Description RG6 Quad 75 Ohm RG Coaxial Black LSHF
Alt to Belden 3092A LSHF
Imp (Ohms) 75
Screen Quad Shield
Colour Black
Sheath LSHF
Downloads Datasheet
