Unscreened Alarm

code: F1262

  • 4 core to 12 core
  • LSF or LSZH
Designed for inter-connecting sensors and control panels, alarm cables are widely used within the security industry.

These cables meet the BS 4737-3:30 standard, helping installers to determine the differences between types or grades of alarm cable.

Manufactured in white or black as standard, although other colours can be easily and quickly produced for quantities as low as 300m, for example to identify a circuit or blend with a colour scheme.

Cables held in stock include standard LSF, Low Smoke Halogen Free, screened and duct grade versions.

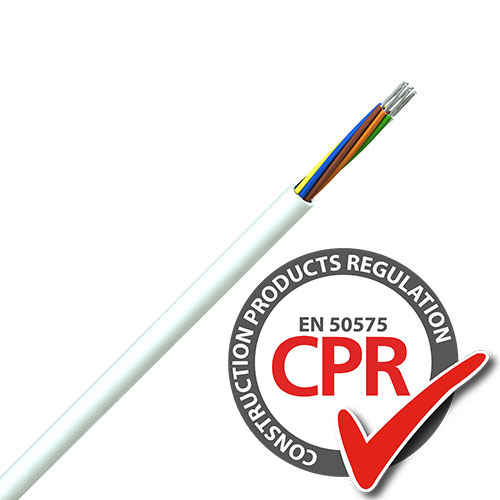

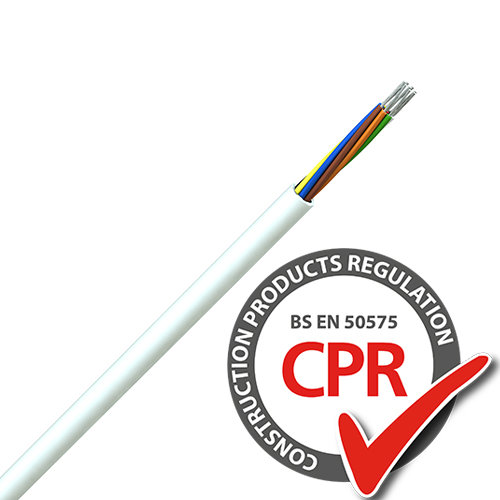

Image representative of product style, product supplied may vary.
LSF
Tinned copper wire strands, LSF insulation, LSF sheath

LSHF
Tinned copper wire strands, Low Smoke Halogen Free insulation, Low Smoke Halogen Free sheath
Temperature Rating:   0°C to +70°C
Conductor Size: 0.22mm²(24AWG)
Max Working Voltage: 50V
Max Current: 1 amp per core

Brown or black PVC alarm cable also available.

Standard packing 100m, 200m & 500m reels.
4-core: Red, blue, yellow, black
6-core: Red, blue, yellow, black, white, green
8-core: Red, blue, yellow, black, white, green, orange*, brown
12-core: Red, blue, yellow, black, white, green, orange*, brown
*On duct grade cables core 7 is violet.

Order by 4.30pm for delivery by

Code Description No. Cores mm² Colour Sheath CPR Class Downloads
39800204WH-E00
4 Core Alarm Cable Unscreened White LSHF
4 0.22 White LSHF Eca Get Quote
Description 4 Core Alarm Cable Unscreened White LSHF
No. Cores 4
mm² 0.22
Colour White
Sheath LSHF
CPR Class Eca
39800204WL-E00
4 Core Alarm Cable Unscreened White LSF
4 0.22 White LSF Eca Get Quote
Description 4 Core Alarm Cable Unscreened White LSF
No. Cores 4
mm² 0.22
Colour White
Sheath LSF
CPR Class Eca
39800206WH-E00
6 Core Alarm Cable Unscreened White LSHF
6 0.22 White LSHF Eca Get Quote
Description 6 Core Alarm Cable Unscreened White LSHF
No. Cores 6
mm² 0.22
Colour White
Sheath LSHF
CPR Class Eca
39800206WL-E00
6 Core Alarm Cable Unscreened White LSF
6 0.22 White LSF Eca Get Quote
Description 6 Core Alarm Cable Unscreened White LSF
No. Cores 6
mm² 0.22
Colour White
Sheath LSF
CPR Class Eca
39800208WH-E00
8 Core Alarm Cable Unscreened White LSHF
8 0.22 White LSHF Eca Get Quote
Description 8 Core Alarm Cable Unscreened White LSHF
No. Cores 8
mm² 0.22
Colour White
Sheath LSHF
CPR Class Eca
39800208WL-E00
8 Core Alarm Cable Unscreened White LSF
8 0.22 White LSF Eca Get Quote
Description 8 Core Alarm Cable Unscreened White LSF
No. Cores 8
mm² 0.22
Colour White
Sheath LSF
CPR Class Eca
39800212WH-E00
12 Core Alarm Cable Unscreened White LSHF
12 0.22 White LSHF Eca Get Quote
Description 12 Core Alarm Cable Unscreened White LSHF
No. Cores 12
mm² 0.22
Colour White
Sheath LSHF
CPR Class Eca
39800212WL-E00
12 Core Alarm Cable Unscreened White LSF
12 0.22 White LSF Eca Get Quote
Description 12 Core Alarm Cable Unscreened White LSF
No. Cores 12
mm² 0.22
Colour White
Sheath LSF
CPR Class Eca
