AICI OM4 50/125 Armoured Tight Buffered Fibre Optic Cable Marine DNV-GL & ABS Approved

Code: F1399

  • DNV-GL & ABS approved
  • Fully compliant to IEC
  • High speed data transmission
  • SHF1, SHF2 and SHF2-MUD NEK 606 sheaths
  • LSZH throughout
  • UV and Oil resistant
  • Flame Retardant
  • Weather Resistant
AICI fibre optic cable is armoured with a flexible steel braid for easy installation in restricted areas on rig and ships. Designed specifically for use offshore, AICI cable is tight buffered providing fast and easy termination without splicing. The AICI range of cables use marine grade sheath compounds in accordance with IEC 60092-359 enabling AICI to be used inside and outside reducing the need to change cable types. Designed for use on yachts, boats and larger commercial ships.

The AICI range of fibre optic cables are flame retardant to IEC 60332-3-22 Category A and 3rd party approved by DNV-GL & ABS ensuring quality and safety for a hazardous industry within the shipping and offshore sector.

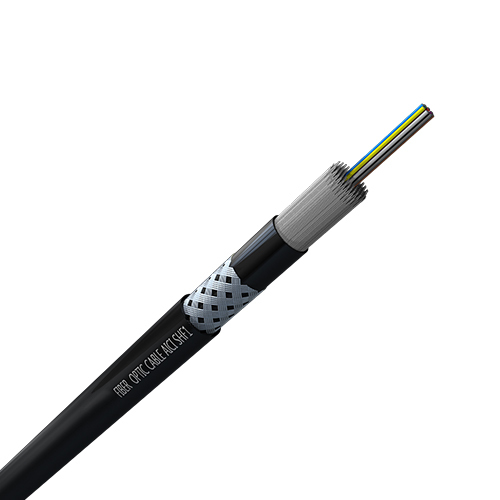

Image representative of product style, product supplied may vary.

Order by 4.30pm for delivery by

Code Description Approval Armour No. Cores Fibre Grade Colour Sheath Downloads
FOM404AICI1
4 x OM4 Tight Buffered AICI LSZH SHF1 Sheath DNV- GL & ABS Approved
DNV-GL & ABS GSWB 4 OM4 Black SHF1 Get Quote
Description 4 x OM4 Tight Buffered AICI LSZH SHF1 Sheath DNV- GL & ABS Approved
Approval DNV-GL & ABS
Armour GSWB
No. Cores 4
Fibre Grade OM4
Colour Black
Sheath SHF1
Downloads AICI SHF1
FOM404AICIM
4 x OM4 Tight Buffered AICI LSZH MUD Resistant Sheath DNV Approved
DNV-GL & ABS GSWB 4 OM4 Black MUD Get Quote
Description 4 x OM4 Tight Buffered AICI LSZH MUD Resistant Sheath DNV Approved
Approval DNV-GL & ABS
Armour GSWB
No. Cores 4
Fibre Grade OM4
Colour Black
Sheath MUD
Downloads AICI MUD
FOM406AICI1
6 x OM4 Tight Buffered AICI LSZH SHF1 Sheath DNV- GL & ABS Approved
DNV-GL & ABS GSWB 6 OM4 Black SHF1 Get Quote
Description 6 x OM4 Tight Buffered AICI LSZH SHF1 Sheath DNV- GL & ABS Approved
Approval DNV-GL & ABS
Armour GSWB
No. Cores 6
Fibre Grade OM4
Colour Black
Sheath SHF1
Downloads AICI SHF1
FOM406AICI2
6 x OM4 Tight Buffered AICI LSZH SHF2 Sheath DNV Approved
DNV-GL & ABS GSWB 6 OM4 Black SHF2 Get Quote
Description 6 x OM4 Tight Buffered AICI LSZH SHF2 Sheath DNV Approved
Approval DNV-GL & ABS
Armour GSWB
No. Cores 6
Fibre Grade OM4
Colour Black
Sheath SHF2
Downloads AICI SHF2
FOM406AICIM
6 x OM4 Tight Buffered AICI LSZH MUD Resistant Sheath DNV Approved
DNV-GL & ABS GSWB 6 OM4 Black MUD Get Quote
Description 6 x OM4 Tight Buffered AICI LSZH MUD Resistant Sheath DNV Approved
Approval DNV-GL & ABS
Armour GSWB
No. Cores 6
Fibre Grade OM4
Colour Black
Sheath MUD
Downloads AICI MUD
FOM408AICI1
8 x OM4 Tight Buffered AICI LSZH SHF1 Sheath DNV- GL & ABS Approved
DNV-GL & ABS GSWB 8 OM4 Black SHF1 Get Quote
Description 8 x OM4 Tight Buffered AICI LSZH SHF1 Sheath DNV- GL & ABS Approved
Approval DNV-GL & ABS
Armour GSWB
No. Cores 8
Fibre Grade OM4
Colour Black
Sheath SHF1
Downloads AICI SHF1
FOM408AICI2
8 x OM4 Tight Buffered AICI LSZH SHF2 Sheath DNV Approved
DNV-GL & ABS GSWB 8 OM4 Black SHF2 Get Quote
Description 8 x OM4 Tight Buffered AICI LSZH SHF2 Sheath DNV Approved
Approval DNV-GL & ABS
Armour GSWB
No. Cores 8
Fibre Grade OM4
Colour Black
Sheath SHF2
Downloads AICI SHF2
FOM408AICIM
8 x OM4 Tight Buffered AICI LSZH MUD Resistant Sheath DNV Approved
DNV-GL & ABS GSWB 8 OM4 Black MUD Get Quote
Description 8 x OM4 Tight Buffered AICI LSZH MUD Resistant Sheath DNV Approved
Approval DNV-GL & ABS
Armour GSWB
No. Cores 8
Fibre Grade OM4
Colour Black
Sheath MUD
Downloads AICI MUD
FOM412AICI1
12 x OM4 Tight Buffered AICI LSZH SHF1 Sheath DNV- GL & ABS Approved
DNV-GL & ABS GSWB 12 OM4 Black SHF1 Get Quote
Description 12 x OM4 Tight Buffered AICI LSZH SHF1 Sheath DNV- GL & ABS Approved
Approval DNV-GL & ABS
Armour GSWB
No. Cores 12
Fibre Grade OM4
Colour Black
Sheath SHF1
Downloads AICI SHF1
FOM412AICI2
12 x OM4 Tight Buffered AICI LSZH SHF2 Sheath DNV Approved
DNV-GL & ABS GSWB 12 OM4 Black SHF2 Get Quote
Description 12 x OM4 Tight Buffered AICI LSZH SHF2 Sheath DNV Approved
Approval DNV-GL & ABS
Armour GSWB
No. Cores 12
Fibre Grade OM4
Colour Black
Sheath SHF2
Downloads AICI SHF2
FOM412AICIM
12 x OM4 Tight Buffered AICI LSZH MUD Resistant Sheath DNV Approved
DNV-GL & ABS GSWB 12 OM4 Black MUD Get Quote
Description 12 x OM4 Tight Buffered AICI LSZH MUD Resistant Sheath DNV Approved
Approval DNV-GL & ABS
Armour GSWB
No. Cores 12
Fibre Grade OM4
Colour Black
Sheath MUD
Downloads AICI MUD
FOM424AICI1
24 x OM4 Tight Buffered AICI LSZH SHF1 Sheath DNV- GL & ABS Approved
DNV-GL & ABS GSWB 24 OM4 Black SHF1 Get Quote
Description 24 x OM4 Tight Buffered AICI LSZH SHF1 Sheath DNV- GL & ABS Approved
Approval DNV-GL & ABS
Armour GSWB
No. Cores 24
Fibre Grade OM4
Colour Black
Sheath SHF1
Downloads AICI SHF1
FOM424AICI2
24 x OM4 Tight Buffered AICI LSZH SHF2 Sheath DNV Approved
DNV-GL & ABS GSWB 24 OM4 Black SHF2 Get Quote
Description 24 x OM4 Tight Buffered AICI LSZH SHF2 Sheath DNV Approved
Approval DNV-GL & ABS
Armour GSWB
No. Cores 24
Fibre Grade OM4
Colour Black
Sheath SHF2
Downloads AICI SHF2
FOM424AICIM
24 x OM4 Tight Buffered AICI LSZH MUD Resistant Sheath DNV Approved
DNV-GL & ABS GSWB 24 OM4 Black MUD Get Quote
Description 24 x OM4 Tight Buffered AICI LSZH MUD Resistant Sheath DNV Approved
Approval DNV-GL & ABS
Armour GSWB
No. Cores 24
Fibre Grade OM4
Colour Black
Sheath MUD
Downloads AICI MUD
