LiYCY Screened Multicore Number Coded

Code: F1456

  • Versatile, flexible control cable
  • Wide range of sizes and core counts
  • Tinned copper wire braid screen, providing protection from electromagnetic interference (EMI)
  • Highly flexible through use of use of fine copper wire stranding and pliable PVC compounds
LiYCY has a tinned copper wire braid screen, providing protection from electromagnetic interference (EMI) and reducing electromagnetic radiation (EMR). This can be important when trying to ensure electromagnetic compatibility (EMC).

For Low Smoke Halogen Free types, please see the LF-315 & LF-329 range.

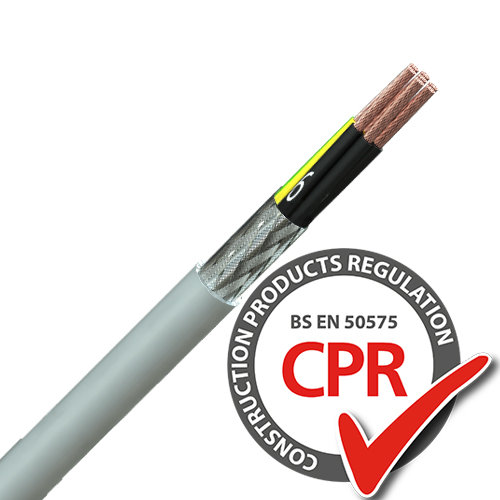

Image representative of product style, product supplied may vary.
Fine copper wire strands to IEC 60228.
PVC insulation colour coded.
Cores twisted together with overall polyester tape and tinned copper wire braid.
Grey PVC outer sheath.
Voltage Rating:
0.14mm² - 0.34mm²: 0.5mm² - 1.5mm²: 2.5mm² - 6mm²:
Working: 250V Working: 300V Working: 500V
Test: 1000V Test: 2000V Test: 2000V
Temperature Rating:
Static: -20°C to +80°C
Flexing: -5°C to +70°C
Minimum Bending Radius:
Fixed: 6 x cable diameter
Flexing: 15 x cable diameter
Colour Code: HD308 S2 (BS7671)

Order by 4.30pm for delivery by

Code Description No. Cores mm² Screen Colour Sheath CPR Class Downloads
32000502
2 x 0.5mm² LiYCY PVC Screened Multicore Grey Number Coded
2 0.5 Overall Braid Grey PVC - Get Quote
Description 2 x 0.5mm² LiYCY PVC Screened Multicore Grey Number Coded
No. Cores 2
mm² 0.5
Screen Overall Braid
Colour Grey
Sheath PVC
CPR Class -
32000503
3 x 0.5mm² LiYCY PVC Screened Multicore Grey Number Coded
3 0.5 Overall Braid Grey PVC - Get Quote
Description 3 x 0.5mm² LiYCY PVC Screened Multicore Grey Number Coded
No. Cores 3
mm² 0.5
Screen Overall Braid
Colour Grey
Sheath PVC
CPR Class -
32000504
4 x 0.5mm² LiYCY PVC Screened Multicore Grey Number Coded
4 0.5 Overall Braid Grey PVC - Get Quote
Description 4 x 0.5mm² LiYCY PVC Screened Multicore Grey Number Coded
No. Cores 4
mm² 0.5
Screen Overall Braid
Colour Grey
Sheath PVC
CPR Class -
32000507-E00
7 x 0.5mm² LiYCY PVC Screened Multicore Grey Number Coded
7 0.5 Overall Braid Grey PVC Eca Get Quote
Description 7 x 0.5mm² LiYCY PVC Screened Multicore Grey Number Coded
No. Cores 7
mm² 0.5
Screen Overall Braid
Colour Grey
Sheath PVC
CPR Class Eca
32000512
12 x 0.5mm² LiYCY PVC Screened Multicore Grey Number Coded
12 0.5 Overall Braid Grey PVC - Get Quote
Description 12 x 0.5mm² LiYCY PVC Screened Multicore Grey Number Coded
No. Cores 12
mm² 0.5
Screen Overall Braid
Colour Grey
Sheath PVC
CPR Class -
32000518
18 x 0.5mm² LiYCY PVC Screened Multicore Grey Number Coded
18 0.5 Overall Braid Grey PVC - Get Quote
Description 18 x 0.5mm² LiYCY PVC Screened Multicore Grey Number Coded
No. Cores 18
mm² 0.5
Screen Overall Braid
Colour Grey
Sheath PVC
CPR Class -
32000525
25 x 0.5mm² LiYCY PVC Screened Multicore Grey Number Coded
25 0.5 Overall Braid Grey PVC - Get Quote
Description 25 x 0.5mm² LiYCY PVC Screened Multicore Grey Number Coded
No. Cores 25
mm² 0.5
Screen Overall Braid
Colour Grey
Sheath PVC
CPR Class -
32000702-E00
2 x 0.75mm² LiYCY PVC Screened Multicore Grey Number Coded
2 0.75 Overall Braid Grey PVC Eca Get Quote
Description 2 x 0.75mm² LiYCY PVC Screened Multicore Grey Number Coded
No. Cores 2
mm² 0.75
Screen Overall Braid
Colour Grey
Sheath PVC
CPR Class Eca
32000703-E00
3 x 0.75mm² LiYCY PVC Screened Multicore Grey Number Coded
3 0.75 Overall Braid Grey PVC Eca Get Quote
Description 3 x 0.75mm² LiYCY PVC Screened Multicore Grey Number Coded
No. Cores 3
mm² 0.75
Screen Overall Braid
Colour Grey
Sheath PVC
CPR Class Eca
32000704-E00
4 x 0.75mm² LiYCY PVC Screened Multicore Grey Number Coded
4 0.75 Overall Braid Grey PVC Eca Get Quote
Description 4 x 0.75mm² LiYCY PVC Screened Multicore Grey Number Coded
No. Cores 4
mm² 0.75
Screen Overall Braid
Colour Grey
Sheath PVC
CPR Class Eca
32000705
5 x 0.75mm² LiYCY PVC Screened Multicore Grey Number Coded
5 0.75 Overall Braid Grey PVC - Get Quote
Description 5 x 0.75mm² LiYCY PVC Screened Multicore Grey Number Coded
No. Cores 5
mm² 0.75
Screen Overall Braid
Colour Grey
Sheath PVC
CPR Class -
32000707-E00
7 x 0.75mm² LiYCY PVC Screened Multicore Grey Number Coded
7 0.75 Overall Braid Grey PVC Eca Get Quote
Description 7 x 0.75mm² LiYCY PVC Screened Multicore Grey Number Coded
No. Cores 7
mm² 0.75
Screen Overall Braid
Colour Grey
Sheath PVC
CPR Class Eca
32000712
12 x 0.75mm² LiYCY PVC Screened Multicore Grey Number Coded
12 0.75 Overall Braid Grey PVC - Get Quote
Description 12 x 0.75mm² LiYCY PVC Screened Multicore Grey Number Coded
No. Cores 12
mm² 0.75
Screen Overall Braid
Colour Grey
Sheath PVC
CPR Class -
32000718-E00
18 x 0.75mm² LiYCY PVC Screened Multicore Grey Number Coded
18 0.75 Overall Braid Grey PVC Eca Get Quote
Description 18 x 0.75mm² LiYCY PVC Screened Multicore Grey Number Coded
No. Cores 18
mm² 0.75
Screen Overall Braid
Colour Grey
Sheath PVC
CPR Class Eca
32000725
25 x 0.75mm² LiYCY PVC Screened Multicore Grey Number Coded
25 0.75 Overall Braid Grey PVC - Get Quote
Description 25 x 0.75mm² LiYCY PVC Screened Multicore Grey Number Coded
No. Cores 25
mm² 0.75
Screen Overall Braid
Colour Grey
Sheath PVC
CPR Class -
32001002-E00
2 x 1mm² LiYCY PVC Screened Multicore Grey Number Coded
2 1 Overall Braid Grey PVC Eca Get Quote
Description 2 x 1mm² LiYCY PVC Screened Multicore Grey Number Coded
No. Cores 2
mm² 1
Screen Overall Braid
Colour Grey
Sheath PVC
CPR Class Eca
32001003-E00
3 x 1mm² LiYCY PVC Screened Multicore Grey Number Coded
3 1 Overall Braid Grey PVC Eca Get Quote
Description 3 x 1mm² LiYCY PVC Screened Multicore Grey Number Coded
No. Cores 3
mm² 1
Screen Overall Braid
Colour Grey
Sheath PVC
CPR Class Eca
32001004-E00
4 x 1mm² LiYCY PVC Screened Multicore Grey Number Coded
4 1 Overall Braid Grey PVC Eca Get Quote
Description 4 x 1mm² LiYCY PVC Screened Multicore Grey Number Coded
No. Cores 4
mm² 1
Screen Overall Braid
Colour Grey
Sheath PVC
CPR Class Eca
32001005
5 x 1mm² LiYCY PVC Screened Multicore Grey Number Coded
5 1 Overall Braid Grey PVC - Get Quote
Description 5 x 1mm² LiYCY PVC Screened Multicore Grey Number Coded
No. Cores 5
mm² 1
Screen Overall Braid
Colour Grey
Sheath PVC
CPR Class -
32001007
7 x 1mm² LiYCY PVC Screened Multicore Grey Number Coded
7 1 Overall Braid Grey PVC - Get Quote
Description 7 x 1mm² LiYCY PVC Screened Multicore Grey Number Coded
No. Cores 7
mm² 1
Screen Overall Braid
Colour Grey
Sheath PVC
CPR Class -
32001012
12 x 1mm² LiYCY PVC Screened Multicore Grey Number Coded
12 1 Overall Braid Grey PVC - Get Quote
Description 12 x 1mm² LiYCY PVC Screened Multicore Grey Number Coded
No. Cores 12
mm² 1
Screen Overall Braid
Colour Grey
Sheath PVC
CPR Class -
32001018
18 x 1mm² LiYCY PVC Screened Multicore Grey Number Coded
18 1 Overall Braid Grey PVC - Get Quote
Description 18 x 1mm² LiYCY PVC Screened Multicore Grey Number Coded
No. Cores 18
mm² 1
Screen Overall Braid
Colour Grey
Sheath PVC
CPR Class -
32001025
25 x 1mm² LiYCY PVC Screened Multicore Grey Number Coded
25 1 Overall Braid Grey PVC - Get Quote
Description 25 x 1mm² LiYCY PVC Screened Multicore Grey Number Coded
No. Cores 25
mm² 1
Screen Overall Braid
Colour Grey
Sheath PVC
CPR Class -
32001502-E00
2 x 1.5mm² LiYCY PVC Screened Multicore Grey Number Coded
2 1.5 Overall Braid Grey PVC Eca Get Quote
Description 2 x 1.5mm² LiYCY PVC Screened Multicore Grey Number Coded
No. Cores 2
mm² 1.5
Screen Overall Braid
Colour Grey
Sheath PVC
CPR Class Eca
32001503
3 x 1.5mm² LiYCY PVC Screened Multicore Grey Number Coded
3 1.5 Overall Braid Grey PVC - Get Quote
Description 3 x 1.5mm² LiYCY PVC Screened Multicore Grey Number Coded
No. Cores 3
mm² 1.5
Screen Overall Braid
Colour Grey
Sheath PVC
CPR Class -
32001504-E00
4 x 1.5mm² LiYCY PVC Screened Multicore Grey Number Coded
4 1.5 Overall Braid Grey PVC Eca Get Quote
Description 4 x 1.5mm² LiYCY PVC Screened Multicore Grey Number Coded
No. Cores 4
mm² 1.5
Screen Overall Braid
Colour Grey
Sheath PVC
CPR Class Eca
32001505
5 x 1.5mm² LiYCY PVC Screened Multicore Grey Number Coded
5 1.5 Overall Braid Grey PVC - Get Quote
Description 5 x 1.5mm² LiYCY PVC Screened Multicore Grey Number Coded
No. Cores 5
mm² 1.5
Screen Overall Braid
Colour Grey
Sheath PVC
CPR Class -
32001507
7 x 1.5mm² LiYCY PVC Screened Multicore Grey Number Coded
7 1.5 Overall Braid Grey PVC - Get Quote
Description 7 x 1.5mm² LiYCY PVC Screened Multicore Grey Number Coded
No. Cores 7
mm² 1.5
Screen Overall Braid
Colour Grey
Sheath PVC
CPR Class -
32001512
12 x 1.5mm² LiYCY PVC Screened Multicore Grey Number Coded
12 1.5 Overall Braid Grey PVC - Get Quote
Description 12 x 1.5mm² LiYCY PVC Screened Multicore Grey Number Coded
No. Cores 12
mm² 1.5
Screen Overall Braid
Colour Grey
Sheath PVC
CPR Class -
32001518
18 x 1.5mm² LiYCY PVC Screened Multicore Grey Number Coded
18 1.5 Overall Braid Grey PVC - Get Quote
Description 18 x 1.5mm² LiYCY PVC Screened Multicore Grey Number Coded
No. Cores 18
mm² 1.5
Screen Overall Braid
Colour Grey
Sheath PVC
CPR Class -
32001525
25 x 1.5mm² LiYCY PVC Screened Multicore Grey Number Coded
25 1.5 Overall Braid Grey PVC - Get Quote
Description 25 x 1.5mm² LiYCY PVC Screened Multicore Grey Number Coded
No. Cores 25
mm² 1.5
Screen Overall Braid
Colour Grey
Sheath PVC
CPR Class -
32001530
30 x 1.5mm² LiYCY PVC Screened Multicore Grey Number Coded
30 1.5 Overall Braid Grey PVC - Get Quote
Description 30 x 1.5mm² LiYCY PVC Screened Multicore Grey Number Coded
No. Cores 30
mm² 1.5
Screen Overall Braid
Colour Grey
Sheath PVC
CPR Class -
32001542
42 x 1.5mm² LiYCY PVC Screened Multicore Grey Number Coded
42 1.5 Overall Braid Grey PVC - Get Quote
Description 42 x 1.5mm² LiYCY PVC Screened Multicore Grey Number Coded
No. Cores 42
mm² 1.5
Screen Overall Braid
Colour Grey
Sheath PVC
CPR Class -
32002502
2 x 2.5mm² LiYCY PVC Screened Multicore Grey Number Coded
2 2.5 Overall Braid Grey PVC - Get Quote
Description 2 x 2.5mm² LiYCY PVC Screened Multicore Grey Number Coded
No. Cores 2
mm² 2.5
Screen Overall Braid
Colour Grey
Sheath PVC
CPR Class -
32002503
3 x 2.5mm² LiYCY PVC Screened Multicore Grey Number Coded
3 2.5 Overall Braid Grey PVC - Get Quote
Description 3 x 2.5mm² LiYCY PVC Screened Multicore Grey Number Coded
No. Cores 3
mm² 2.5
Screen Overall Braid
Colour Grey
Sheath PVC
CPR Class -
32002504
4 x 2.5mm² LiYCY PVC Screened Multicore Grey Number Coded
4 2.5 Overall Braid Grey PVC - Get Quote
Description 4 x 2.5mm² LiYCY PVC Screened Multicore Grey Number Coded
No. Cores 4
mm² 2.5
Screen Overall Braid
Colour Grey
Sheath PVC
CPR Class -
32002505
5 x 2.5mm² LiYCY PVC Screened Multicore Grey Number Coded
5 2.5 Overall Braid Grey PVC - Get Quote
Description 5 x 2.5mm² LiYCY PVC Screened Multicore Grey Number Coded
No. Cores 5
mm² 2.5
Screen Overall Braid
Colour Grey
Sheath PVC
CPR Class -
32002507
7 x 2.5mm² LiYCY PVC Screened Multicore Grey Number Coded
7 2.5 Overall Braid Grey PVC - Get Quote
Description 7 x 2.5mm² LiYCY PVC Screened Multicore Grey Number Coded
No. Cores 7
mm² 2.5
Screen Overall Braid
Colour Grey
Sheath PVC
CPR Class -
32002512
12 x 2.5mm² LiYCY PVC Screened Multicore Grey Number Coded
12 2.5 Overall Braid Grey PVC - Get Quote
Description 12 x 2.5mm² LiYCY PVC Screened Multicore Grey Number Coded
No. Cores 12
mm² 2.5
Screen Overall Braid
Colour Grey
Sheath PVC
CPR Class -
32002518
18 x 2.5mm² LiYCY PVC Screened Multicore Grey Number Coded
18 2.5 Overall Braid Grey PVC - Get Quote
Description 18 x 2.5mm² LiYCY PVC Screened Multicore Grey Number Coded
No. Cores 18
mm² 2.5
Screen Overall Braid
Colour Grey
Sheath PVC
CPR Class -
32004003
3 x 4mm² LiYCY PVC Screened Multicore Grey Number Coded
3 4 Overall Braid Grey PVC - Get Quote
Description 3 x 4mm² LiYCY PVC Screened Multicore Grey Number Coded
No. Cores 3
mm² 4
Screen Overall Braid
Colour Grey
Sheath PVC
CPR Class -
32004004
4 x 4mm² LiYCY PVC Screened Multicore Grey Number Coded
4 4 Overall Braid Grey PVC - Get Quote
Description 4 x 4mm² LiYCY PVC Screened Multicore Grey Number Coded
No. Cores 4
mm² 4
Screen Overall Braid
Colour Grey
Sheath PVC
CPR Class -
32004005
5 x 4mm² LiYCY PVC Screened Multicore Grey Number Coded
5 4 Overall Braid Grey PVC - Get Quote
Description 5 x 4mm² LiYCY PVC Screened Multicore Grey Number Coded
No. Cores 5
mm² 4
Screen Overall Braid
Colour Grey
Sheath PVC
CPR Class -
32004007
7 x 4mm² LiYCY PVC Screened Multicore Grey Number Coded
7 4 Overall Braid Grey PVC - Get Quote
Description 7 x 4mm² LiYCY PVC Screened Multicore Grey Number Coded
No. Cores 7
mm² 4
Screen Overall Braid
Colour Grey
Sheath PVC
CPR Class -
32006003
3 x 6mm² LiYCY PVC Screened Multicore Grey Number Coded
3 6 Overall Braid Grey PVC - Get Quote
Description 3 x 6mm² LiYCY PVC Screened Multicore Grey Number Coded
No. Cores 3
mm² 6
Screen Overall Braid
Colour Grey
Sheath PVC
CPR Class -
32006004
4 x 6mm² LiYCY PVC Screened Multicore Grey Number Coded
4 6 Overall Braid Grey PVC - Get Quote
Description 4 x 6mm² LiYCY PVC Screened Multicore Grey Number Coded
No. Cores 4
mm² 6
Screen Overall Braid
Colour Grey
Sheath PVC
CPR Class -
32006005
5 x 6mm² LiYCY PVC Screened Multicore Grey Number Coded
5 6 Overall Braid Grey PVC - Get Quote
Description 5 x 6mm² LiYCY PVC Screened Multicore Grey Number Coded
No. Cores 5
mm² 6
Screen Overall Braid
Colour Grey
Sheath PVC
CPR Class -
32010004
4 x 10mm² LiYCY PVC Screened Multicore Grey Number Coded
4 10 Overall Braid Grey PVC - Get Quote
Description 4 x 10mm² LiYCY PVC Screened Multicore Grey Number Coded
No. Cores 4
mm² 10
Screen Overall Braid
Colour Grey
Sheath PVC
CPR Class -
32010005
5 x 10mm² LiYCY PVC Screened Multicore Grey Number Coded
5 10 Overall Braid Grey PVC - Get Quote
Description 5 x 10mm² LiYCY PVC Screened Multicore Grey Number Coded
No. Cores 5
mm² 10
Screen Overall Braid
Colour Grey
Sheath PVC
CPR Class -
32016004
4 x 16mm² LiYCY PVC Screened Multicore Grey Number Coded
4 16 Overall Braid Grey PVC - Get Quote
Description 4 x 16mm² LiYCY PVC Screened Multicore Grey Number Coded
No. Cores 4
mm² 16
Screen Overall Braid
Colour Grey
Sheath PVC
CPR Class -
32016005
5 x 16mm² LiYCY PVC Screened Multicore Grey Number Coded
5 16 Overall Braid Grey PVC - Get Quote
Description 5 x 16mm² LiYCY PVC Screened Multicore Grey Number Coded
No. Cores 5
mm² 16
Screen Overall Braid
Colour Grey
Sheath PVC
CPR Class -
