XAT-331 Fire Resistant Armoured Instrumentation Cable Individual Screen to IEC 60092-376

code: G1452

  • IEC 60092-376 Standard
  • Fire Resistant
  • SHF1 Sheath
  • 150/250V Rated
  • DNV-GL & ABS Approved
XAT-331 armoured instrumentation marine cables are manufactured in accordance with IEC 60092 and IEC 60331-21 providing circuit integrity to critical circuits on ships and rigs. XAT-U-331 offers a combined braid screen copper armour whilst XAT-I includes an additional foil screen around each pair to prevent crosstalk. The cable is remarkably flexible resulting in easy installation in confined spaces and through difficult routes.

Manufacturers alternative reference: Nexans TCX (i) 331, Helkama RFE-FRHF (i), Prysmian HFX-ISA/Fr

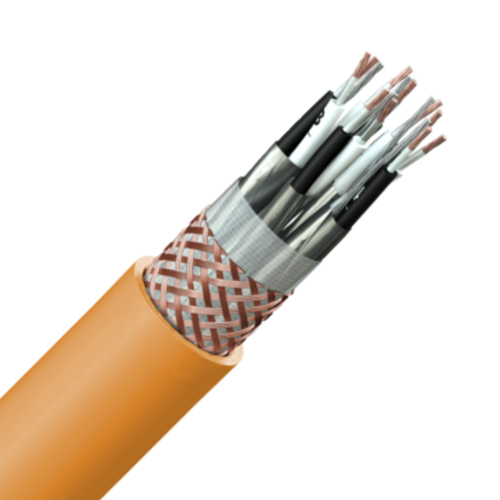

Image representative of product style, product supplied may vary.
Voltage Rating:  150/250V (300V)
Conductor Stranding:
IEC 60228 Class 2 or Class 5, plain copper or tinned copper
Temperature Rating: -40°C to +85°C or +90°C
Bending Radius Static:6 x overall diameter
Flame Retardant: IEC 60332-1-2, IEC 60332-3-22 Cat A
Fire Resistant:IEC 60331-21
Smoke Emission:
IEC 61034-1 & 2
Halogen Emission: IEC 60754-1 & 2
Manufactured To: IEC 60092 series
3rd Party Approvals:
Lloyds, DNV, ABS, BV and Rina.

Approvals may vary between manufacture brands. Please tell us at time of enquiry if you have a specific requirement.

Part codes below are for cables with a grey sheath.

For a blue sheath please suffix the part code with '01' or for an orange sheath please suffix the part code with '08'.

Construction and technical information may vary between manufacturer brands. Please check at the time of order.

XAT-I-331: Copper or tinned copper conductors, mica glass tape (or silicone insulation), XLPE insulation, each pair aluminium/polyester foil screened with a drain wire, bedding filler tape, copper wire braid screen or tinned copper wire braid & armour, SHF1 Low Smoke Halogen Free sheath.

Construction and technical information may vary between manufacturer brands. Please check at the time of order.

Conductor Size: 0.75mm²  1.5mm²
Conductor Resistance:
<26.7 Ohms/km
<13.7 Ohms/km
Pair Capacitance @ 800Hz
Individual Screening: 70nF/km
90nF/km

Construction and technical information may vary between manufacturer brands. Please check at the time of order.

Pairs – coloured and numbered. This can vary depending on the manufacturer, please specify if you have a preference.

Construction and technical information may vary between manufacturer brands. Please check at the time of order.

Order by 4.30pm for delivery by

Code Description mm² No. Pairs Screen Colour Sheath Approval Alternative to Downloads
XATI0702PM
2 x 2 x 0.75mm² XAT-331 Instrumentation to IEC 60092-376 Individually Screened Pairs Grey LSHF
0.75 2 Individual & Overall Foil Grey LSHF DNV-GL & ABS TCX (i) 331
RFE-FRHF (i)
HFX-ISA/Fr
SH-CI-I-A-F
Datasheet Get Quote
Description 2 x 2 x 0.75mm² XAT-331 Instrumentation to IEC 60092-376 Individually Screened Pairs Grey LSHF
mm² 0.75
No. Pairs 2
Screen Individual & Overall Foil
Colour Grey
Sheath LSHF
Downloads SH-CI-I-A-F
Approval DNV-GL & ABS
Alternative to TCX (i) 331, RFE-FRHF (i), HFX-ISA/Fr, SH-CI-I-A-F
Downloads Datasheet
XATI1502PM
2 x 2 x 1.5mm² XAT-331 Instrumentation to IEC 60092-376 Individually Screened Pairs Grey LSHF
1.5 2 Individual & Overall Foil Grey LSHF DNV-GL & ABS TCX (i) 331
RFE-FRHF (i)
HFX-ISA/Fr
SH-CI-I-A-F
Datasheet Get Quote
Description 2 x 2 x 1.5mm² XAT-331 Instrumentation to IEC 60092-376 Individually Screened Pairs Grey LSHF
mm² 1.5
No. Pairs 2
Screen Individual & Overall Foil
Colour Grey
Sheath LSHF
Downloads SH-CI-I-A-F
Approval DNV-GL & ABS
Alternative to TCX (i) 331, RFE-FRHF (i), HFX-ISA/Fr, SH-CI-I-A-F
Downloads Datasheet
XATI0704PM
4 x 2 x 0.75mm² XAT-331 Instrumentation to IEC 60092-376 Individually Screened Pairs Grey LSHF
0.75 4 Individual & Overall Foil Grey LSHF DNV-GL & ABS TCX (i) 331
RFE-FRHF (i)
HFX-ISA/Fr
SH-CI-I-A-F
Datasheet Get Quote
Description 4 x 2 x 0.75mm² XAT-331 Instrumentation to IEC 60092-376 Individually Screened Pairs Grey LSHF
mm² 0.75
No. Pairs 4
Screen Individual & Overall Foil
Colour Grey
Sheath LSHF
Downloads SH-CI-I-A-F
Approval DNV-GL & ABS
Alternative to TCX (i) 331, RFE-FRHF (i), HFX-ISA/Fr, SH-CI-I-A-F
Downloads Datasheet
XATI1504PM
4 x 2 x 1.5mm² XAT-331 Instrumentation to IEC 60092-376 Individually Screened Pairs Grey LSHF
1.5 4 Individual & Overall Foil Grey LSHF DNV-GL & ABS TCX (i) 331
RFE-FRHF (i)
HFX-ISA/Fr
SH-CI-I-A-F
Datasheet Get Quote
Description 4 x 2 x 1.5mm² XAT-331 Instrumentation to IEC 60092-376 Individually Screened Pairs Grey LSHF
mm² 1.5
No. Pairs 4
Screen Individual & Overall Foil
Colour Grey
Sheath LSHF
Downloads SH-CI-I-A-F
Approval DNV-GL & ABS
Alternative to TCX (i) 331, RFE-FRHF (i), HFX-ISA/Fr, SH-CI-I-A-F
Downloads Datasheet
XATI0705PM
5 x 2 x 0.75mm² XAT-331 Instrumentation to IEC 60092-376 Individually Screened Pairs Grey LSHF
0.75 5 Individual & Overall Foil Grey LSHF DNV-GL & ABS TCX (i) 331
RFE-FRHF (i)
HFX-ISA/Fr
SH-CI-I-A-F
Datasheet Get Quote
Description 5 x 2 x 0.75mm² XAT-331 Instrumentation to IEC 60092-376 Individually Screened Pairs Grey LSHF
mm² 0.75
No. Pairs 5
Screen Individual & Overall Foil
Colour Grey
Sheath LSHF
Downloads SH-CI-I-A-F
Approval DNV-GL & ABS
Alternative to TCX (i) 331, RFE-FRHF (i), HFX-ISA/Fr, SH-CI-I-A-F
Downloads Datasheet
XATI0707PM
7 x 2 x 0.75mm² XAT-331 Instrumentation to IEC 60092-376 Individually Screened Pairs Grey LSHF
0.75 7 Individual & Overall Foil Grey LSHF DNV-GL & ABS TCX (i) 331
RFE-FRHF (i)
HFX-ISA/Fr
SH-CI-I-A-F
Datasheet Get Quote
Description 7 x 2 x 0.75mm² XAT-331 Instrumentation to IEC 60092-376 Individually Screened Pairs Grey LSHF
mm² 0.75
No. Pairs 7
Screen Individual & Overall Foil
Colour Grey
Sheath LSHF
Downloads SH-CI-I-A-F
Approval DNV-GL & ABS
Alternative to TCX (i) 331, RFE-FRHF (i), HFX-ISA/Fr, SH-CI-I-A-F
Downloads Datasheet
XATI1507PM
7 x 2 x 1.5mm² XAT-331 Instrumentation to IEC 60092-376 Individually Screened Pairs Grey LSHF
1.5 7 Individual & Overall Foil Grey LSHF DNV-GL & ABS TCX (i) 331
RFE-FRHF (i)
HFX-ISA/Fr
SH-CI-I-A-F
Datasheet Get Quote
Description 7 x 2 x 1.5mm² XAT-331 Instrumentation to IEC 60092-376 Individually Screened Pairs Grey LSHF
mm² 1.5
No. Pairs 7
Screen Individual & Overall Foil
Colour Grey
Sheath LSHF
Downloads SH-CI-I-A-F
Approval DNV-GL & ABS
Alternative to TCX (i) 331, RFE-FRHF (i), HFX-ISA/Fr, SH-CI-I-A-F
Downloads Datasheet
XATI0708PM
8 x 2 x 0.75mm² XAT-331 Instrumentation to IEC 60092-376 Individually Screened Pairs Grey LSHF
0.75 8 Individual & Overall Foil Grey LSHF DNV-GL & ABS TCX (i) 331
RFE-FRHF (i)
HFX-ISA/Fr
SH-CI-I-A-F
Datasheet Get Quote
Description 8 x 2 x 0.75mm² XAT-331 Instrumentation to IEC 60092-376 Individually Screened Pairs Grey LSHF
mm² 0.75
No. Pairs 8
Screen Individual & Overall Foil
Colour Grey
Sheath LSHF
Downloads SH-CI-I-A-F
Approval DNV-GL & ABS
Alternative to TCX (i) 331, RFE-FRHF (i), HFX-ISA/Fr, SH-CI-I-A-F
Downloads Datasheet
XATI1508PM
8 x 2 x 1.5mm² XAT-331 Instrumentation to IEC 60092-376 Individually Screened Pairs Grey LSHF
1.5 8 Individual & Overall Foil Grey LSHF DNV-GL & ABS TCX (i) 331
RFE-FRHF (i)
HFX-ISA/Fr
SH-CI-I-A-F
Datasheet Get Quote
Description 8 x 2 x 1.5mm² XAT-331 Instrumentation to IEC 60092-376 Individually Screened Pairs Grey LSHF
mm² 1.5
No. Pairs 8
Screen Individual & Overall Foil
Colour Grey
Sheath LSHF
Downloads SH-CI-I-A-F
Approval DNV-GL & ABS
Alternative to TCX (i) 331, RFE-FRHF (i), HFX-ISA/Fr, SH-CI-I-A-F
Downloads Datasheet
XATI0710PM
10 x 2 x 0.75mm² XAT-331 Instrumentation to IEC 60092-376 Individually Screened Pairs Grey LSHF
0.75 10 Individual & Overall Foil Grey LSHF DNV-GL & ABS TCX (i) 331
RFE-FRHF (i)
HFX-ISA/Fr
SH-CI-I-A-F
Datasheet Get Quote
Description 10 x 2 x 0.75mm² XAT-331 Instrumentation to IEC 60092-376 Individually Screened Pairs Grey LSHF
mm² 0.75
No. Pairs 10
Screen Individual & Overall Foil
Colour Grey
Sheath LSHF
Downloads SH-CI-I-A-F
Approval DNV-GL & ABS
Alternative to TCX (i) 331, RFE-FRHF (i), HFX-ISA/Fr, SH-CI-I-A-F
Downloads Datasheet
XATI1510PM
10 x 2 x 1.5mm² XAT-331 Instrumentation to IEC 60092-376 Individually Screened Pairs Grey LSHF
1.5 10 Individual & Overall Foil Grey LSHF DNV-GL & ABS TCX (i) 331
RFE-FRHF (i)
HFX-ISA/Fr
SH-CI-I-A-F
Datasheet Get Quote
Description 10 x 2 x 1.5mm² XAT-331 Instrumentation to IEC 60092-376 Individually Screened Pairs Grey LSHF
mm² 1.5
No. Pairs 10
Screen Individual & Overall Foil
Colour Grey
Sheath LSHF
Downloads SH-CI-I-A-F
Approval DNV-GL & ABS
Alternative to TCX (i) 331, RFE-FRHF (i), HFX-ISA/Fr, SH-CI-I-A-F
Downloads Datasheet
XATI0712PM
12 x 2 x 0.75mm² XAT-331 Instrumentation to IEC 60092-376 Individually Screened Pairs Grey LSHF
0.75 12 Individual & Overall Foil Grey LSHF DNV-GL & ABS TCX (i) 331
RFE-FRHF (i)
HFX-ISA/Fr
SH-CI-I-A-F
Datasheet Get Quote
Description 12 x 2 x 0.75mm² XAT-331 Instrumentation to IEC 60092-376 Individually Screened Pairs Grey LSHF
mm² 0.75
No. Pairs 12
Screen Individual & Overall Foil
Colour Grey
Sheath LSHF
Downloads SH-CI-I-A-F
Approval DNV-GL & ABS
Alternative to TCX (i) 331, RFE-FRHF (i), HFX-ISA/Fr, SH-CI-I-A-F
Downloads Datasheet
XATI1512PM
12 x 2 x 1.5mm² XAT-331 Instrumentation to IEC 60092-376 Individually Screened Pairs Grey LSHF
1.5 12 Individual & Overall Foil Grey LSHF DNV-GL & ABS TCX (i) 331
RFE-FRHF (i)
HFX-ISA/Fr
SH-CI-I-A-F
Datasheet Get Quote
Description 12 x 2 x 1.5mm² XAT-331 Instrumentation to IEC 60092-376 Individually Screened Pairs Grey LSHF
mm² 1.5
No. Pairs 12
Screen Individual & Overall Foil
Colour Grey
Sheath LSHF
Downloads SH-CI-I-A-F
Approval DNV-GL & ABS
Alternative to TCX (i) 331, RFE-FRHF (i), HFX-ISA/Fr, SH-CI-I-A-F
Downloads Datasheet
XATI0714PM
14 x 2 x 0.75mm² XAT-331 Instrumentation to IEC 60092-376 Individually Screened Pairs Grey LSHF
0.75 14 Individual & Overall Foil Grey LSHF DNV-GL & ABS TCX (i) 331
RFE-FRHF (i)
HFX-ISA/Fr
SH-CI-I-A-F
Datasheet Get Quote
Description 14 x 2 x 0.75mm² XAT-331 Instrumentation to IEC 60092-376 Individually Screened Pairs Grey LSHF
mm² 0.75
No. Pairs 14
Screen Individual & Overall Foil
Colour Grey
Sheath LSHF
Downloads SH-CI-I-A-F
Approval DNV-GL & ABS
Alternative to TCX (i) 331, RFE-FRHF (i), HFX-ISA/Fr, SH-CI-I-A-F
Downloads Datasheet
XATI1514PM
14 x 2 x 1.5mm² XAT-331 Instrumentation to IEC 60092-376 Individually Screened Pairs Grey LSHF
1.5 14 Individual & Overall Foil Grey LSHF DNV-GL & ABS TCX (i) 331
RFE-FRHF (i)
HFX-ISA/Fr
SH-CI-I-A-F
Datasheet Get Quote
Description 14 x 2 x 1.5mm² XAT-331 Instrumentation to IEC 60092-376 Individually Screened Pairs Grey LSHF
mm² 1.5
No. Pairs 14
Screen Individual & Overall Foil
Colour Grey
Sheath LSHF
Downloads SH-CI-I-A-F
Approval DNV-GL & ABS
Alternative to TCX (i) 331, RFE-FRHF (i), HFX-ISA/Fr, SH-CI-I-A-F
Downloads Datasheet
XATI0719PM
19 x 2 x 0.75mm² XAT-331 Instrumentation to IEC 60092-376 Individually Screened Pairs Grey LSHF
0.75 19 Individual & Overall Foil Grey LSHF DNV-GL & ABS TCX (i) 331
RFE-FRHF (i)
HFX-ISA/Fr
SH-CI-I-A-F
Datasheet Get Quote
Description 19 x 2 x 0.75mm² XAT-331 Instrumentation to IEC 60092-376 Individually Screened Pairs Grey LSHF
mm² 0.75
No. Pairs 19
Screen Individual & Overall Foil
Colour Grey
Sheath LSHF
Downloads SH-CI-I-A-F
Approval DNV-GL & ABS
Alternative to TCX (i) 331, RFE-FRHF (i), HFX-ISA/Fr, SH-CI-I-A-F
Downloads Datasheet
XATI1519PM
19 x 2 x 1.5mm² XAT-331 Instrumentation to IEC 60092-376 Individually Screened Pairs Grey LSHF
1.5 19 Individual & Overall Foil Grey LSHF DNV-GL & ABS TCX (i) 331
RFE-FRHF (i)
HFX-ISA/Fr
SH-CI-I-A-F
Datasheet Get Quote
Description 19 x 2 x 1.5mm² XAT-331 Instrumentation to IEC 60092-376 Individually Screened Pairs Grey LSHF
mm² 1.5
No. Pairs 19
Screen Individual & Overall Foil
Colour Grey
Sheath LSHF
Downloads SH-CI-I-A-F
Approval DNV-GL & ABS
Alternative to TCX (i) 331, RFE-FRHF (i), HFX-ISA/Fr, SH-CI-I-A-F
Downloads Datasheet
XATI0724PM
24 x 2 x 0.75mm² XAT-331 Instrumentation to IEC 60092-376 Individually Screened Pairs Grey LSHF
0.75 24 Individual & Overall Foil Grey LSHF DNV-GL & ABS TCX (i) 331
RFE-FRHF (i)
HFX-ISA/Fr
SH-CI-I-A-F
Datasheet Get Quote
Description 24 x 2 x 0.75mm² XAT-331 Instrumentation to IEC 60092-376 Individually Screened Pairs Grey LSHF
mm² 0.75
No. Pairs 24
Screen Individual & Overall Foil
Colour Grey
Sheath LSHF
Downloads SH-CI-I-A-F
Approval DNV-GL & ABS
Alternative to TCX (i) 331, RFE-FRHF (i), HFX-ISA/Fr, SH-CI-I-A-F
Downloads Datasheet
