XAT Armoured Instrumentation Cable to IEC 60092-376

code: G1448

  • IEC 60092-376 Standard
  • 150/250V Rated
  • SHF1 Sheath
XAT armoured instrumentation marine cables are manufactured in accordance with IEC 60092. Originally designed for ship wiring, they have become popular throughout the petrochemical and process control industries due to their low smoke, low gas generation and increased flame retardant properties. XAT-U offers a combined braid screen copper armour whilst XAT-I includes an additional foil screen around each pair to prevent crosstalk.

Manufacturers alternative reference: Helkama RFE-HF

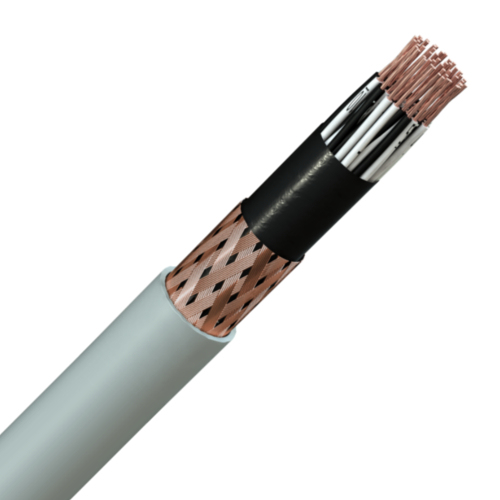

Image representative of product style, product supplied may vary.
Voltage Rating:  150/250V (300V)
Conductor Stranding:
IEC 60228 Class 2 or Class 5, plain copper or tinned copper
Temperature Rating: -40°C to +85°C or +90°C
Bending Radius Static:6 x overall diameter
Flame Retardant: IEC 60332-1-2, IEC 60332-3-22 Cat A
Smoke Emission:
IEC 61034-1 & 2
Halogen Emission: IEC 60754-1 & 2
Manufactured To: IEC 60092 series
3rd Party Approvals:
Lloyds, DNV, ABS, BV and Rina.

Approvals may vary between manufacture brands. Please tell us at time of enquiry if you have a specific requirement.

For a blue sheath please suffix the part code with '01' or for a black sheath please suffix the part code with '00'.

Construction and technical information may vary between manufacturer brands. Please check at the time of order.

XAT-U: Copper or tinned copper conductors, XLPE insulation, pairs laid up, bedding filler tape, copper wire braid screen or tinned copper wire braid & armour, SHF1 Low Smoke Halogen Free sheath – grey or blue.

Construction and technical information may vary between manufacturer brands. Please check at the time of order.

Conductor Size: 0.75mm²  1.5mm²
Conductor Resistance:
<26.7 Ohms/km
<13.7 Ohms/km
Pair Capacitance @ 800Hz
Collective Screen: 50nF/km
60nF/km

Construction and technical information may vary between manufacturer brands. Please check at the time of order.

Pairs – coloured and numbered. This can vary depending on the manufacturer, please specify if you have a preference.

Construction and technical information may vary between manufacturer brands. Please check at the time of order.

Order by 4.30pm for delivery by

Code Description mm² No. Pairs Colour Sheath Alternative to Downloads
XATU0701P
1 x 2 x 0.75mm² XAT Instrumentation to IEC 60092-376 Unscreened Pair Grey LSHF
0.75 1 Grey LSHF RFE-HF
SH-CI-U-A
Datasheet Get Quote
Description 1 x 2 x 0.75mm² XAT Instrumentation to IEC 60092-376 Unscreened Pair Grey LSHF
mm² 0.75
No. Pairs 1
Colour Grey
Sheath LSHF
Alternative to RFE-HF, SH-CI-U-A
Downloads SH-CI-U-A
Downloads Datasheet
XATU1501P
1 x 2 x 1.5mm² XAT Instrumentation to IEC 60092-376 Unscreened Pair Grey LSHF
1.5 1 Grey LSHF RFE-HF
SH-CI-U-A
Datasheet Get Quote
Description 1 x 2 x 1.5mm² XAT Instrumentation to IEC 60092-376 Unscreened Pair Grey LSHF
mm² 1.5
No. Pairs 1
Colour Grey
Sheath LSHF
Alternative to RFE-HF, SH-CI-U-A
Downloads SH-CI-U-A
Downloads Datasheet
XATU0702P
2 x 2 x 0.75mm² XAT Instrumentation to IEC 60092-376 Unscreened Pair Grey LSHF
0.75 2 Grey LSHF RFE-HF
SH-CI-U-A
Datasheet Get Quote
Description 2 x 2 x 0.75mm² XAT Instrumentation to IEC 60092-376 Unscreened Pair Grey LSHF
mm² 0.75
No. Pairs 2
Colour Grey
Sheath LSHF
Alternative to RFE-HF, SH-CI-U-A
Downloads SH-CI-U-A
Downloads Datasheet
XATU1502P
2 x 2 x 1.5mm² XAT Instrumentation to IEC 60092-376 Unscreened Pair Grey LSHF
1.5 2 Grey LSHF RFE-HF
SH-CI-U-A
Datasheet Get Quote
Description 2 x 2 x 1.5mm² XAT Instrumentation to IEC 60092-376 Unscreened Pair Grey LSHF
mm² 1.5
No. Pairs 2
Colour Grey
Sheath LSHF
Alternative to RFE-HF, SH-CI-U-A
Downloads SH-CI-U-A
Downloads Datasheet
XATU0704P
4 x 2 x 0.75mm² XAT Instrumentation to IEC 60092-376 Unscreened Pair Grey LSHF
0.75 4 Grey LSHF RFE-HF
SH-CI-U-A
Datasheet Get Quote
Description 4 x 2 x 0.75mm² XAT Instrumentation to IEC 60092-376 Unscreened Pair Grey LSHF
mm² 0.75
No. Pairs 4
Colour Grey
Sheath LSHF
Alternative to RFE-HF, SH-CI-U-A
Downloads SH-CI-U-A
Downloads Datasheet
XATU1504P
4 x 2 x 1.5mm² XAT Instrumentation to IEC 60092-376 Unscreened Pair Grey LSHF
1.5 4 Grey LSHF RFE-HF
SH-CI-U-A
Datasheet Get Quote
Description 4 x 2 x 1.5mm² XAT Instrumentation to IEC 60092-376 Unscreened Pair Grey LSHF
mm² 1.5
No. Pairs 4
Colour Grey
Sheath LSHF
Alternative to RFE-HF, SH-CI-U-A
Downloads SH-CI-U-A
Downloads Datasheet
XATU0705P
5 x 2 x 0.75mm² XAT Instrumentation to IEC 60092-376 Unscreened Pair Grey LSHF
0.75 5 Grey LSHF RFE-HF
SH-CI-U-A
Datasheet Get Quote
Description 5 x 2 x 0.75mm² XAT Instrumentation to IEC 60092-376 Unscreened Pair Grey LSHF
mm² 0.75
No. Pairs 5
Colour Grey
Sheath LSHF
Alternative to RFE-HF, SH-CI-U-A
Downloads SH-CI-U-A
Downloads Datasheet
XATU0707P
7 x 2 x 0.75mm² XAT Instrumentation to IEC 60092-376 Unscreened Pair Grey LSHF
0.75 7 Grey LSHF RFE-HF
SH-CI-U-A
Datasheet Get Quote
Description 7 x 2 x 0.75mm² XAT Instrumentation to IEC 60092-376 Unscreened Pair Grey LSHF
mm² 0.75
No. Pairs 7
Colour Grey
Sheath LSHF
Alternative to RFE-HF, SH-CI-U-A
Downloads SH-CI-U-A
Downloads Datasheet
XATU1507P
7 x 2 x 1.5mm² XAT Instrumentation to IEC 60092-376 Unscreened Pair Grey LSHF
1.5 7 Grey LSHF RFE-HF
SH-CI-U-A
Datasheet Get Quote
Description 7 x 2 x 1.5mm² XAT Instrumentation to IEC 60092-376 Unscreened Pair Grey LSHF
mm² 1.5
No. Pairs 7
Colour Grey
Sheath LSHF
Alternative to RFE-HF, SH-CI-U-A
Downloads SH-CI-U-A
Downloads Datasheet
XATU0708P
8 x 2 x 0.75mm² XAT Instrumentation to IEC 60092-376 Unscreened Pair Grey LSHF
0.75 8 Grey LSHF RFE-HF
SH-CI-U-A
Datasheet Get Quote
Description 8 x 2 x 0.75mm² XAT Instrumentation to IEC 60092-376 Unscreened Pair Grey LSHF
mm² 0.75
No. Pairs 8
Colour Grey
Sheath LSHF
Alternative to RFE-HF, SH-CI-U-A
Downloads SH-CI-U-A
Downloads Datasheet
XATU1508P
8 x 2 x 1.5mm² XAT Instrumentation to IEC 60092-376 Unscreened Pair Grey LSHF
1.5 8 Grey LSHF RFE-HF
SH-CI-U-A
Datasheet Get Quote
Description 8 x 2 x 1.5mm² XAT Instrumentation to IEC 60092-376 Unscreened Pair Grey LSHF
mm² 1.5
No. Pairs 8
Colour Grey
Sheath LSHF
Alternative to RFE-HF, SH-CI-U-A
Downloads SH-CI-U-A
Downloads Datasheet
XATU0710P
10 x 2 x 0.75mm² XAT Instrumentation to IEC 60092-376 Unscreened Pair Grey LSHF
0.75 10 Grey LSHF RFE-HF
SH-CI-U-A
Datasheet Get Quote
Description 10 x 2 x 0.75mm² XAT Instrumentation to IEC 60092-376 Unscreened Pair Grey LSHF
mm² 0.75
No. Pairs 10
Colour Grey
Sheath LSHF
Alternative to RFE-HF, SH-CI-U-A
Downloads SH-CI-U-A
Downloads Datasheet
XATU1510P
10 x 2 x 1.5mm² XAT Instrumentation to IEC 60092-376 Unscreened Pair Grey LSHF
1.5 10 Grey LSHF RFE-HF
SH-CI-U-A
Datasheet Get Quote
Description 10 x 2 x 1.5mm² XAT Instrumentation to IEC 60092-376 Unscreened Pair Grey LSHF
mm² 1.5
No. Pairs 10
Colour Grey
Sheath LSHF
Alternative to RFE-HF, SH-CI-U-A
Downloads SH-CI-U-A
Downloads Datasheet
XATU0712P
12 x 2 x 0.75mm² XAT Instrumentation to IEC 60092-376 Unscreened Pair Grey LSHF
0.75 12 Grey LSHF RFE-HF
SH-CI-U-A
Datasheet Get Quote
Description 12 x 2 x 0.75mm² XAT Instrumentation to IEC 60092-376 Unscreened Pair Grey LSHF
mm² 0.75
No. Pairs 12
Colour Grey
Sheath LSHF
Alternative to RFE-HF, SH-CI-U-A
Downloads SH-CI-U-A
Downloads Datasheet
XATU1512P
12 x 2 x 1.5mm² XAT Instrumentation to IEC 60092-376 Unscreened Pair Grey LSHF
1.5 12 Grey LSHF RFE-HF
SH-CI-U-A
Datasheet Get Quote
Description 12 x 2 x 1.5mm² XAT Instrumentation to IEC 60092-376 Unscreened Pair Grey LSHF
mm² 1.5
No. Pairs 12
Colour Grey
Sheath LSHF
Alternative to RFE-HF, SH-CI-U-A
Downloads SH-CI-U-A
Downloads Datasheet
XATU0714P
14 x 2 x 0.75mm² XAT Instrumentation to IEC 60092-376 Unscreened Pair Grey LSHF
0.75 14 Grey LSHF RFE-HF
SH-CI-U-A
Datasheet Get Quote
Description 14 x 2 x 0.75mm² XAT Instrumentation to IEC 60092-376 Unscreened Pair Grey LSHF
mm² 0.75
No. Pairs 14
Colour Grey
Sheath LSHF
Alternative to RFE-HF, SH-CI-U-A
Downloads SH-CI-U-A
Downloads Datasheet
XATU1514P
14 x 2 x 1.5mm² XAT Instrumentation to IEC 60092-376 Unscreened Pair Grey LSHF
1.5 14 Grey LSHF RFE-HF
SH-CI-U-A
Datasheet Get Quote
Description 14 x 2 x 1.5mm² XAT Instrumentation to IEC 60092-376 Unscreened Pair Grey LSHF
mm² 1.5
No. Pairs 14
Colour Grey
Sheath LSHF
Alternative to RFE-HF, SH-CI-U-A
Downloads SH-CI-U-A
Downloads Datasheet
XATU0719P
19 x 2 x 0.75mm² XAT Instrumentation to IEC 60092-376 Unscreened Pair Grey LSHF
0.75 19 Grey LSHF RFE-HF
SH-CI-U-A
Datasheet Get Quote
Description 19 x 2 x 0.75mm² XAT Instrumentation to IEC 60092-376 Unscreened Pair Grey LSHF
mm² 0.75
No. Pairs 19
Colour Grey
Sheath LSHF
Alternative to RFE-HF, SH-CI-U-A
Downloads SH-CI-U-A
Downloads Datasheet
XATU1519P
19 x 2 x 1.5mm² XAT Instrumentation to IEC 60092-376 Unscreened Pair Grey LSHF
1.5 19 Grey LSHF RFE-HF
SH-CI-U-A
Datasheet Get Quote
Description 19 x 2 x 1.5mm² XAT Instrumentation to IEC 60092-376 Unscreened Pair Grey LSHF
mm² 1.5
No. Pairs 19
Colour Grey
Sheath LSHF
Alternative to RFE-HF, SH-CI-U-A
Downloads SH-CI-U-A
Downloads Datasheet
XATU0724P
24 x 2 x 0.75mm² XAT Instrumentation to IEC 60092-376 Unscreened Pair Grey LSHF
0.75 24 Grey LSHF RFE-HF
SH-CI-U-A
Datasheet Get Quote
Description 24 x 2 x 0.75mm² XAT Instrumentation to IEC 60092-376 Unscreened Pair Grey LSHF
mm² 0.75
No. Pairs 24
Colour Grey
Sheath LSHF
Alternative to RFE-HF, SH-CI-U-A
Downloads SH-CI-U-A
Downloads Datasheet
