Code: G1447
- IEC 60092-353 Standard
- 0.6/1kV Rated
- SHF1 Sheath
- DNV-GL & ABS Approved
XAT power cables provide lightweight wiring in marine applications where mechanical protection is required and personnel safety in the event of a fire is important. Manufactured in accordance with European standard IEC 60092-353.
Manufacturers alternative reference: Nexans MPRXCX, Helkama LKSM-HF, Prysmian HFX-A

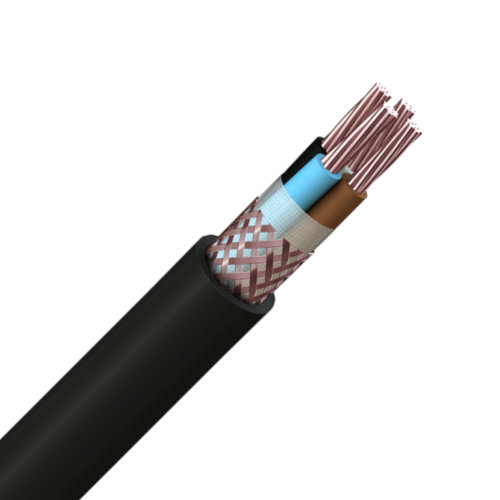

Image representative of product style, product supplied may vary.
| Voltage Rating: | 0.6/1kV |
| Conductor Stranding: | IEC 60228 Class 2 or Class 5, plain copper or tinned copper |
| Temperature Rating: | -40°C to +85°C or +90°C |
| Bending Radius Static: | 6 x overall diameter |
| Flame Retardant: | IEC 60332-1-2, IEC 60332-3-22 Cat A |
| Smoke Emission: | IEC 61034-1 & 2 |
| Halogen Emission: | IEC 60754-1 & 2 |
| Manufactured To: | IEC 60092 series |
| 3rd Party Approvals: | Lloyds, DNV, ABS, BV and Rina. |
Approvals may vary between manufacturer brands. Please tell us at time of enquiry if you have a specific requirement.
Some versions replace the bedding with a separator tape which provides a smaller diameter cable. Please specify at time of enquiry if you have a preference.
Construction and technical information may vary between manufacturer brands. Please check at the time of order.
XAT: Copper or tinned copper conductors, XLPE insulation, bedding, copper wire braid armour or tinned copper wire braid, SHF 1 Low Smoke Halogen Free sheath - black.
Construction and technical information may vary between manufacturer brands. Please check at the time of order.
Manufacturers discretion in accordance with IEC 60092-353.
Generally colour coded up to 5 core and numbered cores above 5 core.
Cables including a green/yellow earth core are available on request.
Please check at time of enquiry if you have a specific preference.
Construction and technical information may vary between manufacturer brands. Please check at the time of order.
Order by 4.30pm for delivery by
| Code | Description | No. Cores | mm² | Colour | Sheath | Approval | Alternative to | Downloads | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XAT001502 |
2 x 1.5mm² XAT Power to IEC 60092-350 Black LSHF
|
2 | 1.5 | Black | LSHF | DNV-GL & ABS |
MPRXCX LKSM-HF HFX-A SH-PC-A |
Datasheet | Get Quote | ||||||||||
|
|||||||||||||||||||
| XAT001503 |
3 x 1.5mm² XAT Power to IEC 60092-350 Black LSHF
|
3 | 1.5 | Black | LSHF | DNV-GL & ABS |
MPRXCX LKSM-HF HFX-A SH-PC-A |
Datasheet | Get Quote | ||||||||||
|
|||||||||||||||||||
| XAT001504 |
4 x 1.5mm² XAT Power to IEC 60092-350 Black LSHF
|
4 | 1.5 | Black | LSHF | DNV-GL & ABS |
MPRXCX LKSM-HF HFX-A SH-PC-A |
Datasheet | Get Quote | ||||||||||
|
|||||||||||||||||||
| XAT001505 |
5 x 1.5mm² XAT Power to IEC 60092-350 Black LSHF
|
5 | 1.5 | Black | LSHF | DNV-GL & ABS |
MPRXCX LKSM-HF HFX-A SH-PC-A |
Datasheet | Get Quote | ||||||||||
|
|||||||||||||||||||
| XAT001507 |
7 x 1.5mm² XAT Power to IEC 60092-350 Black LSHF
|
7 | 1.5 | Black | LSHF | DNV-GL & ABS |
MPRXCX LKSM-HF HFX-A SH-PC-A |
Datasheet | Get Quote | ||||||||||
|
|||||||||||||||||||
| XAT001512 |
12 x 1.5mm² XAT Power to IEC 60092-350 Black LSHF
|
12 | 1.5 | Black | LSHF | DNV-GL & ABS |
MPRXCX LKSM-HF HFX-A SH-PC-A |
Datasheet | Get Quote | ||||||||||
|
|||||||||||||||||||
| XAT001519 |
19 x 1.5mm² XAT Power to IEC 60092-350 Black LSHF
|
19 | 1.5 | Black | LSHF | DNV-GL & ABS |
MPRXCX LKSM-HF HFX-A SH-PC-A |
Datasheet | Get Quote | ||||||||||
|
|||||||||||||||||||
| XAT001527 |
27 x 1.5mm² XAT Power to IEC 60092-350 Black LSHF
|
27 | 1.5 | Black | LSHF | DNV-GL & ABS |
MPRXCX LKSM-HF HFX-A SH-PC-A |
Datasheet | Get Quote | ||||||||||
|
|||||||||||||||||||
| XAT001537 |
37 x 1.5mm² XAT Power to IEC 60092-350 Black LSHF
|
37 | 1.5 | Black | LSHF | DNV-GL & ABS |
MPRXCX LKSM-HF HFX-A SH-PC-A |
Datasheet | Get Quote | ||||||||||
|
|||||||||||||||||||
| XAT002502 |
2 x 2.5mm² XAT Power to IEC 60092-350 Black LSHF
|
2 | 2.5 | Black | LSHF | DNV-GL & ABS |
MPRXCX LKSM-HF HFX-A SH-PC-A |
Datasheet | Get Quote | ||||||||||
|
|||||||||||||||||||
| XAT002503 |
3 x 2.5mm² XAT Power to IEC 60092-350 Black LSHF
|
3 | 2.5 | Black | LSHF | DNV-GL & ABS |
MPRXCX LKSM-HF HFX-A SH-PC-A |
Datasheet | Get Quote | ||||||||||
|
|||||||||||||||||||
| XAT002504 |
4 x 2.5mm² XAT Power to IEC 60092-350 Black LSHF
|
4 | 2.5 | Black | LSHF | DNV-GL & ABS |
MPRXCX LKSM-HF HFX-A SH-PC-A |
Datasheet | Get Quote | ||||||||||
|
|||||||||||||||||||
| XAT002505 |
5 x 2.5mm² XAT Power to IEC 60092-350 Black LSHF
|
5 | 2.5 | Black | LSHF | DNV-GL & ABS |
MPRXCX LKSM-HF HFX-A SH-PC-A |
Datasheet | Get Quote | ||||||||||
|
|||||||||||||||||||
| XAT002507 |
7 x 2.5mm² XAT Power to IEC 60092-350 Black LSHF
|
7 | 2.5 | Black | LSHF | DNV-GL & ABS |
MPRXCX LKSM-HF HFX-A SH-PC-A |
Datasheet | Get Quote | ||||||||||
|
|||||||||||||||||||
| XAT002512 |
12 x 2.5mm² XAT Power to IEC 60092-350 Black LSHF
|
12 | 2.5 | Black | LSHF | DNV-GL & ABS |
MPRXCX LKSM-HF HFX-A SH-PC-A |
Datasheet | Get Quote | ||||||||||
|
|||||||||||||||||||
| XAT002519 |
19 x 2.5mm² XAT Power to IEC 60092-350 Black LSHF
|
19 | 2.5 | Black | LSHF | DNV-GL & ABS |
MPRXCX LKSM-HF HFX-A SH-PC-A |
Datasheet | Get Quote | ||||||||||
|
|||||||||||||||||||
| XAT004002 |
2 x 4.0mm² XAT Power to IEC 60092-350 Black LSHF
|
2 | 4 | Black | LSHF | DNV-GL & ABS |
MPRXCX LKSM-HF HFX-A SH-PC-A |
Datasheet | Get Quote | ||||||||||
|
|||||||||||||||||||
| XAT004003 |
3 x 4.0mm² XAT Power to IEC 60092-350 Black LSHF
|
3 | 4 | Black | LSHF | DNV-GL & ABS |
MPRXCX LKSM-HF HFX-A SH-PC-A |
Datasheet | Get Quote | ||||||||||
|
|||||||||||||||||||
| XAT004003E |
3 x 4.0mm² XAT Power to IEC 60092-350 Black LSHF with green/yellow
|
3 | 4 | Black | LSHF | DNV-GL & ABS |
MPRXCX LKSM-HF HFX-A SH-PC-A |
Datasheet | Get Quote | ||||||||||
|
|||||||||||||||||||
| XAT004004 |
4 x 4.0mm² XAT Power to IEC 60092-350 Black LSHF
|
4 | 4 | Black | LSHF | DNV-GL & ABS |
MPRXCX LKSM-HF HFX-A SH-PC-A |
Datasheet | Get Quote | ||||||||||
|
|||||||||||||||||||
| XAT004005 |
5 x 4.0mm² XAT Power to IEC 60092-350 Black LSHF
|
5 | 4 | Black | LSHF | DNV-GL & ABS |
MPRXCX LKSM-HF HFX-A SH-PC-A |
Datasheet | Get Quote | ||||||||||
|
|||||||||||||||||||
| XAT006001 |
1 x 6.0mm² XAT Power to IEC 60092-350 Black LSHF
|
1 | 6 | Black | LSHF | DNV-GL & ABS |
MPRXCX LKSM-HF HFX-A SH-PC-A |
Datasheet | Get Quote | ||||||||||
|
|||||||||||||||||||
| XAT006002 |
2 x 6.0mm² XAT Power to IEC 60092-350 Black LSHF
|
2 | 6 | Black | LSHF | DNV-GL & ABS |
MPRXCX LKSM-HF HFX-A SH-PC-A |
Datasheet | Get Quote | ||||||||||
|
|||||||||||||||||||
| XAT006003 |
3 x 6.0mm² XAT Power to IEC 60092-350 Black LSHF
|
3 | 6 | Black | LSHF | DNV-GL & ABS |
MPRXCX LKSM-HF HFX-A SH-PC-A |
Datasheet | Get Quote | ||||||||||
|
|||||||||||||||||||
| XAT006003E |
3 x 6.0mm² XAT Power to IEC 60092-350 Black LSHF with green/yellow
|
3 | 6 | Black | LSHF | DNV-GL & ABS |
MPRXCX LKSM-HF HFX-A SH-PC-A |
Datasheet | Get Quote | ||||||||||
|
|||||||||||||||||||
| XAT006004 |
4 x 6.0mm² XAT Power to IEC 60092-350 Black LSHF
|
4 | 6 | Black | LSHF | DNV-GL & ABS |
MPRXCX LKSM-HF HFX-A SH-PC-A |
Datasheet | Get Quote | ||||||||||
|
|||||||||||||||||||
| XAT006005 |
5 x 6.0mm² XAT Power to IEC 60092-350 Black LSHF
|
5 | 6 | Black | LSHF | DNV-GL & ABS |
MPRXCX LKSM-HF HFX-A SH-PC-A |
Datasheet | Get Quote | ||||||||||
|
|||||||||||||||||||
| XAT010001 |
1 x 10mm² XAT Power to IEC 60092-350 Black LSHF
|
1 | 10 | Black | LSHF | DNV-GL & ABS |
MPRXCX LKSM-HF HFX-A SH-PC-A |
Datasheet | Get Quote | ||||||||||
|
|||||||||||||||||||
| XAT010003 |
3 x 10mm² XAT Power to IEC 60092-350 Black LSHF
|
3 | 10 | Black | LSHF | DNV-GL & ABS |
MPRXCX LKSM-HF HFX-A SH-PC-A |
Datasheet | Get Quote | ||||||||||
|
|||||||||||||||||||
| XAT010004 |
4 x 10mm² XAT Power to IEC 60092-350 Black LSHF
|
4 | 10 | Black | LSHF | DNV-GL & ABS |
MPRXCX LKSM-HF HFX-A SH-PC-A |
Datasheet | Get Quote | ||||||||||
|
|||||||||||||||||||
| XAT010005 |
5 x 10mm² XAT Power to IEC 60092-350 Black LSHF
|
5 | 10 | Black | LSHF | DNV-GL & ABS |
MPRXCX LKSM-HF HFX-A SH-PC-A |
Datasheet | Get Quote | ||||||||||
|
|||||||||||||||||||
| XAT016001 |
1 x 16mm² XAT Power to IEC 60092-350 Black LSHF
|
1 | 16 | Black | LSHF | DNV-GL & ABS |
MPRXCX LKSM-HF HFX-A SH-PC-A |
Datasheet | Get Quote | ||||||||||
|
|||||||||||||||||||
| XAT016003 |
3 x 16mm² XAT Power to IEC 60092-350 Black LSHF
|
3 | 16 | Black | LSHF | DNV-GL & ABS |
MPRXCX LKSM-HF HFX-A SH-PC-A |
Datasheet | Get Quote | ||||||||||
|
|||||||||||||||||||
| XAT016003E |
3 x 16mm² XAT Power to IEC 60092-350 Black LSHF with green/yellow
|
3 | 16 | Black | LSHF | DNV-GL & ABS |
MPRXCX LKSM-HF HFX-A SH-PC-A |
Datasheet | Get Quote | ||||||||||
|
|||||||||||||||||||
| XAT016004 |
4 x 16mm² XAT Power to IEC 60092-350 Black LSHF
|
4 | 16 | Black | LSHF | DNV-GL & ABS |
MPRXCX LKSM-HF HFX-A SH-PC-A |
Datasheet | Get Quote | ||||||||||
|
|||||||||||||||||||
| XAT016005 |
5 x 16mm² XAT Power to IEC 60092-350 Black LSHF
|
5 | 16 | Black | LSHF | DNV-GL & ABS |
MPRXCX LKSM-HF HFX-A SH-PC-A |
Datasheet | Get Quote | ||||||||||
|
|||||||||||||||||||
| XAT025001 |
1 x 25mm² XAT Power to IEC 60092-350 Black LSHF
|
1 | 25 | Black | LSHF | DNV-GL & ABS |
MPRXCX LKSM-HF HFX-A SH-PC-A |
Datasheet | Get Quote | ||||||||||
|
|||||||||||||||||||
| XAT025003 |
3 x 25mm² XAT Power to IEC 60092-350 Black LSHF
|
3 | 25 | Black | LSHF | DNV-GL & ABS |
MPRXCX LKSM-HF HFX-A SH-PC-A |
Datasheet | Get Quote | ||||||||||
|
|||||||||||||||||||
| XAT025004 |
4 x 25mm² XAT Power to IEC 60092-350 Black LSHF
|
4 | 25 | Black | LSHF | DNV-GL & ABS |
MPRXCX LKSM-HF HFX-A SH-PC-A |
Datasheet | Get Quote | ||||||||||
|
|||||||||||||||||||
| XAT035001 |
1 x 35mm² XAT Power to IEC 60092-350 Black LSHF
|
1 | 35 | Black | LSHF | DNV-GL & ABS |
MPRXCX LKSM-HF HFX-A SH-PC-A |
Datasheet | Get Quote | ||||||||||
|
|||||||||||||||||||
| XAT035003 |
3 x 35mm² XAT Power to IEC 60092-350 Black LSHF
|
3 | 35 | Black | LSHF | DNV-GL & ABS |
MPRXCX LKSM-HF HFX-A SH-PC-A |
Datasheet | Get Quote | ||||||||||
|
|||||||||||||||||||
| XAT035004 |
4 x 35mm² XAT Power to IEC 60092-350 Black LSHF
|
4 | 35 | Black | LSHF | DNV-GL & ABS |
MPRXCX LKSM-HF HFX-A SH-PC-A |
Datasheet | Get Quote | ||||||||||
|
|||||||||||||||||||
| XAT050001 |
1 x 50mm² XAT Power to IEC 60092-350 Black LSHF
|
1 | 50 | Black | LSHF | DNV-GL & ABS |
MPRXCX LKSM-HF HFX-A SH-PC-A |
Datasheet | Get Quote | ||||||||||
|
|||||||||||||||||||
| XAT050003 |
3 x 50mm² XAT Power to IEC 60092-350 Black LSHF
|
3 | 50 | Black | LSHF | DNV-GL & ABS |
MPRXCX LKSM-HF HFX-A SH-PC-A |
Datasheet | Get Quote | ||||||||||
|
|||||||||||||||||||
| XAT050004 |
4 x 50mm² XAT Power to IEC 60092-350 Black LSHF
|
4 | 50 | Black | LSHF | DNV-GL & ABS |
MPRXCX LKSM-HF HFX-A SH-PC-A |
Datasheet | Get Quote | ||||||||||
|
|||||||||||||||||||
| XAT070001 |
1 x 70mm² XAT Power to IEC 60092-350 Black LSHF
|
1 | 70 | Black | LSHF | DNV-GL & ABS |
MPRXCX LKSM-HF HFX-A SH-PC-A |
Datasheet | Get Quote | ||||||||||
|
|||||||||||||||||||
| XAT070003 |
3 x 70mm² XAT Power to IEC 60092-350 Black LSHF
|
3 | 70 | Black | LSHF | DNV-GL & ABS |
MPRXCX LKSM-HF HFX-A SH-PC-A |
Datasheet | Get Quote | ||||||||||
|
|||||||||||||||||||
| XAT070004 |
4 x 70mm² XAT Power to IEC 60092-350 Black LSHF
|
4 | 70 | Black | LSHF | DNV-GL & ABS |
MPRXCX LKSM-HF HFX-A SH-PC-A |
Datasheet | Get Quote | ||||||||||
|
|||||||||||||||||||
| XAT095001 |
1 x 95mm² XAT Power to IEC 60092-350 Black LSHF
|
1 | 95 | Black | LSHF | DNV-GL & ABS |
MPRXCX LKSM-HF HFX-A SH-PC-A |
Datasheet | Get Quote | ||||||||||
|
|||||||||||||||||||
| XAT095003 |
3 x 95mm² XAT Power to IEC 60092-350 Black LSHF
|
3 | 95 | Black | LSHF | DNV-GL & ABS |
MPRXCX LKSM-HF HFX-A SH-PC-A |
Datasheet | Get Quote | ||||||||||
|
|||||||||||||||||||
| XAT120001 |
1 x 120mm² XAT Power to IEC 60092-350 Black LSHF
|
1 | 120 | Black | LSHF | DNV-GL & ABS |
MPRXCX LKSM-HF HFX-A SH-PC-A |
Datasheet | Get Quote | ||||||||||
|
|||||||||||||||||||
| XAT120003 |
3 x 120mm² XAT Power to IEC 60092-350 Black LSHF
|
3 | 120 | Black | LSHF | DNV-GL & ABS |
MPRXCX LKSM-HF HFX-A SH-PC-A |
Datasheet | Get Quote | ||||||||||
|
|||||||||||||||||||
| XAT150001 |
1 x 150mm² XAT Power to IEC 60092-350 Black LSHF
|
1 | 150 | Black | LSHF | DNV-GL & ABS |
MPRXCX LKSM-HF HFX-A SH-PC-A |
Datasheet | Get Quote | ||||||||||
|
|||||||||||||||||||
| XAT150003 |
3 x 150mm² XAT Power to IEC 60092-350 Black LSHF
|
3 | 150 | Black | LSHF | DNV-GL & ABS |
MPRXCX LKSM-HF HFX-A SH-PC-A |
Datasheet | Get Quote | ||||||||||
|
|||||||||||||||||||
| XAT185001 |
1 x 185mm² XAT Power to IEC 60092-350 Black LSHF
|
1 | 185 | Black | LSHF | DNV-GL & ABS |
MPRXCX LKSM-HF HFX-A SH-PC-A |
Datasheet | Get Quote | ||||||||||
|
|||||||||||||||||||
| XAT240001 |
1 x 240mm² XAT Power to IEC 60092-350 Black LSHF
|
1 | 240 | Black | LSHF | DNV-GL & ABS |
MPRXCX LKSM-HF HFX-A SH-PC-A |
Datasheet | Get Quote | ||||||||||
|
|||||||||||||||||||
| XAT300001 |
1 x 300mm² XAT Power to IEC 60092-350 Black LSHF
|
1 | 300 | Black | LSHF | DNV-GL & ABS |
MPRXCX LKSM-HF HFX-A SH-PC-A |
Datasheet | Get Quote | ||||||||||
|
|||||||||||||||||||
Please contact us to request a quote for this item.
XAT Armoured Power Cable IEC 60092-353
Part No. G1447A sales representative will contact you within 3 hours, Monday to Friday 8am - 6pm.
Alternatively contact us on 01727 840 841
Already have an online account?
Click here to login or Request an online account
- Keep up to date with latest products
- Check stock and prices conveniently any time
- Quick order facility
- View your account history and statement
Don't have an account?
Complete the form below and a sales representative will contact you within 1 working day. Alternatively contact us on 01727 840 841 for a quote.
Request sent
Continue Shopping
