XAT Armoured Power Cable IEC 60092-353

code: G1447

  • IEC 60092-353 Standard
  • 0.6/1kV Rated
  • SHF1 Sheath
  • DNV-GL & ABS Approved
XAT power cables provide lightweight wiring in marine applications where mechanical protection is required and personnel safety in the event of a fire is important. Manufactured in accordance with European standard IEC 60092-353.

Manufacturers alternative reference: Nexans MPRXCX, Helkama LKSM-HF, Prysmian HFX-A

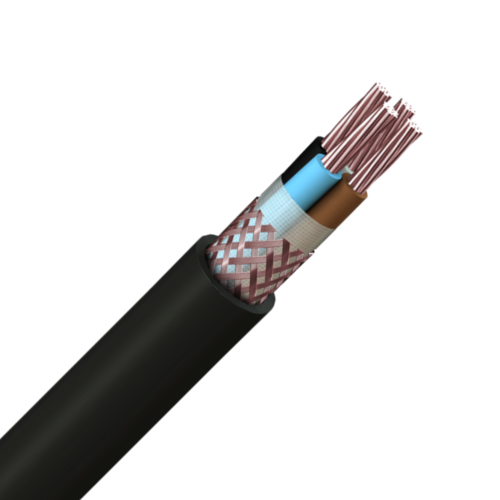

Image representative of product style, product supplied may vary.
Voltage Rating:  0.6/1kV
Conductor Stranding:
IEC 60228 Class 2 or Class 5, plain copper or tinned copper
Temperature Rating: -40°C to +85°C or +90°C
Bending Radius Static:6 x overall diameter
Flame Retardant: IEC 60332-1-2, IEC 60332-3-22 Cat A
Smoke Emission:
IEC 61034-1 & 2
Halogen Emission: IEC 60754-1 & 2
Manufactured To: IEC 60092 series
3rd Party Approvals:
Lloyds, DNV, ABS, BV and Rina.

Approvals may vary between manufacturer brands. Please tell us at time of enquiry if you have a specific requirement.

Some versions replace the bedding with a separator tape which provides a smaller diameter cable. Please specify at time of enquiry if you have a preference.

Construction and technical information may vary between manufacturer brands. Please check at the time of order.

XAT: Copper or tinned copper conductors, XLPE insulation, bedding, copper wire braid armour or tinned copper wire braid, SHF 1 Low Smoke Halogen Free sheath - black.

Construction and technical information may vary between manufacturer brands. Please check at the time of order.

Manufacturers discretion in accordance with IEC 60092-353.

Generally colour coded up to 5 core and numbered cores above 5 core.

Cables including a green/yellow earth core are available on request.

Please check at time of enquiry if you have a specific preference.

Construction and technical information may vary between manufacturer brands. Please check at the time of order.

Order by 4.30pm for delivery by

Code Description No. Cores mm² Colour Sheath Approval Alternative to Downloads
XAT001502
2 x 1.5mm² XAT Power to IEC 60092-350 Black LSHF
2 1.5 Black LSHF DNV-GL & ABS MPRXCX
LKSM-HF
HFX-A
SH-PC-A
Datasheet Get Quote
Description 2 x 1.5mm² XAT Power to IEC 60092-350 Black LSHF
No. Cores 2
mm² 1.5
Colour Black
Sheath LSHF
Downloads SH-PC-A
Approval DNV-GL & ABS
Alternative to MPRXCX, LKSM-HF, HFX-A, SH-PC-A
Downloads Datasheet
XAT001503
3 x 1.5mm² XAT Power to IEC 60092-350 Black LSHF
3 1.5 Black LSHF DNV-GL & ABS MPRXCX
LKSM-HF
HFX-A
SH-PC-A
Datasheet Get Quote
Description 3 x 1.5mm² XAT Power to IEC 60092-350 Black LSHF
No. Cores 3
mm² 1.5
Colour Black
Sheath LSHF
Downloads SH-PC-A
Approval DNV-GL & ABS
Alternative to MPRXCX, LKSM-HF, HFX-A, SH-PC-A
Downloads Datasheet
XAT001504
4 x 1.5mm² XAT Power to IEC 60092-350 Black LSHF
4 1.5 Black LSHF DNV-GL & ABS MPRXCX
LKSM-HF
HFX-A
SH-PC-A
Datasheet Get Quote
Description 4 x 1.5mm² XAT Power to IEC 60092-350 Black LSHF
No. Cores 4
mm² 1.5
Colour Black
Sheath LSHF
Downloads SH-PC-A
Approval DNV-GL & ABS
Alternative to MPRXCX, LKSM-HF, HFX-A, SH-PC-A
Downloads Datasheet
XAT001505
5 x 1.5mm² XAT Power to IEC 60092-350 Black LSHF
5 1.5 Black LSHF DNV-GL & ABS MPRXCX
LKSM-HF
HFX-A
SH-PC-A
Datasheet Get Quote
Description 5 x 1.5mm² XAT Power to IEC 60092-350 Black LSHF
No. Cores 5
mm² 1.5
Colour Black
Sheath LSHF
Downloads SH-PC-A
Approval DNV-GL & ABS
Alternative to MPRXCX, LKSM-HF, HFX-A, SH-PC-A
Downloads Datasheet
XAT001507
7 x 1.5mm² XAT Power to IEC 60092-350 Black LSHF
7 1.5 Black LSHF DNV-GL & ABS MPRXCX
LKSM-HF
HFX-A
SH-PC-A
Datasheet Get Quote
Description 7 x 1.5mm² XAT Power to IEC 60092-350 Black LSHF
No. Cores 7
mm² 1.5
Colour Black
Sheath LSHF
Downloads SH-PC-A
Approval DNV-GL & ABS
Alternative to MPRXCX, LKSM-HF, HFX-A, SH-PC-A
Downloads Datasheet
XAT001512
12 x 1.5mm² XAT Power to IEC 60092-350 Black LSHF
12 1.5 Black LSHF DNV-GL & ABS MPRXCX
LKSM-HF
HFX-A
SH-PC-A
Datasheet Get Quote
Description 12 x 1.5mm² XAT Power to IEC 60092-350 Black LSHF
No. Cores 12
mm² 1.5
Colour Black
Sheath LSHF
Downloads SH-PC-A
Approval DNV-GL & ABS
Alternative to MPRXCX, LKSM-HF, HFX-A, SH-PC-A
Downloads Datasheet
XAT001519
19 x 1.5mm² XAT Power to IEC 60092-350 Black LSHF
19 1.5 Black LSHF DNV-GL & ABS MPRXCX
LKSM-HF
HFX-A
SH-PC-A
Datasheet Get Quote
Description 19 x 1.5mm² XAT Power to IEC 60092-350 Black LSHF
No. Cores 19
mm² 1.5
Colour Black
Sheath LSHF
Downloads SH-PC-A
Approval DNV-GL & ABS
Alternative to MPRXCX, LKSM-HF, HFX-A, SH-PC-A
Downloads Datasheet
XAT001527
27 x 1.5mm² XAT Power to IEC 60092-350 Black LSHF
27 1.5 Black LSHF DNV-GL & ABS MPRXCX
LKSM-HF
HFX-A
SH-PC-A
Datasheet Get Quote
Description 27 x 1.5mm² XAT Power to IEC 60092-350 Black LSHF
No. Cores 27
mm² 1.5
Colour Black
Sheath LSHF
Downloads SH-PC-A
Approval DNV-GL & ABS
Alternative to MPRXCX, LKSM-HF, HFX-A, SH-PC-A
Downloads Datasheet
XAT001537
37 x 1.5mm² XAT Power to IEC 60092-350 Black LSHF
37 1.5 Black LSHF DNV-GL & ABS MPRXCX
LKSM-HF
HFX-A
SH-PC-A
Datasheet Get Quote
Description 37 x 1.5mm² XAT Power to IEC 60092-350 Black LSHF
No. Cores 37
mm² 1.5
Colour Black
Sheath LSHF
Downloads SH-PC-A
Approval DNV-GL & ABS
Alternative to MPRXCX, LKSM-HF, HFX-A, SH-PC-A
Downloads Datasheet
XAT002502
2 x 2.5mm² XAT Power to IEC 60092-350 Black LSHF
2 2.5 Black LSHF DNV-GL & ABS MPRXCX
LKSM-HF
HFX-A
SH-PC-A
Datasheet Get Quote
Description 2 x 2.5mm² XAT Power to IEC 60092-350 Black LSHF
No. Cores 2
mm² 2.5
Colour Black
Sheath LSHF
Downloads SH-PC-A
Approval DNV-GL & ABS
Alternative to MPRXCX, LKSM-HF, HFX-A, SH-PC-A
Downloads Datasheet
XAT002503
3 x 2.5mm² XAT Power to IEC 60092-350 Black LSHF
3 2.5 Black LSHF DNV-GL & ABS MPRXCX
LKSM-HF
HFX-A
SH-PC-A
Datasheet Get Quote
Description 3 x 2.5mm² XAT Power to IEC 60092-350 Black LSHF
No. Cores 3
mm² 2.5
Colour Black
Sheath LSHF
Downloads SH-PC-A
Approval DNV-GL & ABS
Alternative to MPRXCX, LKSM-HF, HFX-A, SH-PC-A
Downloads Datasheet
XAT002504
4 x 2.5mm² XAT Power to IEC 60092-350 Black LSHF
4 2.5 Black LSHF DNV-GL & ABS MPRXCX
LKSM-HF
HFX-A
SH-PC-A
Datasheet Get Quote
Description 4 x 2.5mm² XAT Power to IEC 60092-350 Black LSHF
No. Cores 4
mm² 2.5
Colour Black
Sheath LSHF
Downloads SH-PC-A
Approval DNV-GL & ABS
Alternative to MPRXCX, LKSM-HF, HFX-A, SH-PC-A
Downloads Datasheet
XAT002505
5 x 2.5mm² XAT Power to IEC 60092-350 Black LSHF
5 2.5 Black LSHF DNV-GL & ABS MPRXCX
LKSM-HF
HFX-A
SH-PC-A
Datasheet Get Quote
Description 5 x 2.5mm² XAT Power to IEC 60092-350 Black LSHF
No. Cores 5
mm² 2.5
Colour Black
Sheath LSHF
Downloads SH-PC-A
Approval DNV-GL & ABS
Alternative to MPRXCX, LKSM-HF, HFX-A, SH-PC-A
Downloads Datasheet
XAT002507
7 x 2.5mm² XAT Power to IEC 60092-350 Black LSHF
7 2.5 Black LSHF DNV-GL & ABS MPRXCX
LKSM-HF
HFX-A
SH-PC-A
Datasheet Get Quote
Description 7 x 2.5mm² XAT Power to IEC 60092-350 Black LSHF
No. Cores 7
mm² 2.5
Colour Black
Sheath LSHF
Downloads SH-PC-A
Approval DNV-GL & ABS
Alternative to MPRXCX, LKSM-HF, HFX-A, SH-PC-A
Downloads Datasheet
XAT002512
12 x 2.5mm² XAT Power to IEC 60092-350 Black LSHF
12 2.5 Black LSHF DNV-GL & ABS MPRXCX
LKSM-HF
HFX-A
SH-PC-A
Datasheet Get Quote
Description 12 x 2.5mm² XAT Power to IEC 60092-350 Black LSHF
No. Cores 12
mm² 2.5
Colour Black
Sheath LSHF
Downloads SH-PC-A
Approval DNV-GL & ABS
Alternative to MPRXCX, LKSM-HF, HFX-A, SH-PC-A
Downloads Datasheet
XAT002519
19 x 2.5mm² XAT Power to IEC 60092-350 Black LSHF
19 2.5 Black LSHF DNV-GL & ABS MPRXCX
LKSM-HF
HFX-A
SH-PC-A
Datasheet Get Quote
Description 19 x 2.5mm² XAT Power to IEC 60092-350 Black LSHF
No. Cores 19
mm² 2.5
Colour Black
Sheath LSHF
Downloads SH-PC-A
Approval DNV-GL & ABS
Alternative to MPRXCX, LKSM-HF, HFX-A, SH-PC-A
Downloads Datasheet
XAT004002
2 x 4.0mm² XAT Power to IEC 60092-350 Black LSHF
2 4 Black LSHF DNV-GL & ABS MPRXCX
LKSM-HF
HFX-A
SH-PC-A
Datasheet Get Quote
Description 2 x 4.0mm² XAT Power to IEC 60092-350 Black LSHF
No. Cores 2
mm² 4
Colour Black
Sheath LSHF
Downloads SH-PC-A
Approval DNV-GL & ABS
Alternative to MPRXCX, LKSM-HF, HFX-A, SH-PC-A
Downloads Datasheet
XAT004003
3 x 4.0mm² XAT Power to IEC 60092-350 Black LSHF
3 4 Black LSHF DNV-GL & ABS MPRXCX
LKSM-HF
HFX-A
SH-PC-A
Datasheet Get Quote
Description 3 x 4.0mm² XAT Power to IEC 60092-350 Black LSHF
No. Cores 3
mm² 4
Colour Black
Sheath LSHF
Downloads SH-PC-A
Approval DNV-GL & ABS
Alternative to MPRXCX, LKSM-HF, HFX-A, SH-PC-A
Downloads Datasheet
XAT004003E
3 x 4.0mm² XAT Power to IEC 60092-350 Black LSHF with green/yellow
3 4 Black LSHF DNV-GL & ABS MPRXCX
LKSM-HF
HFX-A
SH-PC-A
Datasheet Get Quote
Description 3 x 4.0mm² XAT Power to IEC 60092-350 Black LSHF with green/yellow
No. Cores 3
mm² 4
Colour Black
Sheath LSHF
Downloads SH-PC-A
Approval DNV-GL & ABS
Alternative to MPRXCX, LKSM-HF, HFX-A, SH-PC-A
Downloads Datasheet
XAT004004
4 x 4.0mm² XAT Power to IEC 60092-350 Black LSHF
4 4 Black LSHF DNV-GL & ABS MPRXCX
LKSM-HF
HFX-A
SH-PC-A
Datasheet Get Quote
Description 4 x 4.0mm² XAT Power to IEC 60092-350 Black LSHF
No. Cores 4
mm² 4
Colour Black
Sheath LSHF
Downloads SH-PC-A
Approval DNV-GL & ABS
Alternative to MPRXCX, LKSM-HF, HFX-A, SH-PC-A
Downloads Datasheet
XAT004005
5 x 4.0mm² XAT Power to IEC 60092-350 Black LSHF
5 4 Black LSHF DNV-GL & ABS MPRXCX
LKSM-HF
HFX-A
SH-PC-A
Datasheet Get Quote
Description 5 x 4.0mm² XAT Power to IEC 60092-350 Black LSHF
No. Cores 5
mm² 4
Colour Black
Sheath LSHF
Downloads SH-PC-A
Approval DNV-GL & ABS
Alternative to MPRXCX, LKSM-HF, HFX-A, SH-PC-A
Downloads Datasheet
XAT006001
1 x 6.0mm² XAT Power to IEC 60092-350 Black LSHF
1 6 Black LSHF DNV-GL & ABS MPRXCX
LKSM-HF
HFX-A
SH-PC-A
Datasheet Get Quote
Description 1 x 6.0mm² XAT Power to IEC 60092-350 Black LSHF
No. Cores 1
mm² 6
Colour Black
Sheath LSHF
Downloads SH-PC-A
Approval DNV-GL & ABS
Alternative to MPRXCX, LKSM-HF, HFX-A, SH-PC-A
Downloads Datasheet
XAT006002
2 x 6.0mm² XAT Power to IEC 60092-350 Black LSHF
2 6 Black LSHF DNV-GL & ABS MPRXCX
LKSM-HF
HFX-A
SH-PC-A
Datasheet Get Quote
Description 2 x 6.0mm² XAT Power to IEC 60092-350 Black LSHF
No. Cores 2
mm² 6
Colour Black
Sheath LSHF
Downloads SH-PC-A
Approval DNV-GL & ABS
Alternative to MPRXCX, LKSM-HF, HFX-A, SH-PC-A
Downloads Datasheet
XAT006003
3 x 6.0mm² XAT Power to IEC 60092-350 Black LSHF
3 6 Black LSHF DNV-GL & ABS MPRXCX
LKSM-HF
HFX-A
SH-PC-A
Datasheet Get Quote
Description 3 x 6.0mm² XAT Power to IEC 60092-350 Black LSHF
No. Cores 3
mm² 6
Colour Black
Sheath LSHF
Downloads SH-PC-A
Approval DNV-GL & ABS
Alternative to MPRXCX, LKSM-HF, HFX-A, SH-PC-A
Downloads Datasheet
XAT006003E
3 x 6.0mm² XAT Power to IEC 60092-350 Black LSHF with green/yellow
3 4 Black LSHF DNV-GL & ABS MPRXCX
LKSM-HF
HFX-A
SH-PC-A
Datasheet Get Quote
Description 3 x 6.0mm² XAT Power to IEC 60092-350 Black LSHF with green/yellow
No. Cores 3
mm² 4
Colour Black
Sheath LSHF
Downloads SH-PC-A
Approval DNV-GL & ABS
Alternative to MPRXCX, LKSM-HF, HFX-A, SH-PC-A
Downloads Datasheet
XAT006004
4 x 6.0mm² XAT Power to IEC 60092-350 Black LSHF
4 6 Black LSHF DNV-GL & ABS MPRXCX
LKSM-HF
HFX-A
SH-PC-A
Datasheet Get Quote
Description 4 x 6.0mm² XAT Power to IEC 60092-350 Black LSHF
No. Cores 4
mm² 6
Colour Black
Sheath LSHF
Downloads SH-PC-A
Approval DNV-GL & ABS
Alternative to MPRXCX, LKSM-HF, HFX-A, SH-PC-A
Downloads Datasheet
XAT006005
5 x 6.0mm² XAT Power to IEC 60092-350 Black LSHF
5 6 Black LSHF DNV-GL & ABS MPRXCX
LKSM-HF
HFX-A
SH-PC-A
Datasheet Get Quote
Description 5 x 6.0mm² XAT Power to IEC 60092-350 Black LSHF
No. Cores 5
mm² 6
Colour Black
Sheath LSHF
Downloads SH-PC-A
Approval DNV-GL & ABS
Alternative to MPRXCX, LKSM-HF, HFX-A, SH-PC-A
Downloads Datasheet
XAT010001
1 x 10mm² XAT Power to IEC 60092-350 Black LSHF
1 10 Black LSHF DNV-GL & ABS MPRXCX
LKSM-HF
HFX-A
SH-PC-A
Datasheet Get Quote
Description 1 x 10mm² XAT Power to IEC 60092-350 Black LSHF
No. Cores 1
mm² 10
Colour Black
Sheath LSHF
Downloads SH-PC-A
Approval DNV-GL & ABS
Alternative to MPRXCX, LKSM-HF, HFX-A, SH-PC-A
Downloads Datasheet
XAT010003
3 x 10mm² XAT Power to IEC 60092-350 Black LSHF
3 10 Black LSHF DNV-GL & ABS MPRXCX
LKSM-HF
HFX-A
SH-PC-A
Datasheet Get Quote
Description 3 x 10mm² XAT Power to IEC 60092-350 Black LSHF
No. Cores 3
mm² 10
Colour Black
Sheath LSHF
Downloads SH-PC-A
Approval DNV-GL & ABS
Alternative to MPRXCX, LKSM-HF, HFX-A, SH-PC-A
Downloads Datasheet
XAT010004
4 x 10mm² XAT Power to IEC 60092-350 Black LSHF
4 10 Black LSHF DNV-GL & ABS MPRXCX
LKSM-HF
HFX-A
SH-PC-A
Datasheet Get Quote
Description 4 x 10mm² XAT Power to IEC 60092-350 Black LSHF
No. Cores 4
mm² 10
Colour Black
Sheath LSHF
Downloads SH-PC-A
Approval DNV-GL & ABS
Alternative to MPRXCX, LKSM-HF, HFX-A, SH-PC-A
Downloads Datasheet
XAT010005
5 x 10mm² XAT Power to IEC 60092-350 Black LSHF
5 10 Black LSHF DNV-GL & ABS MPRXCX
LKSM-HF
HFX-A
SH-PC-A
Datasheet Get Quote
Description 5 x 10mm² XAT Power to IEC 60092-350 Black LSHF
No. Cores 5
mm² 10
Colour Black
Sheath LSHF
Downloads SH-PC-A
Approval DNV-GL & ABS
Alternative to MPRXCX, LKSM-HF, HFX-A, SH-PC-A
Downloads Datasheet
XAT016001
1 x 16mm² XAT Power to IEC 60092-350 Black LSHF
1 16 Black LSHF DNV-GL & ABS MPRXCX
LKSM-HF
HFX-A
SH-PC-A
Datasheet Get Quote
Description 1 x 16mm² XAT Power to IEC 60092-350 Black LSHF
No. Cores 1
mm² 16
Colour Black
Sheath LSHF
Downloads SH-PC-A
Approval DNV-GL & ABS
Alternative to MPRXCX, LKSM-HF, HFX-A, SH-PC-A
Downloads Datasheet
XAT016003
3 x 16mm² XAT Power to IEC 60092-350 Black LSHF
3 16 Black LSHF DNV-GL & ABS MPRXCX
LKSM-HF
HFX-A
SH-PC-A
Datasheet Get Quote
Description 3 x 16mm² XAT Power to IEC 60092-350 Black LSHF
No. Cores 3
mm² 16
Colour Black
Sheath LSHF
Downloads SH-PC-A
Approval DNV-GL & ABS
Alternative to MPRXCX, LKSM-HF, HFX-A, SH-PC-A
Downloads Datasheet
XAT016003E
3 x 16mm² XAT Power to IEC 60092-350 Black LSHF with green/yellow
3 16 Black LSHF DNV-GL & ABS MPRXCX
LKSM-HF
HFX-A
SH-PC-A
Datasheet Get Quote
Description 3 x 16mm² XAT Power to IEC 60092-350 Black LSHF with green/yellow
No. Cores 3
mm² 16
Colour Black
Sheath LSHF
Downloads SH-PC-A
Approval DNV-GL & ABS
Alternative to MPRXCX, LKSM-HF, HFX-A, SH-PC-A
Downloads Datasheet
XAT016004
4 x 16mm² XAT Power to IEC 60092-350 Black LSHF
4 16 Black LSHF DNV-GL & ABS MPRXCX
LKSM-HF
HFX-A
SH-PC-A
Datasheet Get Quote
Description 4 x 16mm² XAT Power to IEC 60092-350 Black LSHF
No. Cores 4
mm² 16
Colour Black
Sheath LSHF
Downloads SH-PC-A
Approval DNV-GL & ABS
Alternative to MPRXCX, LKSM-HF, HFX-A, SH-PC-A
Downloads Datasheet
XAT016005
5 x 16mm² XAT Power to IEC 60092-350 Black LSHF
5 16 Black LSHF DNV-GL & ABS MPRXCX
LKSM-HF
HFX-A
SH-PC-A
Datasheet Get Quote
Description 5 x 16mm² XAT Power to IEC 60092-350 Black LSHF
No. Cores 5
mm² 16
Colour Black
Sheath LSHF
Downloads SH-PC-A
Approval DNV-GL & ABS
Alternative to MPRXCX, LKSM-HF, HFX-A, SH-PC-A
Downloads Datasheet
XAT025001
1 x 25mm² XAT Power to IEC 60092-350 Black LSHF
1 25 Black LSHF DNV-GL & ABS MPRXCX
LKSM-HF
HFX-A
SH-PC-A
Datasheet Get Quote
Description 1 x 25mm² XAT Power to IEC 60092-350 Black LSHF
No. Cores 1
mm² 25
Colour Black
Sheath LSHF
Downloads SH-PC-A
Approval DNV-GL & ABS
Alternative to MPRXCX, LKSM-HF, HFX-A, SH-PC-A
Downloads Datasheet
XAT025003
3 x 25mm² XAT Power to IEC 60092-350 Black LSHF
3 25 Black LSHF DNV-GL & ABS MPRXCX
LKSM-HF
HFX-A
SH-PC-A
Datasheet Get Quote
Description 3 x 25mm² XAT Power to IEC 60092-350 Black LSHF
No. Cores 3
mm² 25
Colour Black
Sheath LSHF
Downloads SH-PC-A
Approval DNV-GL & ABS
Alternative to MPRXCX, LKSM-HF, HFX-A, SH-PC-A
Downloads Datasheet
XAT025004
4 x 25mm² XAT Power to IEC 60092-350 Black LSHF
4 25 Black LSHF DNV-GL & ABS MPRXCX
LKSM-HF
HFX-A
SH-PC-A
Datasheet Get Quote
Description 4 x 25mm² XAT Power to IEC 60092-350 Black LSHF
No. Cores 4
mm² 25
Colour Black
Sheath LSHF
Downloads SH-PC-A
Approval DNV-GL & ABS
Alternative to MPRXCX, LKSM-HF, HFX-A, SH-PC-A
Downloads Datasheet
XAT035001
1 x 35mm² XAT Power to IEC 60092-350 Black LSHF
1 35 Black LSHF DNV-GL & ABS MPRXCX
LKSM-HF
HFX-A
SH-PC-A
Datasheet Get Quote
Description 1 x 35mm² XAT Power to IEC 60092-350 Black LSHF
No. Cores 1
mm² 35
Colour Black
Sheath LSHF
Downloads SH-PC-A
Approval DNV-GL & ABS
Alternative to MPRXCX, LKSM-HF, HFX-A, SH-PC-A
Downloads Datasheet
XAT035003
3 x 35mm² XAT Power to IEC 60092-350 Black LSHF
3 35 Black LSHF DNV-GL & ABS MPRXCX
LKSM-HF
HFX-A
SH-PC-A
Datasheet Get Quote
Description 3 x 35mm² XAT Power to IEC 60092-350 Black LSHF
No. Cores 3
mm² 35
Colour Black
Sheath LSHF
Downloads SH-PC-A
Approval DNV-GL & ABS
Alternative to MPRXCX, LKSM-HF, HFX-A, SH-PC-A
Downloads Datasheet
XAT035004
4 x 35mm² XAT Power to IEC 60092-350 Black LSHF
4 35 Black LSHF DNV-GL & ABS MPRXCX
LKSM-HF
HFX-A
SH-PC-A
Datasheet Get Quote
Description 4 x 35mm² XAT Power to IEC 60092-350 Black LSHF
No. Cores 4
mm² 35
Colour Black
Sheath LSHF
Downloads SH-PC-A
Approval DNV-GL & ABS
Alternative to MPRXCX, LKSM-HF, HFX-A, SH-PC-A
Downloads Datasheet
XAT050001
1 x 50mm² XAT Power to IEC 60092-350 Black LSHF
1 50 Black LSHF DNV-GL & ABS MPRXCX
LKSM-HF
HFX-A
SH-PC-A
Datasheet Get Quote
Description 1 x 50mm² XAT Power to IEC 60092-350 Black LSHF
No. Cores 1
mm² 50
Colour Black
Sheath LSHF
Downloads SH-PC-A
Approval DNV-GL & ABS
Alternative to MPRXCX, LKSM-HF, HFX-A, SH-PC-A
Downloads Datasheet
XAT050003
3 x 50mm² XAT Power to IEC 60092-350 Black LSHF
3 50 Black LSHF DNV-GL & ABS MPRXCX
LKSM-HF
HFX-A
SH-PC-A
Datasheet Get Quote
Description 3 x 50mm² XAT Power to IEC 60092-350 Black LSHF
No. Cores 3
mm² 50
Colour Black
Sheath LSHF
Downloads SH-PC-A
Approval DNV-GL & ABS
Alternative to MPRXCX, LKSM-HF, HFX-A, SH-PC-A
Downloads Datasheet
XAT050004
4 x 50mm² XAT Power to IEC 60092-350 Black LSHF
4 50 Black LSHF DNV-GL & ABS MPRXCX
LKSM-HF
HFX-A
SH-PC-A
Datasheet Get Quote
Description 4 x 50mm² XAT Power to IEC 60092-350 Black LSHF
No. Cores 4
mm² 50
Colour Black
Sheath LSHF
Downloads SH-PC-A
Approval DNV-GL & ABS
Alternative to MPRXCX, LKSM-HF, HFX-A, SH-PC-A
Downloads Datasheet
XAT070001
1 x 70mm² XAT Power to IEC 60092-350 Black LSHF
1 70 Black LSHF DNV-GL & ABS MPRXCX
LKSM-HF
HFX-A
SH-PC-A
Datasheet Get Quote
Description 1 x 70mm² XAT Power to IEC 60092-350 Black LSHF
No. Cores 1
mm² 70
Colour Black
Sheath LSHF
Downloads SH-PC-A
Approval DNV-GL & ABS
Alternative to MPRXCX, LKSM-HF, HFX-A, SH-PC-A
Downloads Datasheet
XAT070003
3 x 70mm² XAT Power to IEC 60092-350 Black LSHF
3 70 Black LSHF DNV-GL & ABS MPRXCX
LKSM-HF
HFX-A
SH-PC-A
Datasheet Get Quote
Description 3 x 70mm² XAT Power to IEC 60092-350 Black LSHF
No. Cores 3
mm² 70
Colour Black
Sheath LSHF
Downloads SH-PC-A
Approval DNV-GL & ABS
Alternative to MPRXCX, LKSM-HF, HFX-A, SH-PC-A
Downloads Datasheet
XAT070004
4 x 70mm² XAT Power to IEC 60092-350 Black LSHF
4 70 Black LSHF DNV-GL & ABS MPRXCX
LKSM-HF
HFX-A
SH-PC-A
Datasheet Get Quote
Description 4 x 70mm² XAT Power to IEC 60092-350 Black LSHF
No. Cores 4
mm² 70
Colour Black
Sheath LSHF
Downloads SH-PC-A
Approval DNV-GL & ABS
Alternative to MPRXCX, LKSM-HF, HFX-A, SH-PC-A
Downloads Datasheet
XAT095001
1 x 95mm² XAT Power to IEC 60092-350 Black LSHF
1 95 Black LSHF DNV-GL & ABS MPRXCX
LKSM-HF
HFX-A
SH-PC-A
Datasheet Get Quote
Description 1 x 95mm² XAT Power to IEC 60092-350 Black LSHF
No. Cores 1
mm² 95
Colour Black
Sheath LSHF
Downloads SH-PC-A
Approval DNV-GL & ABS
Alternative to MPRXCX, LKSM-HF, HFX-A, SH-PC-A
Downloads Datasheet
XAT095003
3 x 95mm² XAT Power to IEC 60092-350 Black LSHF
3 95 Black LSHF DNV-GL & ABS MPRXCX
LKSM-HF
HFX-A
SH-PC-A
Datasheet Get Quote
Description 3 x 95mm² XAT Power to IEC 60092-350 Black LSHF
No. Cores 3
mm² 95
Colour Black
Sheath LSHF
Downloads SH-PC-A
Approval DNV-GL & ABS
Alternative to MPRXCX, LKSM-HF, HFX-A, SH-PC-A
Downloads Datasheet
XAT120001
1 x 120mm² XAT Power to IEC 60092-350 Black LSHF
1 120 Black LSHF DNV-GL & ABS MPRXCX
LKSM-HF
HFX-A
SH-PC-A
Datasheet Get Quote
Description 1 x 120mm² XAT Power to IEC 60092-350 Black LSHF
No. Cores 1
mm² 120
Colour Black
Sheath LSHF
Downloads SH-PC-A
Approval DNV-GL & ABS
Alternative to MPRXCX, LKSM-HF, HFX-A, SH-PC-A
Downloads Datasheet
XAT120003
3 x 120mm² XAT Power to IEC 60092-350 Black LSHF
3 120 Black LSHF DNV-GL & ABS MPRXCX
LKSM-HF
HFX-A
SH-PC-A
Datasheet Get Quote
Description 3 x 120mm² XAT Power to IEC 60092-350 Black LSHF
No. Cores 3
mm² 120
Colour Black
Sheath LSHF
Downloads SH-PC-A
Approval DNV-GL & ABS
Alternative to MPRXCX, LKSM-HF, HFX-A, SH-PC-A
Downloads Datasheet
XAT150001
1 x 150mm² XAT Power to IEC 60092-350 Black LSHF
1 150 Black LSHF DNV-GL & ABS MPRXCX
LKSM-HF
HFX-A
SH-PC-A
Datasheet Get Quote
Description 1 x 150mm² XAT Power to IEC 60092-350 Black LSHF
No. Cores 1
mm² 150
Colour Black
Sheath LSHF
Downloads SH-PC-A
Approval DNV-GL & ABS
Alternative to MPRXCX, LKSM-HF, HFX-A, SH-PC-A
Downloads Datasheet
XAT150003
3 x 150mm² XAT Power to IEC 60092-350 Black LSHF
3 150 Black LSHF DNV-GL & ABS MPRXCX
LKSM-HF
HFX-A
SH-PC-A
Datasheet Get Quote
Description 3 x 150mm² XAT Power to IEC 60092-350 Black LSHF
No. Cores 3
mm² 150
Colour Black
Sheath LSHF
Downloads SH-PC-A
Approval DNV-GL & ABS
Alternative to MPRXCX, LKSM-HF, HFX-A, SH-PC-A
Downloads Datasheet
XAT185001
1 x 185mm² XAT Power to IEC 60092-350 Black LSHF
1 185 Black LSHF DNV-GL & ABS MPRXCX
LKSM-HF
HFX-A
SH-PC-A
Datasheet Get Quote
Description 1 x 185mm² XAT Power to IEC 60092-350 Black LSHF
No. Cores 1
mm² 185
Colour Black
Sheath LSHF
Downloads SH-PC-A
Approval DNV-GL & ABS
Alternative to MPRXCX, LKSM-HF, HFX-A, SH-PC-A
Downloads Datasheet
XAT240001
1 x 240mm² XAT Power to IEC 60092-350 Black LSHF
1 240 Black LSHF DNV-GL & ABS MPRXCX
LKSM-HF
HFX-A
SH-PC-A
Datasheet Get Quote
Description 1 x 240mm² XAT Power to IEC 60092-350 Black LSHF
No. Cores 1
mm² 240
Colour Black
Sheath LSHF
Downloads SH-PC-A
Approval DNV-GL & ABS
Alternative to MPRXCX, LKSM-HF, HFX-A, SH-PC-A
Downloads Datasheet
XAT300001
1 x 300mm² XAT Power to IEC 60092-350 Black LSHF
1 300 Black LSHF DNV-GL & ABS MPRXCX
LKSM-HF
HFX-A
SH-PC-A
Datasheet Get Quote
Description 1 x 300mm² XAT Power to IEC 60092-350 Black LSHF
No. Cores 1
mm² 300
Colour Black
Sheath LSHF
Downloads SH-PC-A
Approval DNV-GL & ABS
Alternative to MPRXCX, LKSM-HF, HFX-A, SH-PC-A
Downloads Datasheet
