XT Unarmoured Instrumentation Cable Individual Screen to IEC 60092-376

code: G1443

  • IEC 60092-376 Standard
  • 150/250V Rated
  • SHF1 Sheath
XT Instrumentation marine cables were originally designed as a lightweight ship wiring cable. They have become popular throughout the petrochemical and process control industries due to their low smoke, low gas generation and increased flame retardant properties. XT-C offers collective foil screening whilst XT-I includes an additional foil screen around each pair to prevent crosstalk.

Manufacturers alternative reference: Helkama RFA-HF (i), Prysmian HFX-ISOSU

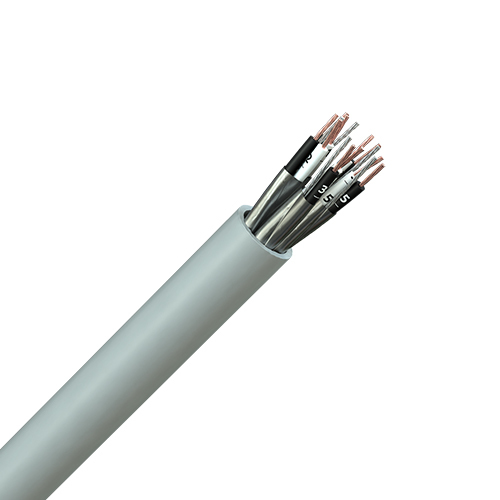

Image representative of product style, product supplied may vary.
Voltage Rating:  150/250V (300V)
Conductor Stranding:
IEC 60228 Class 2 or Class 5, plain copper or tinned copper
Temperature Rating: -40°C to +85°C or 90°C
Bending Radius Static:6 x overall diameter
Flame Retardant: IEC 60332-1-2, IEC 60332-3-22 Cat A
Smoke Emission:
IEC 61034-1 & 2
Halogen Emission: IEC 60754-1 & 2
Manufactured To: IEC 60092 series
3rd Party Approvals:
Lloyds, DNV, ABS, BV and Rina.

Approvals may vary between manufacture brands. Please tell us at time of enquiry if you have a specific requirement.

Part codes below are for cables with a grey sheath.

For a blue sheath please suffix the part code with '01' or for a black sheath please suffix the part code with '00'.

Construction and technical information may vary between manufacturer brands. Please check at the time of order.

XT-I: Copper or tinned copper conductors, XLPE insulation, each pair aluminium/polyester foil screened with a drain wire, pairs laid up, collective aluminium foil screen and drain wire, SHF 1 Low Smoke Halogen Free sheath – Grey.

Construction and technical information may vary between manufacturer brands. Please check at the time of order.

Conductor Size: 0.5mm²  0.75mm²
Conductor Resistance:
<36.0 Ohms/km
<26.7 Ohms/km
Pair Capacitance @ 800Hz
Individual Screen: 55nF/km
70nF/km

Construction and technical information may vary between manufacturer brands. Please check at the time of order.

Pairs - coloured and numbered. This can vary depending on the manufacturer, please specify if you have a preference.

Construction and technical information may vary between manufacturer brands. Please check at the time of order.

Order by 4.30pm for delivery by

Code Description mm² No. Pairs Screen Colour Sheath Alternative to Downloads
XTI0502P
2 x 2 x 0.5mm² XT Instrumentation to IEC 60092-376 Individually Screened Pairs Grey LSHF
0.5 2 Individual & Overall Foil Grey LSHF RFA-HF (i)
HFX-ISOSU
SH-CI-IC-U
Datasheet Get Quote
Description 2 x 2 x 0.5mm² XT Instrumentation to IEC 60092-376 Individually Screened Pairs Grey LSHF
mm² 0.5
No. Pairs 2
Screen Individual & Overall Foil
Colour Grey
Sheath LSHF
Alternative to RFA-HF (i), HFX-ISOSU, SH-CI-IC-U
Downloads SH-CI-IC-U
Downloads Datasheet
XTI0702P
2 x 2 x 0.75mm² XT Instrumentation to IEC 60092-376 Individually Screened Pairs Grey LSHF
0.75 2 Individual & Overall Foil Grey LSHF RFA-HF (i)
HFX-ISOSU
SH-CI-IC-U
Datasheet Get Quote
Description 2 x 2 x 0.75mm² XT Instrumentation to IEC 60092-376 Individually Screened Pairs Grey LSHF
mm² 0.75
No. Pairs 2
Screen Individual & Overall Foil
Colour Grey
Sheath LSHF
Alternative to RFA-HF (i), HFX-ISOSU, SH-CI-IC-U
Downloads SH-CI-IC-U
Downloads Datasheet
XTI0504P
4 x 2 x 0.5mm² XT Instrumentation to IEC 60092-376 Individually Screened Pairs Grey LSHF
0.5 4 Individual & Overall Foil Grey LSHF RFA-HF (i)
HFX-ISOSU
SH-CI-IC-U
Datasheet Get Quote
Description 4 x 2 x 0.5mm² XT Instrumentation to IEC 60092-376 Individually Screened Pairs Grey LSHF
mm² 0.5
No. Pairs 4
Screen Individual & Overall Foil
Colour Grey
Sheath LSHF
Alternative to RFA-HF (i), HFX-ISOSU, SH-CI-IC-U
Downloads SH-CI-IC-U
Downloads Datasheet
XTI0704P
4 x 2 x 0.75mm² XT Instrumentation to IEC 60092-376 Individually Screened Pairs Grey LSHF
0.75 4 Individual & Overall Foil Grey LSHF RFA-HF (i)
HFX-ISOSU
SH-CI-IC-U
Datasheet Get Quote
Description 4 x 2 x 0.75mm² XT Instrumentation to IEC 60092-376 Individually Screened Pairs Grey LSHF
mm² 0.75
No. Pairs 4
Screen Individual & Overall Foil
Colour Grey
Sheath LSHF
Alternative to RFA-HF (i), HFX-ISOSU, SH-CI-IC-U
Downloads SH-CI-IC-U
Downloads Datasheet
XTI0505P
5 x 2 x 0.5mm² XT Instrumentation to IEC 60092-376 Individually Screened Pairs Grey LSHF
0.5 5 Individual & Overall Foil Grey LSHF RFA-HF (i)
HFX-ISOSU
SH-CI-IC-U
Datasheet Get Quote
Description 5 x 2 x 0.5mm² XT Instrumentation to IEC 60092-376 Individually Screened Pairs Grey LSHF
mm² 0.5
No. Pairs 5
Screen Individual & Overall Foil
Colour Grey
Sheath LSHF
Alternative to RFA-HF (i), HFX-ISOSU, SH-CI-IC-U
Downloads SH-CI-IC-U
Downloads Datasheet
XTI0507P
7 x 2 x 0.5mm² XT Instrumentation to IEC 60092-376 Individually Screened Pairs Grey LSHF
0.5 7 Individual & Overall Foil Grey LSHF RFA-HF (i)
HFX-ISOSU
SH-CI-IC-U
Datasheet Get Quote
Description 7 x 2 x 0.5mm² XT Instrumentation to IEC 60092-376 Individually Screened Pairs Grey LSHF
mm² 0.5
No. Pairs 7
Screen Individual & Overall Foil
Colour Grey
Sheath LSHF
Alternative to RFA-HF (i), HFX-ISOSU, SH-CI-IC-U
Downloads SH-CI-IC-U
Downloads Datasheet
XTI0707P
7 x 2 x 0.75mm² XT Instrumentation to IEC 60092-376 Individually Screened Pairs Grey LSHF
0.75 7 Individual & Overall Foil Grey LSHF RFA-HF (i)
HFX-ISOSU
SH-CI-IC-U
Datasheet Get Quote
Description 7 x 2 x 0.75mm² XT Instrumentation to IEC 60092-376 Individually Screened Pairs Grey LSHF
mm² 0.75
No. Pairs 7
Screen Individual & Overall Foil
Colour Grey
Sheath LSHF
Alternative to RFA-HF (i), HFX-ISOSU, SH-CI-IC-U
Downloads SH-CI-IC-U
Downloads Datasheet
XTI0508P
8 x 2 x 0.5mm² XT Instrumentation to IEC 60092-376 Individually Screened Pairs Grey LSHF
0.5 8 Individual & Overall Foil Grey LSHF RFA-HF (i)
HFX-ISOSU
SH-CI-IC-U
Datasheet Get Quote
Description 8 x 2 x 0.5mm² XT Instrumentation to IEC 60092-376 Individually Screened Pairs Grey LSHF
mm² 0.5
No. Pairs 8
Screen Individual & Overall Foil
Colour Grey
Sheath LSHF
Alternative to RFA-HF (i), HFX-ISOSU, SH-CI-IC-U
Downloads SH-CI-IC-U
Downloads Datasheet
XTI0708P
8 x 2 x 0.75mm² XT Instrumentation to IEC 60092-376 Individually Screened Pairs Grey LSHF
0.75 8 Individual & Overall Foil Grey LSHF RFA-HF (i)
HFX-ISOSU
SH-CI-IC-U
Datasheet Get Quote
Description 8 x 2 x 0.75mm² XT Instrumentation to IEC 60092-376 Individually Screened Pairs Grey LSHF
mm² 0.75
No. Pairs 8
Screen Individual & Overall Foil
Colour Grey
Sheath LSHF
Alternative to RFA-HF (i), HFX-ISOSU, SH-CI-IC-U
Downloads SH-CI-IC-U
Downloads Datasheet
XTI0510P
10 x 2 x 0.5mm² XT Instrumentation to IEC 60092-376 Individually Screened Pairs Grey LSHF
0.5 10 Individual & Overall Foil Grey LSHF RFA-HF (i)
HFX-ISOSU
SH-CI-IC-U
Datasheet Get Quote
Description 10 x 2 x 0.5mm² XT Instrumentation to IEC 60092-376 Individually Screened Pairs Grey LSHF
mm² 0.5
No. Pairs 10
Screen Individual & Overall Foil
Colour Grey
Sheath LSHF
Alternative to RFA-HF (i), HFX-ISOSU, SH-CI-IC-U
Downloads SH-CI-IC-U
Downloads Datasheet
XTI0710P
10 x 2 x 0.75mm² XT Instrumentation to IEC 60092-376 Individually Screened Pairs Grey LSHF
0.75 10 Individual & Overall Foil Grey LSHF RFA-HF (i)
HFX-ISOSU
SH-CI-IC-U
Datasheet Get Quote
Description 10 x 2 x 0.75mm² XT Instrumentation to IEC 60092-376 Individually Screened Pairs Grey LSHF
mm² 0.75
No. Pairs 10
Screen Individual & Overall Foil
Colour Grey
Sheath LSHF
Alternative to RFA-HF (i), HFX-ISOSU, SH-CI-IC-U
Downloads SH-CI-IC-U
Downloads Datasheet
XTI0512P
12 x 2 x 0.5mm² XT Instrumentation to IEC 60092-376 Individually Screened Pairs Grey LSHF
0.5 12 Individual & Overall Foil Grey LSHF RFA-HF (i)
HFX-ISOSU
SH-CI-IC-U
Datasheet Get Quote
Description 12 x 2 x 0.5mm² XT Instrumentation to IEC 60092-376 Individually Screened Pairs Grey LSHF
mm² 0.5
No. Pairs 12
Screen Individual & Overall Foil
Colour Grey
Sheath LSHF
Alternative to RFA-HF (i), HFX-ISOSU, SH-CI-IC-U
Downloads SH-CI-IC-U
Downloads Datasheet
XTI0712P
12 x 2 x 0.75mm² XT Instrumentation to IEC 60092-376 Individually Screened Pairs Grey LSHF
0.75 12 Individual & Overall Foil Grey LSHF RFA-HF (i)
HFX-ISOSU
SH-CI-IC-U
Datasheet Get Quote
Description 12 x 2 x 0.75mm² XT Instrumentation to IEC 60092-376 Individually Screened Pairs Grey LSHF
mm² 0.75
No. Pairs 12
Screen Individual & Overall Foil
Colour Grey
Sheath LSHF
Alternative to RFA-HF (i), HFX-ISOSU, SH-CI-IC-U
Downloads SH-CI-IC-U
Downloads Datasheet
XTI0514P
14 x 2 x 0.5mm² XT Instrumentation to IEC 60092-376 Individually Screened Pairs Grey LSHF
0.5 14 Individual & Overall Foil Grey LSHF RFA-HF (i)
HFX-ISOSU
SH-CI-IC-U
Datasheet Get Quote
Description 14 x 2 x 0.5mm² XT Instrumentation to IEC 60092-376 Individually Screened Pairs Grey LSHF
mm² 0.5
No. Pairs 14
Screen Individual & Overall Foil
Colour Grey
Sheath LSHF
Alternative to RFA-HF (i), HFX-ISOSU, SH-CI-IC-U
Downloads SH-CI-IC-U
Downloads Datasheet
XTI0714P
14 x 2 x 0.75mm² XT Instrumentation to IEC 60092-376 Individually Screened Pairs Grey LSHF
0.75 14 Individual & Overall Foil Grey LSHF RFA-HF (i)
HFX-ISOSU
SH-CI-IC-U
Datasheet Get Quote
Description 14 x 2 x 0.75mm² XT Instrumentation to IEC 60092-376 Individually Screened Pairs Grey LSHF
mm² 0.75
No. Pairs 14
Screen Individual & Overall Foil
Colour Grey
Sheath LSHF
Alternative to RFA-HF (i), HFX-ISOSU, SH-CI-IC-U
Downloads SH-CI-IC-U
Downloads Datasheet
XTI0519P
19 x 2 x 0.5mm² XT Instrumentation to IEC 60092-376 Individually Screened Pairs Grey LSHF
0.5 19 Individual & Overall Foil Grey LSHF RFA-HF (i)
HFX-ISOSU
SH-CI-IC-U
Datasheet Get Quote
Description 19 x 2 x 0.5mm² XT Instrumentation to IEC 60092-376 Individually Screened Pairs Grey LSHF
mm² 0.5
No. Pairs 19
Screen Individual & Overall Foil
Colour Grey
Sheath LSHF
Alternative to RFA-HF (i), HFX-ISOSU, SH-CI-IC-U
Downloads SH-CI-IC-U
Downloads Datasheet
XTI0719P
19 x 2 x 0.75mm² XT Instrumentation to IEC 60092-376 Individually Screened Pairs Grey LSHF
0.75 19 Individual & Overall Foil Grey LSHF RFA-HF (i)
HFX-ISOSU
SH-CI-IC-U
Datasheet Get Quote
Description 19 x 2 x 0.75mm² XT Instrumentation to IEC 60092-376 Individually Screened Pairs Grey LSHF
mm² 0.75
No. Pairs 19
Screen Individual & Overall Foil
Colour Grey
Sheath LSHF
Alternative to RFA-HF (i), HFX-ISOSU, SH-CI-IC-U
Downloads SH-CI-IC-U
Downloads Datasheet
XTI0524P
24 x 2 x 0.5mm² XT Instrumentation to IEC 60092-376 Individually Screened Pairs Grey LSHF
0.5 24 Individual & Overall Foil Grey LSHF RFA-HF (i)
HFX-ISOSU
SH-CI-IC-U
Datasheet Get Quote
Description 24 x 2 x 0.5mm² XT Instrumentation to IEC 60092-376 Individually Screened Pairs Grey LSHF
mm² 0.5
No. Pairs 24
Screen Individual & Overall Foil
Colour Grey
Sheath LSHF
Alternative to RFA-HF (i), HFX-ISOSU, SH-CI-IC-U
Downloads SH-CI-IC-U
Downloads Datasheet
XTI0724P
24 x 2 x 0.75mm² XT Instrumentation to IEC 60092-376 Individually Screened Pairs Grey LSHF
0.75 24 Individual & Overall Foil Grey LSHF RFA-HF (i)
HFX-ISOSU
SH-CI-IC-U
Datasheet Get Quote
Description 24 x 2 x 0.75mm² XT Instrumentation to IEC 60092-376 Individually Screened Pairs Grey LSHF
mm² 0.75
No. Pairs 24
Screen Individual & Overall Foil
Colour Grey
Sheath LSHF
Alternative to RFA-HF (i), HFX-ISOSU, SH-CI-IC-U
Downloads SH-CI-IC-U
Downloads Datasheet
