LF-329 LSHF LiYCY Screened Control Cable Colour Coded

Control Cables

Call Sales on
01727 840841
Click to Email Us
We will reply within 3 hours Monday-Friday 8am-6pm
Connect with us on LinkedIn
Follow us on Twitter
Niltox logo
lf-329-lshf-liycy-screened-control-cable-colour-coded-Grid-Imagelf-329-lshf-liycy-screened-control-cable-colour-coded-Product-Image
lf-329-lshf-liycy-screened-control-cable-colour-coded-Grid-Image

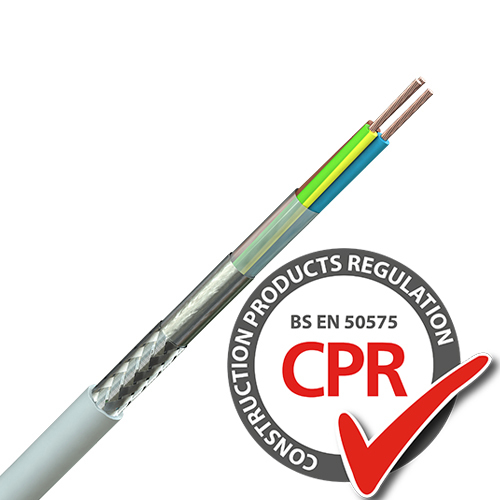

lf-329-lshf-liycy-screened-control-cable-colour-coded-Product-Image
Code: F1289

  • LSHF alternative to PVC LiYCY
  • Double screen protects against high and low mains interference
  • Independently tested to IEC60332-3-24C
  • Class 5 stranding for high flexibility
  • Ideal for installations in computer rooms, datacentres or other public buildings
Product Description
Developed to meet the need for Low Smoke Halogen Free flexible control cables, the Niltox® LF-329 range of LSHF LiYCY screened control cables covers all the popular sizes with cores cplour coded. Applications include hospitals, airports, computer suites and control rooms, in fact anywhere where power or signals need to be protected from electromagnetic radiation or from corrupting other cables or equipment. The LSHF properties protect both people and equipment.

The LSHF LiYCY control cables use LSHF (Low Smoke Halogen Free) properties, as well as offering a high degree of flame retardance thereby reducing the risk of spreading fire. Stocked on bulk reels, Niltox LF-329 LiYCY control cables can be cut to the length you require, reducing both costs and wastage.

These cables feature an aluminium foil screen with a tinned copper wire braid, providing excellent protection from Electromagnetic Interference (EMI).

Number coded versions are also available - LF-329 LSHF LiYCY Screened Control Cable Number Coded

Image representative of product style, product supplied may vary.
Construction
Fine copper wire strands to IEC 60228 class 5, Low Smoke Halogen Free insulation, cores twisted together, polyester tape, overall foil & tinned copper wire braid, grey Low Smoke Halogen Free sheath.

Cores are black with white numbers, a green/yellow earth core is included in cables with more than 2 cores.
Technical Information
Voltage Rating:
Working:300/500V
Test:2000V
Temperature Rating:
Flexing:-15°C to +90°C
Static:-25°C to +90°C
Bending Radius:
Flexing:10 x cable dia
Static:7.5 x cable dia
Current Rating:Refer to IET Regs Table 4F2A & 4F3A
Flame Retardant:
IEC 60332-1-2, IEC 60332-3-24C, UL 1685
Smoke Emission:
IEC 61034-2, UL 1685
Halogen Emission:
IEC 60754-1 & 2

Order by 4.30pm for delivery by

Code Description No. Cores mm² Screen Colour Sheath CPR Class Downloads
32901502C-D07
2 x 1.5mm² Niltox LF-329 LSHF LiYCY Dual Screened Control Multicore Grey Colour Coded
Get Quote
2 1.5 Overall Foil & Braid Grey LSHF Dca s1a d2 a1 Datasheet Get Quote
Description 2 x 1.5mm² Niltox LF-329 LSHF LiYCY Dual Screened Control Multicore Grey Colour Coded
No. Cores 2
mm² 1.5
Screen Overall Foil & Braid
Colour Grey
Sheath LSHF
CPR Class Dca s1a d2 a1
Downloads Niltox LF 329 Colour Coded Class Dca s1a, d2, a1
Downloads Datasheet
32901503C-D07
3 x 1.5mm² Niltox LF-329 LSHF LiYCY Dual Screened Control Multicore Grey Colour Coded
Get Quote
3 1.5 Overall Foil & Braid Grey LSHF Dca s1a d2 a1 Datasheet Get Quote
Description 3 x 1.5mm² Niltox LF-329 LSHF LiYCY Dual Screened Control Multicore Grey Colour Coded
No. Cores 3
mm² 1.5
Screen Overall Foil & Braid
Colour Grey
Sheath LSHF
CPR Class Dca s1a d2 a1
Downloads Niltox LF 329 Colour Coded Class Dca s1a, d2, a1
Downloads Datasheet
32901504E-D07
4 x 1.5mm² Niltox LF-329 LSHF LiYCY Dual Screened Control Multicore Grey Colour Coded
Get Quote
4 1.5 Overall Foil & Braid Grey LSHF Dca s1a d2 a1 Datasheet Get Quote
Description 4 x 1.5mm² Niltox LF-329 LSHF LiYCY Dual Screened Control Multicore Grey Colour Coded
No. Cores 4
mm² 1.5
Screen Overall Foil & Braid
Colour Grey
Sheath LSHF
CPR Class Dca s1a d2 a1
Downloads Niltox LF 329 Colour Coded Class Dca s1a, d2, a1
Downloads Datasheet
32901505E-D07
5 x 1.5mm² Niltox LF-329 LSHF LiYCY Dual Screened Control Multicore Grey Colour Coded
Get Quote
5 1.5 Overall Foil & Braid Grey LSHF Dca s1a d2 a1 Datasheet Get Quote
Description 5 x 1.5mm² Niltox LF-329 LSHF LiYCY Dual Screened Control Multicore Grey Colour Coded
No. Cores 5
mm² 1.5
Screen Overall Foil & Braid
Colour Grey
Sheath LSHF
CPR Class Dca s1a d2 a1
Downloads Niltox LF 329 Colour Coded Class Dca s1a, d2, a1
Downloads Datasheet
32902502C-D07
2 x 2.5mm² Niltox LF-329 LSHF LiYCY Dual Screened Control Multicore Grey Colour Coded
Get Quote
2 2.5 Overall Foil & Braid Grey LSHF Dca s1a d2 a1 Datasheet Get Quote
Description 2 x 2.5mm² Niltox LF-329 LSHF LiYCY Dual Screened Control Multicore Grey Colour Coded
No. Cores 2
mm² 2.5
Screen Overall Foil & Braid
Colour Grey
Sheath LSHF
CPR Class Dca s1a d2 a1
Downloads Niltox LF 329 Colour Coded Class Dca s1a, d2, a1
Downloads Datasheet
32902503C-D07
3 x 2.5mm² Niltox LF-329 LSHF LiYCY Dual Screened Control Multicore Grey Colour Coded
Get Quote
3 2.5 Overall Foil & Braid Grey LSHF Dca s1a d2 a1 Datasheet Get Quote
Description 3 x 2.5mm² Niltox LF-329 LSHF LiYCY Dual Screened Control Multicore Grey Colour Coded
No. Cores 3
mm² 2.5
Screen Overall Foil & Braid
Colour Grey
Sheath LSHF
CPR Class Dca s1a d2 a1
Downloads Niltox LF 329 Colour Coded Class Dca s1a, d2, a1
Downloads Datasheet
32902504E-D07
4 x 2.5mm² Niltox LF-329 LSHF LiYCY Dual Screened Control Multicore Grey Colour Coded
Get Quote
4 2.5 Overall Foil & Braid Grey LSHF Dca s1a d2 a1 Datasheet Get Quote
Description 4 x 2.5mm² Niltox LF-329 LSHF LiYCY Dual Screened Control Multicore Grey Colour Coded
No. Cores 4
mm² 2.5
Screen Overall Foil & Braid
Colour Grey
Sheath LSHF
CPR Class Dca s1a d2 a1
Downloads Niltox LF 329 Colour Coded Class Dca s1a, d2, a1
Downloads Datasheet
32902505E-D07
5 x 2.5mm² Niltox LF-329 LSHF LiYCY Dual Screened Control Multicore Grey Colour Coded
Get Quote
5 2.5 Overall Foil & Braid Grey LSHF Dca s1a d2 a1 Datasheet Get Quote
Description 5 x 2.5mm² Niltox LF-329 LSHF LiYCY Dual Screened Control Multicore Grey Colour Coded
No. Cores 5
mm² 2.5
Screen Overall Foil & Braid
Colour Grey
Sheath LSHF
CPR Class Dca s1a d2 a1
Downloads Niltox LF 329 Colour Coded Class Dca s1a, d2, a1
Downloads Datasheet
32904003C-D07
3 x 4.0mm² Niltox LF-329 LSHF LiYCY Dual Screened Control Multicore Grey Colour Coded
Get Quote
3 4 Overall Foil & Braid Grey LSHF Dca s1a d2 a1 Datasheet Get Quote
Description 3 x 4.0mm² Niltox LF-329 LSHF LiYCY Dual Screened Control Multicore Grey Colour Coded
No. Cores 3
mm² 4
Screen Overall Foil & Braid
Colour Grey
Sheath LSHF
CPR Class Dca s1a d2 a1
Downloads Niltox LF 329 Colour Coded Class Dca s1a, d2, a1
Downloads Datasheet
32904004E-D07
4 x 4.0mm² Niltox LF-329 LSHF LiYCY Dual Screened Control Multicore Grey Colour Coded
Get Quote
4 4 Overall Foil & Braid Grey LSHF Dca s1a d2 a1 Datasheet Get Quote
Description 4 x 4.0mm² Niltox LF-329 LSHF LiYCY Dual Screened Control Multicore Grey Colour Coded
No. Cores 4
mm² 4
Screen Overall Foil & Braid
Colour Grey
Sheath LSHF
CPR Class Dca s1a d2 a1
Downloads Niltox LF 329 Colour Coded Class Dca s1a, d2, a1
Downloads Datasheet
32904005E-D07
5 x 4.0mm² Niltox LF-329 LSHF LiYCY Dual Screened Control Multicore Grey Colour Coded
Get Quote
5 4 Overall Foil & Braid Grey LSHF Dca s1a d2 a1 Datasheet Get Quote
Description 5 x 4.0mm² Niltox LF-329 LSHF LiYCY Dual Screened Control Multicore Grey Colour Coded
No. Cores 5
mm² 4
Screen Overall Foil & Braid
Colour Grey
Sheath LSHF
CPR Class Dca s1a d2 a1
Downloads Niltox LF 329 Colour Coded Class Dca s1a, d2, a1
Downloads Datasheet
32906003C-D07
3 x 6.0mm² Niltox LF-329 LSHF LiYCY Dual Screened Control Multicore Grey Colour Coded
Get Quote
3 6 Overall Foil & Braid Grey LSHF Dca s1a d2 a1 Datasheet Get Quote
Description 3 x 6.0mm² Niltox LF-329 LSHF LiYCY Dual Screened Control Multicore Grey Colour Coded
No. Cores 3
mm² 6
Screen Overall Foil & Braid
Colour Grey
Sheath LSHF
CPR Class Dca s1a d2 a1
Downloads Niltox LF 329 Colour Coded Class Dca s1a, d2, a1
Downloads Datasheet
32906004E-D07
4 x 6.0mm² Niltox LF-329 LSHF LiYCY Dual Screened Control Multicore Grey Colour Coded
Get Quote
4 6 Overall Foil & Braid Grey LSHF Dca s1a d2 a1 Datasheet Get Quote
Description 4 x 6.0mm² Niltox LF-329 LSHF LiYCY Dual Screened Control Multicore Grey Colour Coded
No. Cores 4
mm² 6
Screen Overall Foil & Braid
Colour Grey
Sheath LSHF
CPR Class Dca s1a d2 a1
Downloads Niltox LF 329 Colour Coded Class Dca s1a, d2, a1
Downloads Datasheet
32906005E-D07
5 x 6.0mm² Niltox LF-329 LSHF LiYCY Dual Screened Control Multicore Grey Colour Coded
Get Quote
5 6 Overall Foil & Braid Grey LSHF Dca s1a d2 a1 Datasheet Get Quote
Description 5 x 6.0mm² Niltox LF-329 LSHF LiYCY Dual Screened Control Multicore Grey Colour Coded
No. Cores 5
mm² 6
Screen Overall Foil & Braid
Colour Grey
Sheath LSHF
CPR Class Dca s1a d2 a1
Downloads Niltox LF 329 Colour Coded Class Dca s1a, d2, a1
Downloads Datasheet
32910003C-D07
3 x 10mm² Niltox LF-329 LSHF LiYCY Dual Screened Control Multicore Grey Colour Coded
Get Quote
3 10 Overall Foil & Braid Grey LSHF Dca s1a d2 a1 Datasheet Get Quote
Description 3 x 10mm² Niltox LF-329 LSHF LiYCY Dual Screened Control Multicore Grey Colour Coded
No. Cores 3
mm² 10
Screen Overall Foil & Braid
Colour Grey
Sheath LSHF
CPR Class Dca s1a d2 a1
Downloads Niltox LF 329 Colour Coded Class Dca s1a, d2, a1
Downloads Datasheet
32910004E-D07
4 x 10mm² Niltox LF-329 LSHF LiYCY Dual Screened Control Multicore Grey Colour Coded
Get Quote
4 10 Overall Foil & Braid Grey LSHF Dca s1a d2 a1 Datasheet Get Quote
Description 4 x 10mm² Niltox LF-329 LSHF LiYCY Dual Screened Control Multicore Grey Colour Coded
No. Cores 4
mm² 10
Screen Overall Foil & Braid
Colour Grey
Sheath LSHF
CPR Class Dca s1a d2 a1
Downloads Niltox LF 329 Colour Coded Class Dca s1a, d2, a1
Downloads Datasheet
32910005E-D07
5 x 10mm² Niltox LF-329 LSHF LiYCY Dual Screened Control Multicore Grey Colour Coded
Get Quote
5 10 Overall Foil & Braid Grey LSHF Dca s1a d2 a1 Datasheet Get Quote
Description 5 x 10mm² Niltox LF-329 LSHF LiYCY Dual Screened Control Multicore Grey Colour Coded
No. Cores 5
mm² 10
Screen Overall Foil & Braid
Colour Grey
Sheath LSHF
CPR Class Dca s1a d2 a1
Downloads Niltox LF 329 Colour Coded Class Dca s1a, d2, a1
Downloads Datasheet
32916003C-D07
3 x 16mm² Niltox LF-329 LSHF LiYCY Dual Screened Control Multicore Grey Colour Coded
Get Quote
3 16 Overall Foil & Braid Grey LSHF Dca s1a d2 a1 Datasheet Get Quote
Description 3 x 16mm² Niltox LF-329 LSHF LiYCY Dual Screened Control Multicore Grey Colour Coded
No. Cores 3
mm² 16
Screen Overall Foil & Braid
Colour Grey
Sheath LSHF
CPR Class Dca s1a d2 a1
Downloads Niltox LF 329 Colour Coded Class Dca s1a, d2, a1
Downloads Datasheet
32916004E-D07
4 x 16mm² Niltox LF-329 LSHF LiYCY Dual Screened Control Multicore Grey Colour Coded
Get Quote
4 16 Overall Foil & Braid Grey LSHF Dca s1a d2 a1 Datasheet Get Quote
Description 4 x 16mm² Niltox LF-329 LSHF LiYCY Dual Screened Control Multicore Grey Colour Coded
No. Cores 4
mm² 16
Screen Overall Foil & Braid
Colour Grey
Sheath LSHF
CPR Class Dca s1a d2 a1
Downloads Niltox LF 329 Colour Coded Class Dca s1a, d2, a1
Downloads Datasheet
32916005E-D07
5 x 16mm² Niltox LF-329 LSHF LiYCY Dual Screened Control Multicore Grey Colour Coded
Get Quote
5 16 Overall Foil & Braid Grey LSHF Dca s1a d2 a1 Datasheet Get Quote
Description 5 x 16mm² Niltox LF-329 LSHF LiYCY Dual Screened Control Multicore Grey Colour Coded
No. Cores 5
mm² 16
Screen Overall Foil & Braid
Colour Grey
Sheath LSHF
CPR Class Dca s1a d2 a1
Downloads Niltox LF 329 Colour Coded Class Dca s1a, d2, a1
Downloads Datasheet
32925003C-D07
3 x 25mm² Niltox LF-329 LSHF LiYCY Dual Screened Control Multicore Grey Colour Coded
Get Quote
3 25 Overall Foil & Braid Grey LSHF Dca s1a d2 a1 Datasheet Get Quote
Description 3 x 25mm² Niltox LF-329 LSHF LiYCY Dual Screened Control Multicore Grey Colour Coded
No. Cores 3
mm² 25
Screen Overall Foil & Braid
Colour Grey
Sheath LSHF
CPR Class Dca s1a d2 a1
Downloads Niltox LF 329 Colour Coded Class Dca s1a, d2, a1
Downloads Datasheet
32925004E-D07
4 x 25mm² Niltox LF-329 LSHF LiYCY Dual Screened Control Multicore Grey Colour Coded
Get Quote
4 25 Overall Foil & Braid Grey LSHF Dca s1a d2 a1 Datasheet Get Quote
Description 4 x 25mm² Niltox LF-329 LSHF LiYCY Dual Screened Control Multicore Grey Colour Coded
No. Cores 4
mm² 25
Screen Overall Foil & Braid
Colour Grey
Sheath LSHF
CPR Class Dca s1a d2 a1
Downloads Niltox LF 329 Colour Coded Class Dca s1a, d2, a1
Downloads Datasheet
32925005E-D07
5 x 25mm² Niltox LF-329 LSHF LiYCY Dual Screened Control Multicore Grey Colour Coded
Get Quote
5 25 Overall Foil & Braid Grey LSHF Dca s1a d2 a1 Datasheet Get Quote
Description 5 x 25mm² Niltox LF-329 LSHF LiYCY Dual Screened Control Multicore Grey Colour Coded
No. Cores 5
mm² 25
Screen Overall Foil & Braid
Colour Grey
Sheath LSHF
CPR Class Dca s1a d2 a1
Downloads Niltox LF 329 Colour Coded Class Dca s1a, d2, a1
Downloads Datasheet
32935003C-D07
3 x 35mm² Niltox LF-329 LSHF LiYCY Dual Screened Control Multicore Grey Colour Coded
Get Quote
3 35 Overall Foil & Braid Grey LSHF Dca s1a d2 a1 Datasheet Get Quote
Description 3 x 35mm² Niltox LF-329 LSHF LiYCY Dual Screened Control Multicore Grey Colour Coded
No. Cores 3
mm² 35
Screen Overall Foil & Braid
Colour Grey
Sheath LSHF
CPR Class Dca s1a d2 a1
Downloads Niltox LF 329 Colour Coded Class Dca s1a, d2, a1
Downloads Datasheet
32935004E-D07
4 x 35mm² Niltox LF-329 LSHF LiYCY Dual Screened Control Multicore Grey Colour Coded
Get Quote
4 35 Overall Foil & Braid Grey LSHF Dca s1a d2 a1 Datasheet Get Quote
Description 4 x 35mm² Niltox LF-329 LSHF LiYCY Dual Screened Control Multicore Grey Colour Coded
No. Cores 4
mm² 35
Screen Overall Foil & Braid
Colour Grey
Sheath LSHF
CPR Class Dca s1a d2 a1
Downloads Niltox LF 329 Colour Coded Class Dca s1a, d2, a1
Downloads Datasheet
32935005E-D07
5 x 35mm² Niltox LF-329 LSHF LiYCY Dual Screened Control Multicore Grey Colour Coded
Get Quote
5 35 Overall Foil & Braid Grey LSHF Dca s1a d2 a1 Datasheet Get Quote
Description 5 x 35mm² Niltox LF-329 LSHF LiYCY Dual Screened Control Multicore Grey Colour Coded
No. Cores 5
mm² 35
Screen Overall Foil & Braid
Colour Grey
Sheath LSHF
CPR Class Dca s1a d2 a1
Downloads Niltox LF 329 Colour Coded Class Dca s1a, d2, a1
Downloads Datasheet

Related Products



Opening Hours

8am to 6pm Monday to Friday

Phone: +44 1727 840 841

Fax: +44 1727 840 842

FS Cables Ltd

©2020 All rights reserved
Secure payments managed by SagePay.
Feefo logo
